QZB Spherical Rotor Pump Series Long Service Life, Safe And Reliable
QZB Spherical Rotor Pump Series Long Service Life, Safe And Reliable
QZB Spherical Rotor Pump Series Long Service Life, Safe And Reliable
QZB Spherical Rotor Pump Series Long Service Life, Safe And Reliable
Specifications
Brand Name :
Chenglong
Model Number :
QZB
Place of Origin :
China
MOQ :
1 unit
Price :
Consultation
Supply Ability :
50,00pcs/Month
Packaging Details :
Wooden box packaging or as per customer requirements
Name :
QZB Spherical Rotor Pump Series
Product brand :
Cheng Long
Pressure :
0.6Mpa
Rotational speed :
350r/min
Weight :
112kg
Overall dimension :
900x400x470
Description

Product Description

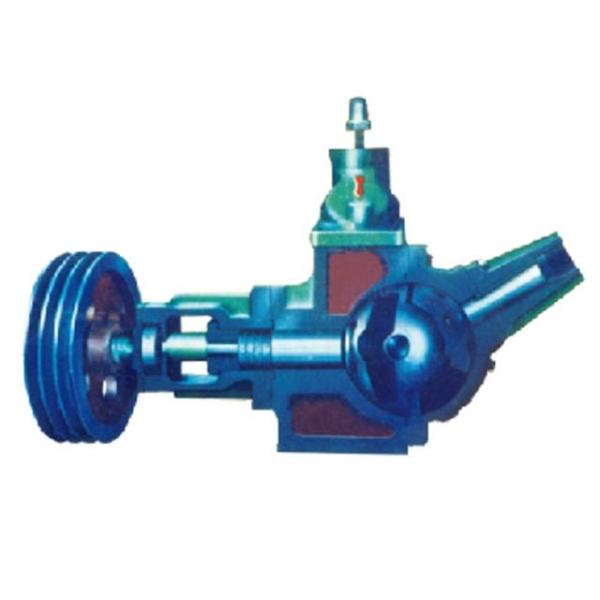

QZB Spherical Rotor Pump Series

This series of pumps is based on the principle of universal joints. The freely moving universal joints are made into spherical shapes and enclosed within the spherical pump body. The spherical cavity universal joints form four consecutive working cavities for suction and discharge. By the successive opening and closing of these four cavities, the work of suction and delivery of materials is completed

Due to its unique design structure, this pump does not have the troubles caused by gear blade collectors and the like. It operates without contact or friction, has a compact structure, low noise, no leakage, energy saving, wide practicality, safe and reliable use, convenient maintenance and a long service life. This pump can not only adapt to the transportation of general lubricating liquids, but is particularly suitable for the transportation of flammable, explosive and high-viscosity media. It can also adapt to the transportation of diluted solvents, with a temperature range of ≤250°C

Main technical specifications and parameters

QZB Spherical Rotor Pump Series Long Service Life, Safe And Reliable

Note: 1. Stainless steel is indicated by adding "R" after the model number
The weight of the two pumps refers to the weight of a single pump and its base, excluding the weight of the motor used with it
