GFJ-H Multi-Purpuse Kettle Series Used In The Production Of High-Viscosity Coatings
GFJ-H Multi-Purpuse Kettle Series Used In The Production Of High-Viscosity Coatings
Specifications
Brand Name :
Chenglong
Model Number :
GFJ-H
Place of Origin :
China
MOQ :
1 unit
Price :
Consultation
Supply Ability :
50,00pcs/Month
Packaging Details :
Wooden box packaging or as per customer requirements
Applicable to :
All kinds of thick coatings
Structural features :
There is no resonance phenomenon when the double-shaft concentric type is stirred
Name :
GFJ-H Multi-purpuse Kettle Series
Product brand :
Cheng Long
customized support :
OEM, ODM
Production specifications :
10 cubic meters - 40 cubic meters
Description

Product Description

GFJ-H Multi-purpuse Kettle Series

It is mainly used in the production of various thick coatings and high-viscosity coatings (including: elastic coatings, textured coatings, base materials, etc.)

Structural features

There is no resonance phenomenon when the double-shaft concentric type is stirred. High-speed dispersion and slow mixing are integrated. The high-speed shaft can be raised and lowered, while the slow-speed shaft can scrape walls. The stirring system can deaerate under negative pressure vacuum

GFJ-H Multi-Purpuse Kettle Series Used In The Production Of High-Viscosity Coatings

GFJ-H Multi-Purpuse Kettle Series Used In The Production Of High-Viscosity Coatings

Main technical specifications and parameters

Technical/Specification GFJ-H-2 GFJ-H​-3 GFJ-H​-5 GFJ-H​-10
Model/Power(kw) 22/4 45/5.5 75/7.5 110/11
Volume of tank(L) 2000 3000 5000 10000
Lifting stroke(mm) 600 800 800 1000
Overal dimension(Length * Width * Height mm) 1600*2100*3500 1800*2300*3800 2000*2500*4200 2500*2800*5600
Weight of equipment(kg) 2300 2900 3500 5600

Note: Please specify your usage requirements when placing an order. We can design and manufacture according to your requirements.

Our company

GFJ-H Multi-Purpuse Kettle Series Used In The Production Of High-Viscosity Coatings

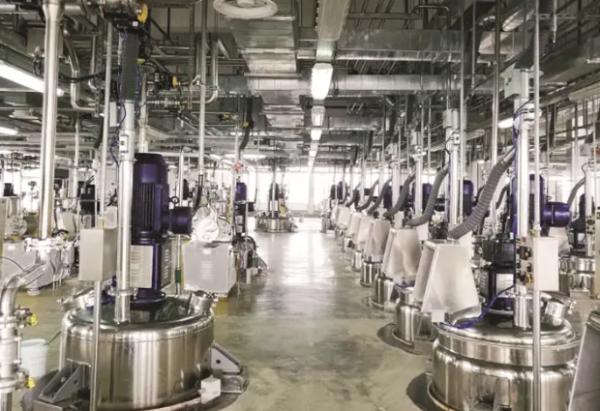

A corner of the workshop
