Product Description:

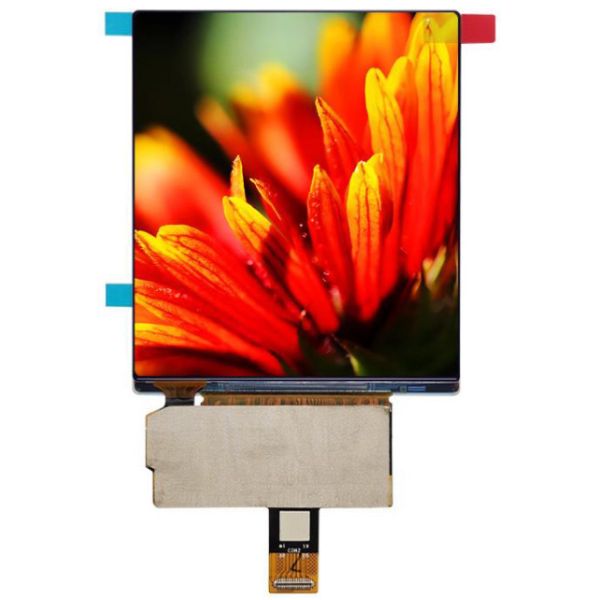

		The CH400OL001A is a high-performance 4 inch AMOLED display module (specifically 3.92") designed to serve as a space-saving display solution for advanced Human-Machine Interface (HMI) control panels. With a native 1080x1240 resolution, this module offers an incredible pixel density, ensuring that complex industrial icons, detailed status charts, and high-definition UI elements are rendered with absolute precision.
		As an Active Matrix OLED panel, it provides self-emissive technology that guarantees deep blacks and a high contrast ratio, crucial for legibility in various lighting conditions found in smart home and industrial environments. The module is integrated with the CH*** driver IC and FT*** touch IC, facilitating responsive and intuitive touch interactions . For hardware engineers, the MIPI 4-lane interface allows for high-speed data throughput, supporting fluid animations and real-time data updates without the bulk of traditional parallel interfaces .

Features:

• Superior 1080x1240 HD Clarity: Provides high-definition visualization for intricate control interfaces and detailed data monitoring.
• Responsive FT*** Capacitive Touch: Features a high-sensitivity touch panel for reliable and smooth multi-touch HMI operation .
• Ultra-Slim 1.2mm Profile: One of the thinnest 4 inch AMOLED display modules in its class, ideal for compact and portable hardware design.
• Wide "Free" Viewing Angle: AMOLED technology ensures consistent visual performance from all angles, critical for wall-mounted or desktop control panels.

Technical Parameters:

Customization:

Chenghao Optoelectronic operates state-of-the-art production bases in Shenzhen, Yongzhou, and Pingxiang, totaling 101,500 m², allowing us to offer flexible customization for the CH400OL001A:

• FPC Design: Tailored Flex Printed Circuit (FPC) shapes and pin definitions to match specific HMI controller boards.
• Touch Panel Enhancements: Custom cover lens thickness, specialized coatings (AG/AR/AF), and logo printing for brand consistency.
• Optical Bonding: Full-bonding (OCR/OCA) services to improve outdoor readability and structural durability of the HMI assembly.
• Backlight & Driver Adjustments: Optimization of driving parameters for specific power efficiency or brightness requirements.

Support and Services:

With a production capacity of 10KK-13KK pieces per month and a team of 125 engineers, we provide end-to-end support for your HMI projects:

• Engineering Consultation: Direct technical assistance for MIPI signal debugging and hardware integration from our 8-person R&D team.
• Quality Commitment: Production takes place in Class 100/1000 clean rooms, ensuring the highest optical purity and product reliability.
• Supply Chain Stability: We offer long-term availability for industrial-grade products, minimizing the risk of redesigns for our clients.
• Global Compliance: All modules are certified under ISO standards and meet RoHS environmental requirements.

FAQ:

Q: Why is the CH400OL001A referred to as a "space-saving" solution?

A: Because it utilizes AMOLED technology which requires no backlight, allowing for a 1.2mm max thickness, and features a high-density 1080x1240 resolution on a small 3.92" footprint.

Q: Can I integrate this module into a smart home hub?

A: Absolutely. Its high resolution and integrated FT3519 capacitive touch make it perfect for high-end smart home interfaces.

Q: Is technical documentation available for the MIPI interface?

A: Yes, we provide full datasheets and initialization codes to support your engineering team during the development phase.
