Product Description

This 2.4 inch IPS TFT LCD display module delivers 320 x (RGB) x 480 resolution with SPI and RGB interface options. It provides a typical brightness of 950 cd/m2 for sunlight readable performance, an all view direction of 80/80/80/80, and a wide operating temperature from -20 to +70 degrees Celsius. The module adopts an IPS transmissive normally black display mode and is equipped with a custom cover glass and AG plus AF surface treatment. It uses a 50 pin FPC and supports storage from -30 to +80 degrees Celsius. No touch function is required for this configuration, making it suitable for outdoor industrial HMI panels, medical equipment, and instrumentation terminals where stable readability and reliable long term supply are essential.

Product Features

• High brightness of 950 cd/m2 delivers sunlight readable performance for outdoor use.
• IPS transmissive normally black mode with 80/80/80/80 viewing direction keeps image quality consistent from every angle.
• Wide operating temperature from -20 to +70 degrees Celsius ensures reliable operation in harsh environments.
• Custom cover glass with AG plus AF surface treatment reduces reflection and protects the display in embedded equipment.

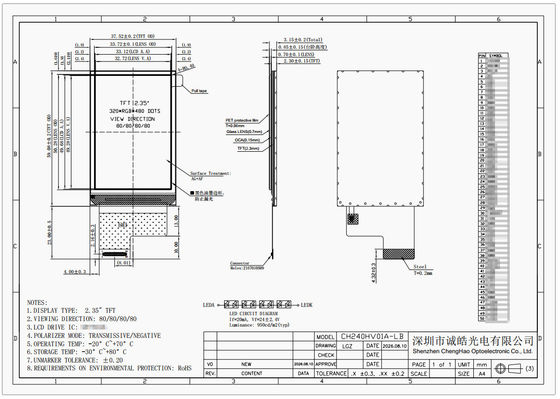

Product Drawing

Detailed Specifications

Customized Introduction

Chenghao provides customized display module services for TFT LCD modules, mono LCD displays, color OLED modules, and mono OLED modules. Customization covers FPC layout and pin configuration, interface selection including SPI, MCU, RGB, MIPI, LVDS, EDP and HDMI, brightness levels from standard 200 to 300 cd/m2 up to high brightness above 500 cd/m2, capacitive touch, resistive touch, or no touch options, anti glare surface treatment, and glass cover design with customized thickness, shape, color, and silk printing. This 2.4 inch IPS module demonstrates a custom cover glass with AG plus AF treatment, and similar customization is available for customer projects with short lead time and stable mass production quality.

Application Cases

• Outdoor industrial HMI panels: The 950 cd/m2 brightness and wide viewing direction keep the interface readable under direct sunlight and from different operator positions.
• Medical equipment: The wide operating temperature range and stable long term supply support reliable performance in diagnostic instruments and patient monitoring terminals.
• Instrumentation terminals: The SPI and RGB interfaces simplify integration with measurement and control boards, while the custom cover glass protects the display in compact housings.
