Vertical Sliding Sash Opening Besopke Ductless Fume Cupboard Supply Airflow Velocity 0.3-0.6m/s for Airflow and Airflow

The series of ductless fume hoods of Besopke Ductless Fume Cupboard Supply have passed the ISO9001 certification of the International Organization for Standardization. It is specially designed to protect the safety of laboratory personnel during experimental operations. It can prevent operators from inhaling toxic, harmful, pathogenic or unknown chemicals during experiments, purify the air in fume hoods and laboratories, and provide safety protection for laboratory personnel.

Ductless fume hood of Besopke Ductless Fume Cupboard Supply Functions :

1. Product features: Metal components: Main materials & germanium; 1.2mm galvanized steel sheet, electrostatically sprayed with epoxy resin, coated with a durable lead-free chemical resistant coating, maintaining high gloss and minimizing the impact of corrosion and moisture

2. Front and side panels: Main material is 6mm acrylic sheet, which has excellent weather resistance, outstanding chemical resistance, is not prone to aging, is colorless and transparent, visually comfortable, and elegant

3. 7-inch LCD touch screen display, high-definition screen resolution 1024*600, visual system

4. Real-time temperature and humidity environment monitoring system, displaying temperature and humidity, setting alarm parameters to ensure the safe use of the product

5. Fan monitoring: Alarm for fan system failures, online adjustment of fan speed to ensure the air volume required for the operation of different chemicals

6. Filter saturation alarm system: The filter is set with a saturation alarm value. When the value exceeds the range, an alarm will be triggered, corresponding to the concentration level of volatile organic compounds. When both the alarm and concentration levels are at high levels, the filter needs to be replaced.

7. American imported PSC fan, 24 volts, stable performance, ultra-quiet, no spark or static electricity

8. The filtration system is arranged and distributed based on particle size selection, following the American material testing standards. It is effective for acidic gases and organic gases, with strong adsorption capacity. The HEPA filter has a filtration efficiency of 99.995% for particles larger than 0.3um

9. The power of the LED lighting lamp is equivalent to that of a 25W fluorescent lamp. It does not generate heat, is safe and does not affect the temperature of the experimental environment. It is energy-saving, environmentally friendly and has a long service life.

Epoxy resin desktops feature excellent chemical stability, outstanding corrosion resistance, good impact resistance without damage, superior high-temperature resistance, integral core penetration, long service life, no delamination, no expansion, and no cracking.

The ductless clean air fume hood has excellent performance

1. No need to install pipeline engineering, easy to install, no exhaust gas emissions, brand new and environmentally friendly

2. The top can be equipped with a filtering module system according to the experimental requirements to meet various experiments.

3. Advanced modular filtration technology fully adsorbs and filters harmful gases, particulate dust and other substances generated during experiments

4. No need to consume air conditioning energy, saving energy

5. It can be placed on a desktop or equipped with mobile wheel seats, which is convenient and flexible, and suitable for any complex experimental site

The working principle of the ductless fume hood of Besopke Ductless Fume Cupboard Supply :

1. Air intake

Air can be directly pumped from the laboratory into the fume hood to create negative pressure. The stable surface wind speed forms a natural barrier, isolating users from the chemicals they handle.

2. Comprehensive filtration system

The fan system sucks in toxic and harmful gases upwards, filters them and then returns clean air to the room. The cabinet's excellent concentration control ensures that the chemical gases inside the cabinet will not return to the room and cause pollution.

3. Clean the air in the laboratory

Different filters should be configured according to different operations to effectively filter out toxic and harmful gases, purify the laboratory air, remove the residual odor of chemicals, and improve the cleanliness of the laboratory

4. Purify the ambient air

The continuous filtration efficiency of fume hoods helps purify indoor air.

Features

1. Security: - control concentration and filtration efficiency in accordance with the European Union CE international standard. - one-piece filter system, effective filtering poisonous and harmful gases. - provide double protection operation for personnel and lab environment.

2. Easy installation: - delivered cabinet has complete assembly, come to service directly. - no need to connect external pipe, can be moved flexibly, you can place it on any floor conveniently. - no need to configure air compensating system.

3. The energy conservation and environmental protection: - no exhausted air flow outdoor, saving the energy consumption of air conditioning. - no pollution emissions, protect the environment. - low power consumption, do not use high power components.

4.Cost savings: - no causing extra pipe installation cost. - no need exhausted air and air compensating system installation. - very low running cost. 5.Filter level / filter efficiency: -HEPA: ≥99.995%, @0.3μm/ULPA: ≥99.999%, @0.12μm

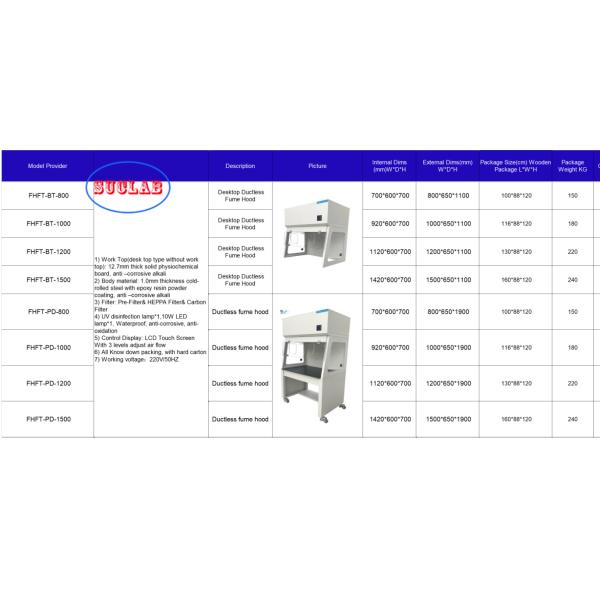

Technical Parameters:

Applications:

The SUCLAB Ductless Fume Hood, model HZJ 025, originating from China, is a cutting-edge solution for various laboratory environments. Its power supply of 220V/50Hz ensures reliable performance, making it suitable for conducting experiments in labs.

Designed for efficiency and convenience, the worktop of this fume hood is made of Phenolic Etc., providing a sturdy surface for experiments. With a noise level of ≤60dB, it ensures a quiet working environment, enhancing focus and productivity.

The filtering efficiency of the SUCLAB Ductless Fume Hood exceeds 99.9%, ensuring a safe and clean workspace for researchers and scientists. This high level of filtration is crucial for maintaining a healthy lab environment and preventing the spread of contaminants.

Whether you are in need of Ductless Fume Hoods sourcing for your laboratory, interested in partnering with a Ductless Fume Hoods Inc, or looking to establish a direct relationship with a Ductless Fume Hoods Factory, the SUCLAB Ductless Fume Hood model HZJ 025 is a top choice. Its advanced features, reliable performance, and efficient design make it a valuable asset for any lab setting.

Customization:

Looking for Ductless Fume Hoods Sourcing? SUCLAB offers customized Ductless Fume Hoods PRODUCTS with a range of options to meet your specific needs.

Brand Name: SUCLAB

Model Number: HZJ 025

Place of Origin: CHINA

Control System: LCD Touch Screen

Noise Level: ≤60dB

Filter Efficiency: ≥99.99%

Worktop: Phenolic Etc.

Power Supply: 220V/50Hz

FAQ:

Q: What is the brand name of this ductless fume hood of Besopke Ductless Fume Cupboard Supply?

A: The brand name of this ductless fume hood is SUCLAB.

Q: What is the model number of this ductless fume hood?

A: The model number of this ductless fume hood is HZJ 025.

Q: Where is this ductless fume hood manufactured?

A: This ductless fume hood is manufactured in China.

Q: What are the key features of the SUCLAB HZJ 025 ductless fume hood?

A: The key features of this model include advanced filtration technology, adjustable airflow settings, and a compact design.

Q: Is installation assistance provided with the purchase of the SUCLAB HZJ 025 ductless fume hood?

A: Yes, installation assistance is available upon request when purchasing the SUCLAB HZJ 025 ductless fume hood.
