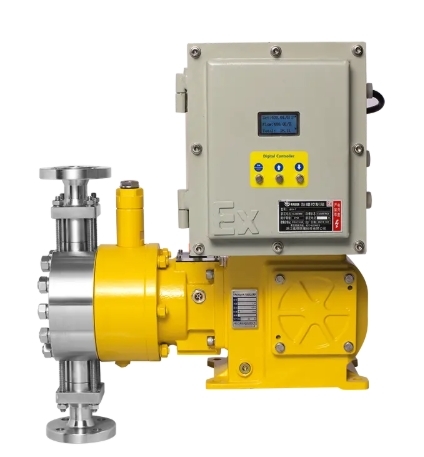

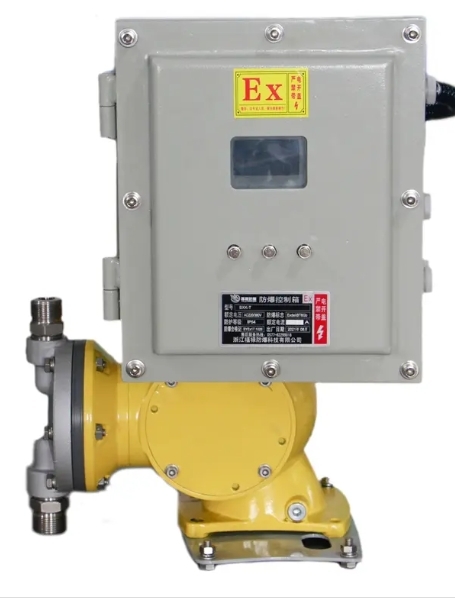

DM/JM Series Digital Metering Pumps
DM/JM Series Digital Metering Pumps
DM/JM Series Digital Metering Pumps
DM/JM Series Digital Metering Pumps
Specifications
Temperature range :
-10°C to 80°C
Power supply :
220V/50Hz
Drive type :
Electric Motor
Sealing type :
Mechanical Seal
Product name :
Plunger Metering Pump
Application :
Chemical dosing, water treatment
Accuracy :
±1%
Material :
Stainless Steel
Description
DM/JM Series Digital Metering Pumps
Product Overview

DM/JM Series Digital Metering Pumps feature modular-designed hardware and software for precise digital control. These pumps are compatible with mechanical diaphragm, plunger, and hydraulic diaphragm metering pumps and can meet explosion-proof requirements. With simple mechanical structure and easy installation & maintenance, they integrate multiple intelligent functions for broad application coverage.

The JM Series features a large-size high-definition backlit LCD with keypad operation, while the DM Series offers touch-screen HMI for enhanced convenience. Building on JM Series functions, the DM Series supports pressure and liquid-level monitoring & alarm, plus high-precision metered dosing in timing and cyclic operation modes.

Technical Parameters
Flow Range Plunger & hydraulic-diaphragm types: Qmax=45m³/h
Pressure Range Plunger type: Pmax=50 MPa
Hydraulic-diaphragm type: Pmax=70 MPa
Electrical Parameters AC 220/380 V, single-phase / three-phase, 50/60 Hz
Explosion-proof grade optional
Wetted-end Materials 304, 316L, PVDF, 904, 2205, TA, Hastelloy-C, etc.
Key Features
  • Innovative drive structure delivers outstanding performance with high precision and reliability
  • Optional pump-head materials: PVDF, PVC, 316L, 304
  • Modular design, compatible with diaphragm, plunger and hydraulic-diaphragm pumps
  • Modular design, suitable for explosion-proof environments
  • Steady-state accuracy and repeatability accuracy up to ±1%
  • 1000:1 flow turndown ratio with superior linear flow accuracy
  • 4-20 mA analog signal input & output for flow adjustment
  • Pulse-signal control and regulation
  • Manual / Automatic, Remote / Local control modes
  • Flow calibration capability
  • External pressure & liquid-level input for control and protection
  • Timed & quantitative batch dosing
  • Multiple universal serial ports with Modbus RTU communication support
  • Human-machine interface: Touch-screen HMI / High-definition backlit LCD
