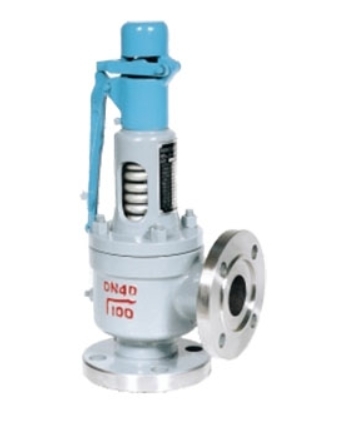

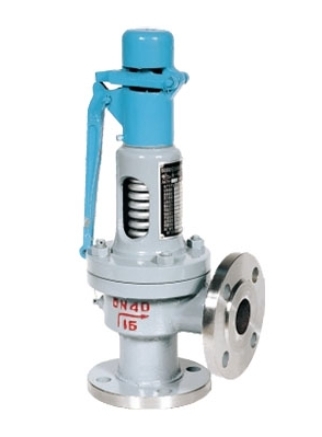

Full Lift Safety Valve with Lifting Wrench
Full Lift Safety Valve with Lifting Wrench
Full Lift Safety Valve with Lifting Wrench
Full Lift Safety Valve with Lifting Wrench
Specifications
Supply Ability :
10000
Flange standard :
JB/T-94 series 1 (<6.4MPa), series 2 (>6.4MPa)
Working temperature :
Less than 350℃ (A48Y), less than 300℃ (A44Y)
Medium :
Steam, air (A48Y); air, petroleum gas (A44Y)
Pressure range :
Up to 6.4MPa
Connection type :
Flange
Valve type :
Full lift safety
Model Number :
Contact the manufacturer
MOQ :
1
Delivery Time :
20-30 days
Brand Name :
Fast
Place of Origin :
china
Price :
1000
Packaging Details :
Wooden box
Description

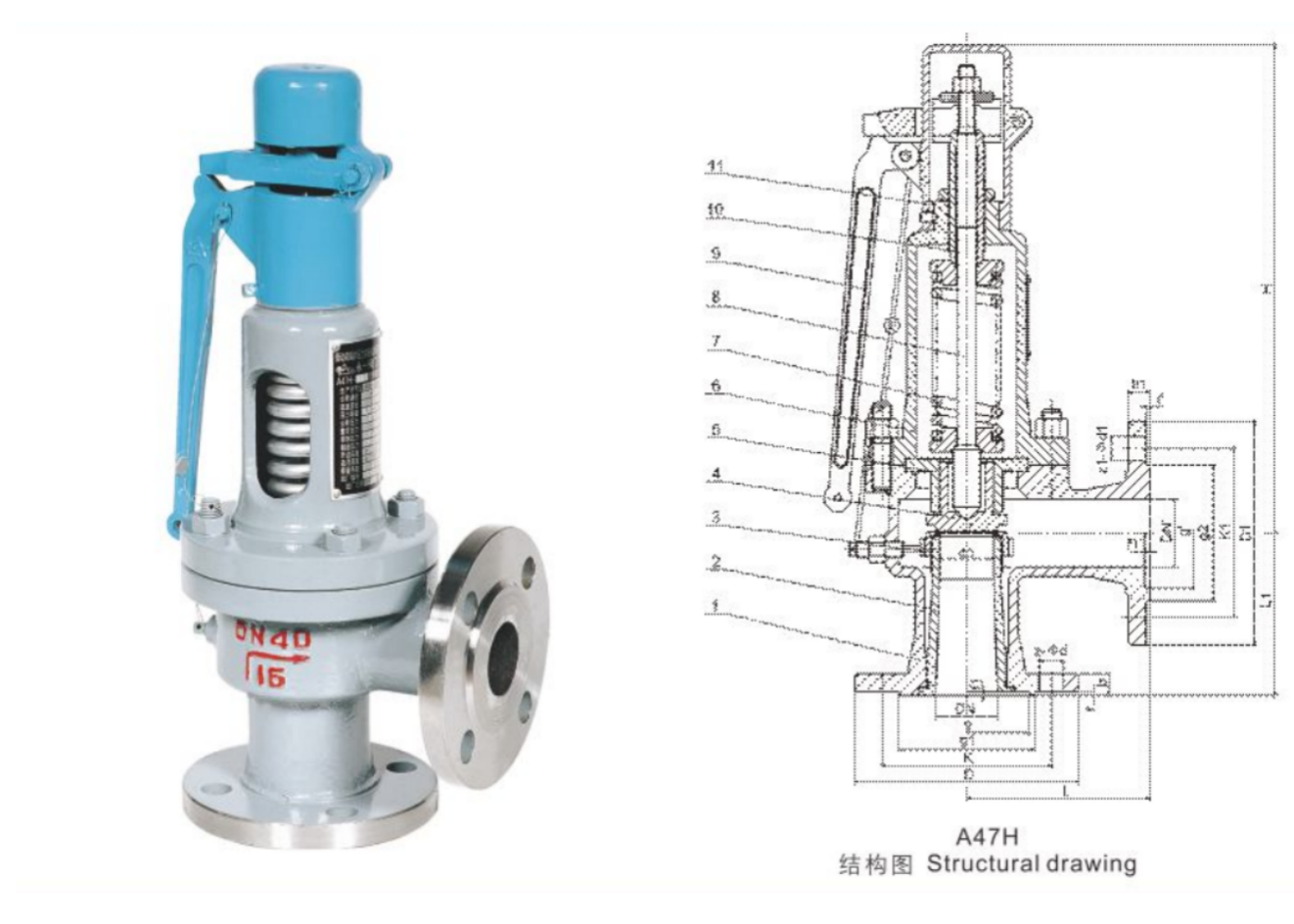

Full Lift Safety Valve with Lifting Wrench
Full Lift Safety Valve with Lifting Wrench
Applications & Specifications
A48Y Type: Designed for equipment and pipelines handling steam, air, and similar media with working temperatures up to 350℃
A44Y Type: Suitable for equipment and pipelines handling air and petroleum gas with working temperatures up to 300℃
Both valve types serve as essential overpressure protection devices, ensuring operational safety and equipment integrity in industrial applications.
Flange Connection Standards
Flange connecting dimensions comply with industry standards:
  • Pressure ≤ 6.4MPa: Complies with Standard Series 1 of JB/T-94
  • Pressure > 6.4MPa: Complies with Standard Series 2 of JB/T-94
