Digital Metering Pump
Digital Metering Pump
Digital Metering Pump
Digital Metering Pump
Digital Metering Pump
Digital Metering Pump
Digital Metering Pump
Digital Metering Pump
Specifications
Price :
1000
Supply Ability :
10000
Maximum Pressure :
1.0 Mpa
Repeatability Accuracy :
±1%
Diaphragm Material :
PTFE (Flow Port Surface)
Pump Head Material :
PVDF, 316 (Selection: PVC/PTFE)
Place of Origin :
china
MOQ :
1
Packaging Details :
Wooden box
Brand Name :
Fast
Flow Range :
170 - 2000 L/H
Electricity :
220V, Single Phase, 50/60 Hz
Model Number :
Contact the manufacturer
Delivery Time :
20-30 days
Description

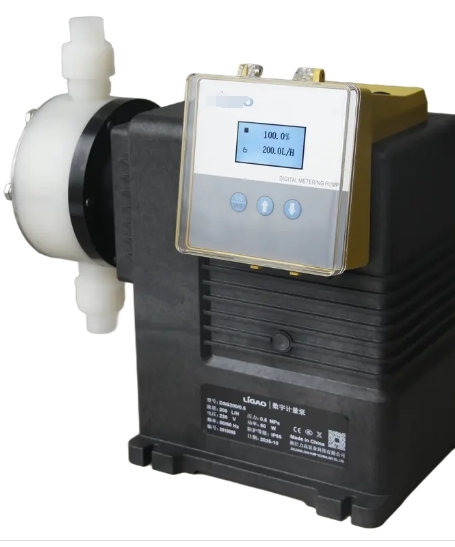

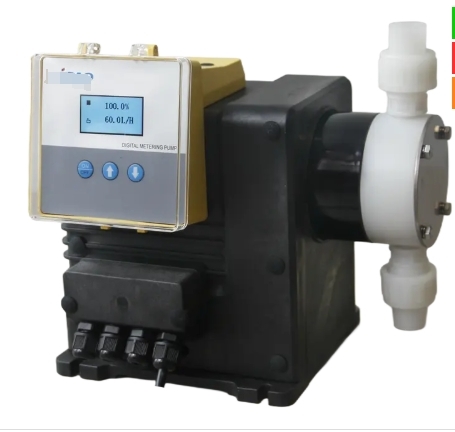

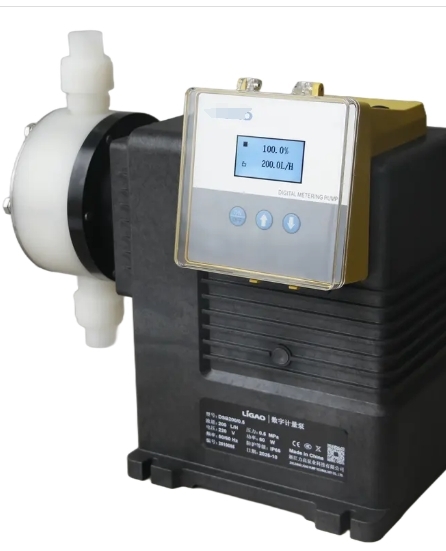

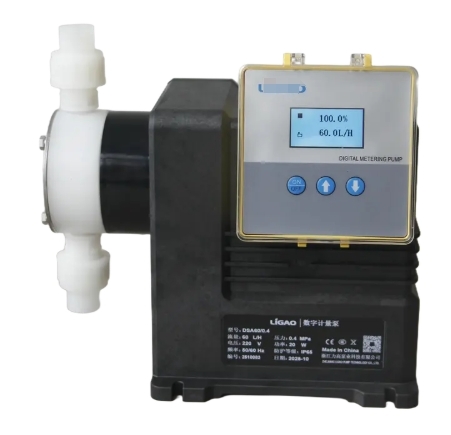

Digital Metering Pump
Digital Metering Pumps - The Optimal Choice for Precise Dosage

Our company's newly developed intelligent DM series digital metering pumps offer customers an intelligent solution for precise chemical dosing. The mechanical structure is simple, and installation and maintenance are convenient. The unique drive design makes flow control simple and precise.

The pump integrates multiple intelligent designs and controls factors such as flow, level, pressure, and time. Through the integrated microprocessor, it performs automated calculations and feedback. The user-friendly touch screen human-machine interface system makes operation more convenient.

Product Specifications
Model DMB/DMC Digital Metering Pump
Flow Range 170 - 2000 L/H
Maximum Pressure 1.0 Mpa
Diaphragm Material PTFE (Flow Port Surface)
Pump Head Material PVDF, 316 (Selection: PVC/PTFE)
Electricity 220V, Single Phase, 50/60 Hz
Technical Features
  • Unique drive structure, simple in design, precise and reliable
  • Material of the pump head is selectable: PVDF/316
  • Wide flow regulation range, high linear accuracy of flow
  • Repeatability accuracy up to ±1%
  • Adjustment of analog signal 4-20mA input and output
  • Pulse signal regulation range 999:1 - 1:999
  • External start/stop control
  • Level control - pump stops when liquid level is low and alarms
  • Timed and quantified dosing batch processing
  • External pressure input control protection
  • Diversified universal serial ports to meet automation requirements
  • Touch screen human-machine interface for convenient operation
