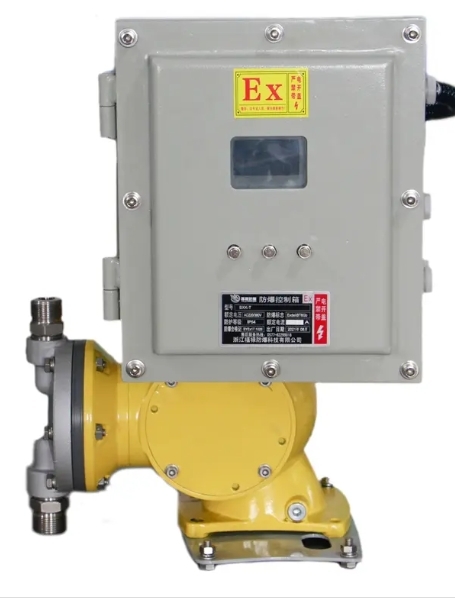

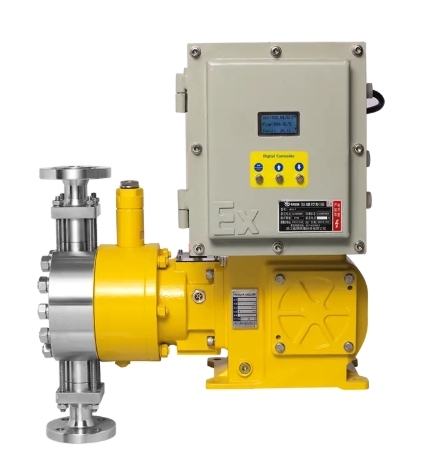

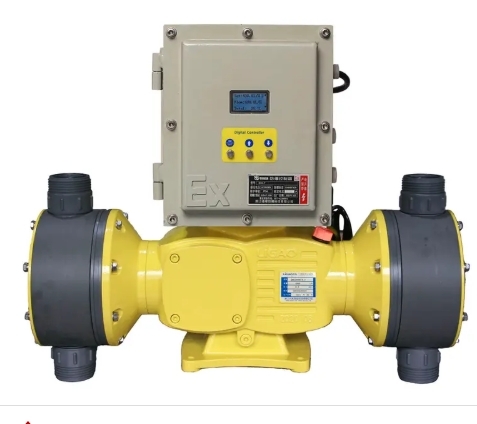

Digital Plunger / Hydraulic Diaphragm Metering Pump
Digital Plunger / Hydraulic Diaphragm Metering Pump
Digital Plunger / Hydraulic Diaphragm Metering Pump
Digital Plunger / Hydraulic Diaphragm Metering Pump
Digital Plunger / Hydraulic Diaphragm Metering Pump
Digital Plunger / Hydraulic Diaphragm Metering Pump
Specifications
Price :
1000
Overcurrent end material :
304/316L, PVDF, 904, 2205, TA, Hastelloy C
MOQ :
1
Pressure range :
Pmax = 50 Mpa (piston), Pmax = 70 Mpa (hydraulic diaphragm)
Delivery Time :
20-30 days
Flow regulation ratio :
1000:1
Model Number :
Contact the manufacturer
Stability accuracy :
±1%
Place of Origin :
china
Packaging Details :
Wooden box
Flow range :
Qmax = 45 m³/h
Brand Name :
Fast
Electrical parameters :
AC 220/380V, single phase/trip phase, 50/60Hz
Supply Ability :
10000
Description
Digital Plunger / Hydraulic Diaphragm Metering Pump
The DM/JM series digital metering pumps feature a modular design for digital control software and hardware, applicable to a full range of metering pump products including mechanical diaphragm, piston, and hydraulic diaphragm types. These pumps can meet explosion-proof requirements and integrate multiple intelligent designs for wide application scope.
Technical Specifications
Parameter Specification
Flow Range Piston, hydraulic diaphragm type Qmax = 45 m³/h
Pressure Range Piston type Pmax = 50 MPa, hydraulic diaphragm type Pmax = 70 MPa
Electrical Parameters AC 220/380V, single phase/three phase, 50/60Hz, optional explosion-proof grade
Overcurrent End Material 304/316L, PVDF, 904, 2205, TA, Hastelloy C, etc.
Stability Accuracy Reproducibility accuracy can reach ±1%
Flow Regulation Ratio 1000:1 with high linear accuracy
Key Features
  • Innovative structure with excellent performance and precision reliability
  • Pump head materials selectable: PVDF/PVC/316/304
  • Modular design suitable for diaphragm, piston, and hydraulic diaphragm pumps
  • Applicable to explosion-proof scenarios
  • Adjustment analog signal 4-20mA input/output
  • Pulse signal control adjustment
  • Manual/Automatic, remote/Local control modes
  • External pressure and liquid level input control protection
  • Timed and quantitative dosing batch processing
  • Diversified universal serial ports supporting Modbus RTU communication
  • Human-machine interface: touch screen HMI or backlit high-definition LCD
Control Options
The JM series metering pumps use a large-screen high-definition backlit LCD with key operation, while the DM series uses a touch-based human-machine interface (HMI). The DM series provides enhanced capabilities including pressure and level monitoring, alarm functions, and precise metering in various modes such as timing and cycling.
