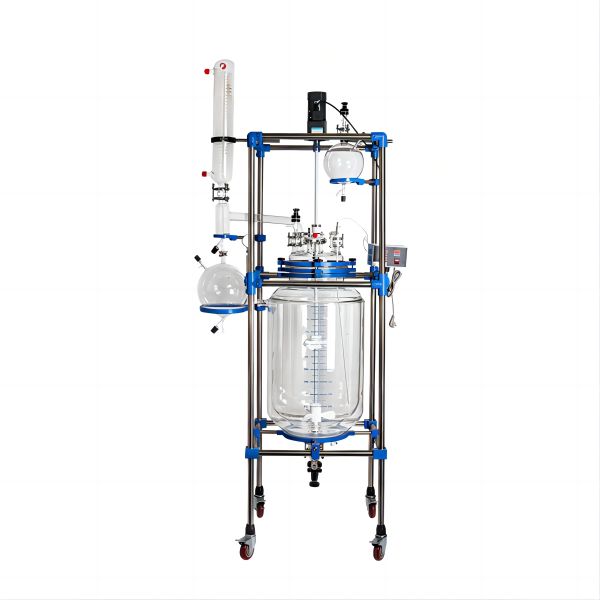

80L-100L Double Layer Jacketed Chemical Glass Reactor
80L-100L Double Layer Jacketed Chemical Glass Reactor
Specifications
Capacity :
80L-100L
Automatic Grade :
Automatic
Type :
Reaction Kettle
Core Components: :
Engine, Motor
Glass Material: :
High Borosilicate Glass 3.3
Working Temperatur: :
-350
Heating Method: :
Thermal Oil Heating
After Warranty Service: :
Online support
Product Modle :
PGR-100
Volume(L) :
100
Neck No.on Cover :
6
External Diameter of Inner Vessel(mm) :
465
External Diameter of Outer Vessel(mm) :
500
Cover Diameter(mm) :
340
Vessel Height(mm) :
950
Motor Power(w) :
250
Vacuum Degree(Mpa) :
0.098
Rotation Speed(rpm) :
50-600
Torque(Nm) :
3.98
Power(V) :
220
Diamension(mm) :
1000*700*2700
Description
Double Layer Jacketed Chemical Glass Reactor

Double Layer Jacketed Chemical Glass Reactor

Precision Control for Advanced Chemical Synthesis and Reactions

A double layer jacketed chemical glass reactor is a sophisticated apparatus designed to precisely control and execute chemical reactions. Featuring an inner vessel, an outer jacket for efficient temperature regulation, and robust construction, this reactor provides a stable and adaptable environment for a wide range of chemical processes. Its primary function is to ensure reactants are combined and manipulated under optimal, specified conditions, leading to predictable and desired outcomes in chemical synthesis.

  • Precise Temperature Control: The jacketed design allows for accurate heating or cooling, crucial for reaction kinetics and product purity.
  • Versatile Application: Suitable for a broad spectrum of chemical reactions, including synthesis, distillation, and crystallization.
  • Robust Construction: Built with high-quality materials for durability and long-term performance in demanding laboratory and industrial settings.
  • Safe Operation: Engineered for secure operation with features to manage pressure and vacuum effectively.
  • Enhanced Yield & Purity: Optimized reaction conditions contribute to higher product yields and improved purity.

Target Industries & Applications

Pharmaceutical Synthesis
Chemical Research & Development
Biotechnology
Fine Chemical Manufacturing
Material Science

Product Attributes

Brand
Not Specified
Origin
Not Specified
Material
High Borosilicate Glass 3.3
Color
Clear Glass
MOQ
Not Specified
Packaging & Delivery
Not Specified

Technical Specifications

Model Capacity (L) Vacuum Degree (Mpa) Motor Power (W)
PGR-80 80 0.098 250
PGR-100 100 0.098 250
Model Volume Range (L) Rotation Speed (rpm) Torque (Nm)
PGR-80 / PGR-100 80L-100L 50-600 3.98
Model Power (V) Working Temperature Heating Method
PGR-80 / PGR-100 220 -350°C (Note: This value seems unusually low and might be a typo in the source data. Typically, working temperatures are positive. Please verify.) Thermal Oil Heating
Model Dimensions (mm) Core Components After Warranty Service
PGR-80 1000*700*2500 Engine, Motor Online support
PGR-100 1000*700*2700 Engine, Motor Online support
Model Neck No. on Cover External Diameter of Inner Vessel (mm) External Diameter of Outer Vessel (mm)
PGR-80 6 410 465
PGR-100 6 465 500
Model Cover Diameter (mm) Vessel Height (mm) Automatic Grade
PGR-80 340 950 Automatic
PGR-100 340 950 Automatic
