10L Borosilicate Glass Jacketed Glass Reactor with 220V Motor Power and Customizable Features for Pharmaceutical Industry
10L Borosilicate Glass Jacketed Glass Reactor with 220V Motor Power and Customizable Features for Pharmaceutical Industry
Specifications
Brand Name :
NTSJ
Model Number :
PGR-10
Certification :
ISO9001
Place of Origin :
Nantong, China
MOQ :
1 SET
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
100SETS/MONTH
Delivery Time :
5 working days
Packaging Details :
Polywood Case
Material :
Borosilicate Glass
Motor Power :
140W
Voltage :
220V
Lid Diameter :
265MM
Feature :
Customizable
Description

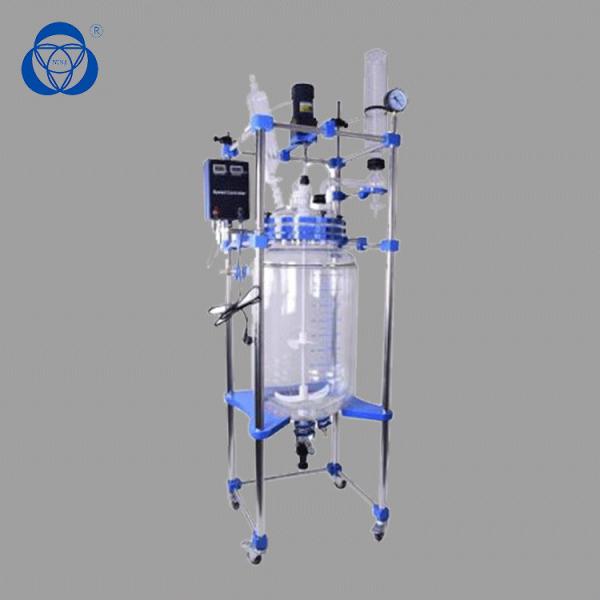

10L Jacketed Glass Reactor, Lab Glass Reactor For Pharmaceutical Industry
Product Overview
In chemical engineering, a jacketed vessel is a container designed for controlling temperature of its contents, using a cooling or heating "jacket" around the vessel through which a cooling or heating fluid is circulated. Agitation can be used in jacketed vessels to improve the homogeneity of fluid properties such as temperature or concentration.
Main Features
  • Full set of glass parts produced by G3.3 borosilicate glass, offering excellent chemical and physical properties
  • Constant rotate speed, no electric brush, no spark, safe and stable, enabling continuous working
  • Enables reaction under normal temperature; tap water connection can quickly remove reaction heat
  • Discharge outlet features flange mouth and PTFE valve with no dead angle in vessel, detachable and convenient for solid material discharge
  • Main body made from anti-corrosion stainless steel
  • Capable of working under normal and negative pressure, with negative pressure up to -0.098MPa
  • Alternating current dynamo conducts frequency control stirring, reliable operation, large moment of force and no spark
Customizable
Technical Specifications
Product Model Volume (L) Neck No. on Cover External Diameter of Inner Vessel (mm) External Diameter of Outer Vessel (mm) Cover Diameter Vessel Height (mm) Motor Power (w) Vacuum Degree (Mpa) Rotation Speed (rpm) Torque (Nm) Power (V) Dimension (mm)
PGR-3 3 4 150 200 150 300 40 0.098 50-1400 0.27 220 320*350*900
PGR-10 10 6 230 265 450 140 0.098 50-600 2.23 220 650*650*1900
PGR-50 50 6 365 410 265 850 140 0.098 50-600 2.23 220 800*600*2300
PGR-100 100 6 460 500 340 950 250 0.098 50-600 3.98 220 1000*700*2700
PGR-200 200 6 600 650 340 1200 750 0.098 50-600 6.37 220 1200*900*3200
Product Details
10L Borosilicate Glass Jacketed Glass Reactor with 220V Motor Power and Customizable Features for Pharmaceutical Industry 10L Borosilicate Glass Jacketed Glass Reactor with 220V Motor Power and Customizable Features for Pharmaceutical Industry
Packing and Delivery
Packaging
- Glass parts wrapped with foam and carton; main body portion packed in wooden cases
- Both neutral and customized packaging available
Shipping
- By International Express such as DHL, UPS, TNT, EMS and others
- Option to use your own shipping agent
10L Borosilicate Glass Jacketed Glass Reactor with 220V Motor Power and Customizable Features for Pharmaceutical Industry
Our Factory
Established in 2006, Nantong Sanjing Chemglass Co., Ltd. is a manufacturer and trader specialized in research, development and production of chemical glass instruments. Main products include glass reactor, wiped film evaporator, rotary evaporator, short-path molecular distillation device and chemical glass tube.
10L Borosilicate Glass Jacketed Glass Reactor with 220V Motor Power and Customizable Features for Pharmaceutical Industry
Our Service
1. Could you do customized for us?
We are a manufacturer that can provide all kinds of customized services.
2. How to ship replacement parts?
We will choose suitable shipping methods based on the actual situation. For small parts, we ship by Express.
3. How to solve equipment problems?
Please email us about the problem; pictures or a small video would be helpful. We will identify the problem and provide solutions. If there is broken equipment, we will send you a new part free of charge during the warranty period.
4. Warranty period, scope and conditions:
(1) We offer 1-year warranty from the shipping date from China. During warranty, we provide replacement and maintenance services for manufacturing and quality issues.
(2) Damage caused by transportation problems shall be borne by the seller.
