Product Description:

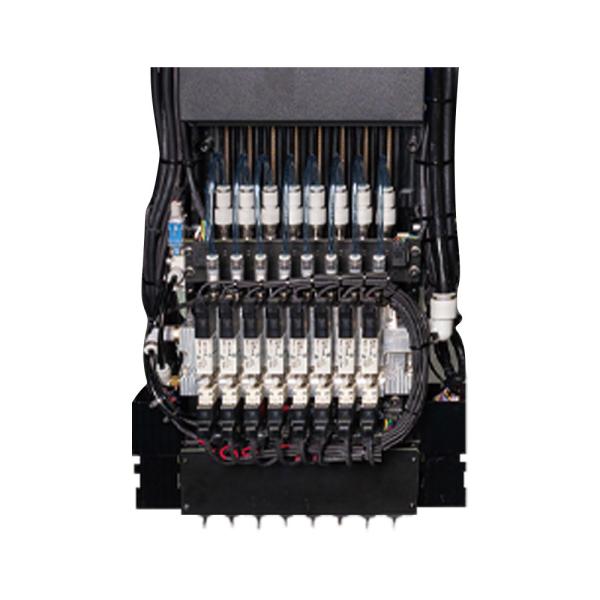

Weighing in at 1500kg, this machine is sturdy and reliable. The transmission system is made up of a ground screw and linear guide, ensuring smooth and precise movements. The system is also equipped with 8 mounting heads, which means that multiple components can be placed simultaneously, greatly reducing the assembly time.

One of the key features of this machine is its ability to handle a wide range of components. From the smallest 01005 components to larger BGA packages, this machine can handle it all. This ensures that your assembly process is streamlined and efficient, with minimal errors or delays.

The Automated Pick-and-Place System is designed with speed and accuracy in mind. The machine is equipped with advanced software and algorithms that ensure precise component placement every time. This means that your finished product will be of the highest quality, with minimal defects or errors.

In addition to its advanced features, the Automated Pick-and-Place System is also incredibly user-friendly. The machine is easy to set up and operate, even for those with minimal experience in PCB assembly. This means that you can start using the machine right away, without the need for extensive training or technical knowledge.

Overall, the Automated Pick-and-Place System is an excellent choice for anyone looking to streamline their PCB assembly process. With its advanced features, user-friendly interface, and wide range of capabilities, this machine is sure to provide you with the efficiency and accuracy you need to take your assembly process to the next level.

Features:

• Product Name: Automatic Pick And Place Machine
• Weight: 1500kg
• Pcb Size: 50mm X 50mm To 450mm X 350mm
• Transmission System: Ground Screw + Linear Guide
• Pcb Thickness: 0.6mm~3.5mm
• Component Range: 01005-BGA

This Automated Pick-and-Place System is capable of handling PCBs with sizes ranging from 50mm X 50mm to 450mm X 350mm, and PCBs with thicknesses from 0.6mm to 3.5mm. It features a transmission system that uses a ground screw and a linear guide to ensure precision and accuracy. With a weight of 1500kg, this machine can handle a component range of 01005-BGA.

Technical Parameters:

Applications:

One of the key benefits of the TM08 is its versatility. This pick-and-place system can accommodate PCBs ranging in size from 50mm x 50mm to 450mm x 350mm, making it suitable for a variety of production needs. Additionally, the TM08 can handle components ranging in size from 01005 to BGA, ensuring that even the smallest and most complex components can be accurately placed.

The TM08 is also incredibly easy to use. With its intuitive interface and user-friendly controls, operators can quickly learn how to operate the system and start using it to assemble PCBs. This system is also equipped with advanced features like automatic nozzle cleaning and automatic feeder calibration, which help to ensure that the system is always running at peak performance.

There are many different occasions and scenarios where the TM08 would be an ideal pick-and-place system. For example, it would be perfect for businesses that are looking to increase their production speed and efficiency, as well as those that are looking to improve the quality and accuracy of their PCB assembly process. The TM08 would also be a great choice for businesses that are looking to automate their assembly process and reduce the need for manual labor.

In terms of certifications, the TM08 is CE, FCC, RoHS, and SGS certified, which means that it meets all of the necessary safety and quality standards. Additionally, the TM08 is available for purchase with a minimum order quantity of 1 set and a negotiable price. The product is packaged in an export wooden box and can be delivered within 15 days after full payment. Payment terms are T/T and the supply ability is 20 sets. The dimensions of the TM08 are 1280mm x 1320mm x 1500mm, and it requires an air supply of 0.5MPa to 0.7MPa.

Customization:

Introducing our Automated Pick-and-Place System from Charmhigh - the TM08 model. This innovative product is designed and manufactured in China, and it comes with CE, FCC, RoHS, and SGS certifications. You can order as little as one set, and the price is negotiable. The product is shipped in export wooden boxes, and delivery time is within 15 days after full payment. Payment terms are T/T, and we have a supply ability of 20 sets.

The TM08 model has a built-in computer for its control system, and its dimensions are 1280mm x 1320mm x 1500mm. It requires an air supply of 0.5MPa ~0.7MPa. The feeding system consists of 80 NXT 8mm Standard Feeder Stacks.

Support and Services:

Our Automatic Pick And Place Machine product comes with comprehensive technical support and services to ensure maximum performance and minimal downtime. These services include:

• Installation and setup assistance
• Training for operators and maintenance personnel
• Regular maintenance and calibration services
• Remote diagnostics and troubleshooting
• On-site repairs and spare parts replacement
• Upgrades and updates to software and hardware

Our experienced technicians and engineers are available to answer any questions or concerns you may have about the product, and to provide prompt and efficient support whenever you need it.
