Product Description:

Our Automated Pick-and-Place System has a feeder capacity of 80, meaning you can load up to 80 different components at one time. This feature allows you to work on more products, and in turn, produce more units in less time. Additionally, this machine is capable of handling PCB thicknesses ranging from 0.6mm to 3.5mm, making it versatile enough for all your manufacturing needs.

The Automated Pick-and-Place System is designed to work with an air supply of 0.5MPa to 0.7MPa, making it easy to integrate into your current manufacturing set-up. You can easily connect it to your existing air supply and start using it right away.

With the Automated Pick-and-Place System, you can say goodbye to time-consuming and error-prone manual pick-and-place tasks. This machine automates the entire process, from picking up components to placing them on the PCB, ensuring that your products are assembled quickly and accurately.

Overall, the Automated Pick-and-Place System is a game-changer for any manufacturing business. Its advanced features and capabilities make it a must-have for any company looking to increase productivity and efficiency.

Features:

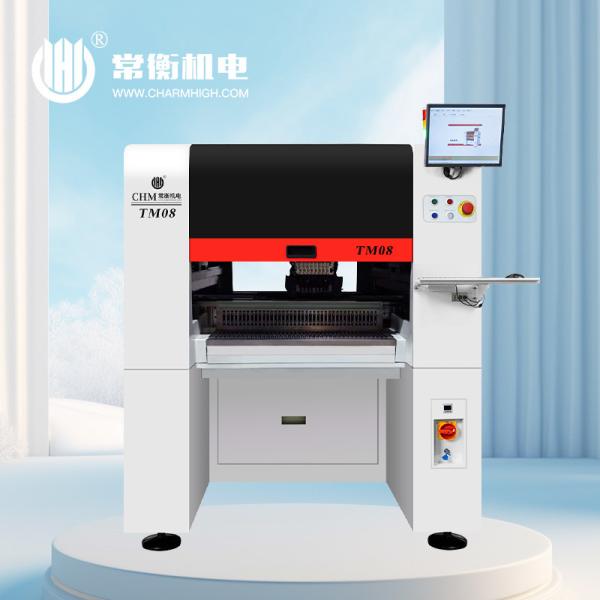

• Product Name: Automatic Pick And Place Machine
• Component Height: 12mm
• Air Supply: 0.5MPa ~0.7MPa

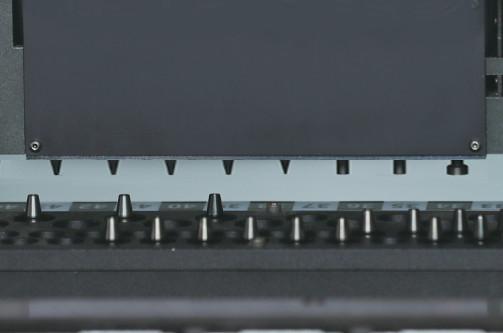

• Mounting Head Quantity: 8
• Model: Tm8
• Dimensions: 1280mm X 1320mm X 1500mm

Introducing our Automated Pick-and-Place System, the perfect solution for your manufacturing needs. With a component height of 12mm and air supply of 0.5MPa ~0.7MPa, this machine is designed to efficiently and accurately handle your assembly line needs. Featuring 8 mounting heads and the model Tm8, this system is capable of handling high-volume production while maintaining precision and accuracy. With dimensions of 1280mm X 1320mm X 1500mm, this Automated Pick-and-Place System is the perfect fit for your manufacturing floor.

Technical Parameters:

Applications:

The Charmhigh TM08 is a versatile machine that can be used in a variety of product application occasions and scenarios. It is capable of placing a wide range of components, from the smallest 01005 resistors to the largest BGA chips. This makes it ideal for use in the production of a wide range of products, including consumer electronics, automotive electronics, medical devices, and more.

The Charmhigh TM08 is a highly automated system that is designed to increase efficiency and reduce errors. It features a ground screw and linear guide transmission system that ensures accuracy and stability. The feeding system includes 80 NXT 8mm standard feeder stacks, which means that it can handle a large number of components at once. This reduces the need for manual intervention and helps to speed up the assembly process.

The Charmhigh TM08 is easy to operate and comes with a user-friendly interface. This makes it easy for operators to set up and program the machine, even if they have no prior experience with pick-and-place systems. The machine is also equipped with a range of safety features, including emergency stop buttons and safety doors, to ensure the safety of the operator.

The Charmhigh TM08 is supplied in an export wooden box to ensure that it arrives at its destination in good condition. The delivery time is within 15 days after full payment, and the payment terms are T/T. The minimum order quantity is 1 set, and the price is negotiable. The supply ability is 20 sets, so there is plenty of capacity to meet the needs of small to medium-sized electronics manufacturers.

The dimensions of the Charmhigh TM08 are 1280mm X 1320mm X 1500mm, which means that it can be easily accommodated in most manufacturing facilities. Overall, the Charmhigh TM08 is a highly automated pick-and-place system that is ideal for small to medium-sized electronics manufacturers who want to improve efficiency and reduce errors in their production processes.

Customization:

Support and Services:

The Automatic Pick and Place Machine is a cutting-edge piece of technology that requires proper technical support and services to ensure optimal performance. Our product technical support and services include:

- Installation and setup assistance to get your machine up and running smoothly.

- Regular maintenance and cleaning to keep your machine in top condition and prevent any potential issues.

- Troubleshooting and repair services to quickly address any problems and get your machine back to working order.

- Training and education resources to help you and your team fully understand and utilize all of the capabilities of the machine.

Our team of experts is dedicated to providing exceptional technical support and services to ensure the success of your business with our Automatic Pick and Place Machine.
