Product Description:

The TM8 is specifically designed for SMT applications and can handle PCB sizes ranging from 50mm x 50mm to 450mm x 350mm, making it a versatile and reliable choice for any production line. The machine can handle PCB thicknesses from 0.6mm to 3.5mm, ensuring that your products are accurately and efficiently assembled every time.

The TM8 Automated Pick-and-Place System is a model of precision and efficiency. With its advanced technology and user-friendly interface, it can accurately place components with a placement accuracy of up to ±0.02mm. This level of precision ensures that your products are assembled to the highest quality standards every time.

Designed for ease of use, the TM8 features an intuitive and easy-to-use interface that allows for quick and easy setup and operation. This makes it an ideal choice for both experienced operators and those new to the world of automated pick-and-place systems. Additionally, the machine is designed with safety in mind, featuring a range of safety features to ensure that your operators remain safe and protected at all times.

The TM8 Automated Pick-and-Place System is the perfect choice for any business looking to improve their SMT production capabilities. With its advanced technology, user-friendly interface, and versatile capabilities, this machine is an investment in your business's success. So why wait? Invest in the TM8 today and experience the benefits of an automated pick-and-place system for yourself.

Features:

• Product Name: Automatic Pick And Place Machine
• Pcb Size: 50mm X 50mm To 450mm X 350mm
• Component Range: 01005-BGA
• Feeder Capacity: 80

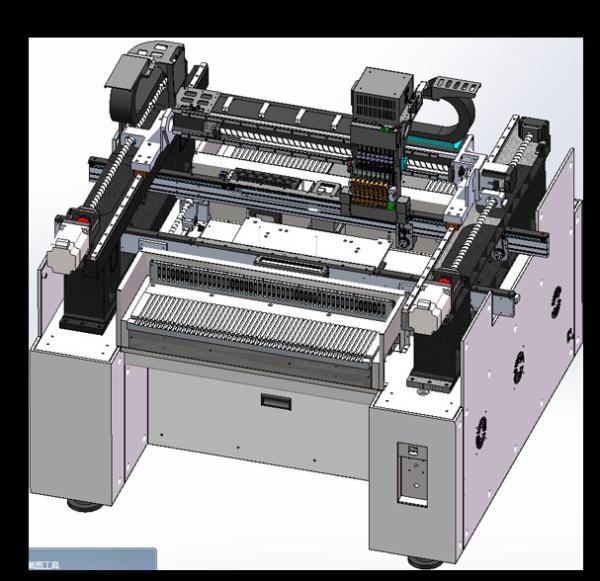

• Transmission System: Ground Screw + Linear Guide
• Dimensions: 1280mm X 1320mm X 1500mm

Introducing our Automated Pick-and-Place System, the perfect solution for your electronic assembly needs. With a PCB size range of 50mm X 50mm to 450mm X 350mm, this system can handle a wide range of electronic components from 01005-BGA. With a feeder capacity of 80, you can easily load and unload components for maximum efficiency. The transmission system uses a ground screw and linear guide for precise and accurate placement. The dimensions of the system are 1280mm X 1320mm X 1500mm, allowing it to fit seamlessly into your production line. Trust our Automated Pick-and-Place System for all your electronic assembly needs.

Technical Parameters:

Applications:

The Charmhigh TM08 Automatic Pick and Place Machine is the ideal solution for electronics manufacturing companies that need to produce high-quality, high-volume products. This product is perfect for those who require a machine that can handle a wide range of component types and sizes, from 01005-BGA and up to 12mm in height. With its 80 NXT 8mm Standard Feeder Stacks, this machine can accommodate a variety of component reels, making it highly flexible and versatile.

The Charmhigh TM08 Automatic Pick and Place Machine is equipped with 8 mounting head quantity that can work simultaneously, ensuring high-speed placement and accuracy. It is designed to handle various components such as resistors, capacitors, integrated circuits, and more. This machine can be used in a wide range of applications and scenarios, including PCB assembly, LED lighting production, automotive electronics, and other high-tech industries.

This product's dimensions of 1280mm X 1320mm X 1500mm make it compact and easy to set up in any manufacturing facility. The Charmhigh TM08 Automatic Pick and Place Machine comes with export wooden box packaging, ensuring that the product is well-protected during transportation.

The Charmhigh TM08 Automatic Pick and Place Machine has a minimum order quantity of one set, making it an accessible solution for businesses of all sizes. The price is negotiable depending on the order quantity, and the product can be delivered within 15 days after full payment. The payment terms are T/T, and the supply ability is 20 sets, ensuring that there is enough stock available for immediate purchase.

In summary, the Charmhigh TM08 Automatic Pick and Place Machine is an advanced solution for automated pick-and-place systems that is perfect for electronics manufacturing companies. It is highly flexible, versatile, and can handle a wide range of component types and sizes. Its compact size, high-speed placement, and accuracy make it an ideal solution for a variety of applications and scenarios.

Customization:

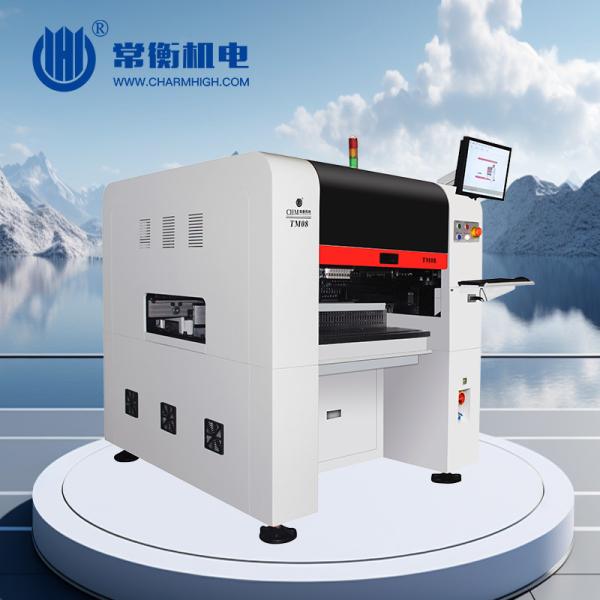

Charmhigh TM08 Automated Pick-and-Place System

Brand Name: Charmhigh

Model Number: TM08

Place of Origin: China

Certification: CE, FCC, RoHS, SGS

Minimum Order Quantity: 1 set

Price: price negotiable

Packaging Details: export wooden box

Delivery Time: within 15 days after full payment

Payment Terms: T/T

Supply Ability: 20 sets

Component Height: 12mm

Placement Speed: 35000 CPH

Component Range: 01005-BGA

Control System: Built-in Computer

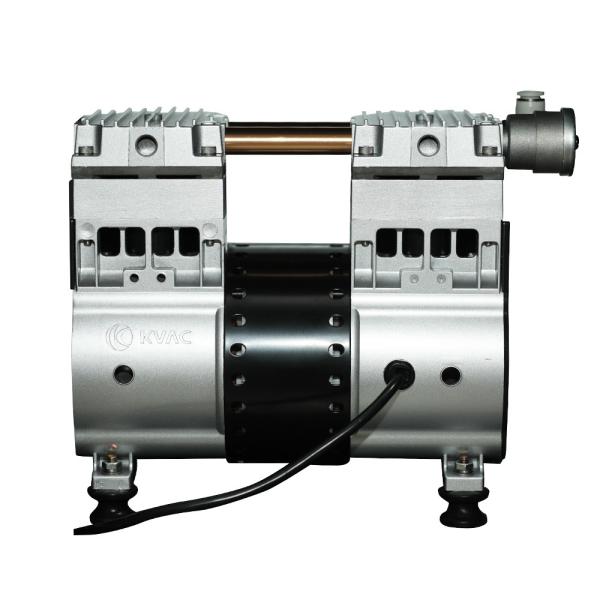

Air Supply: 0.5MPa ~0.7MPa

Support and Services:

The Automatic Pick And Place Machine is a complex piece of equipment, and as such, it may require technical support and services from time to time. Our team of experts is available to assist you with any issues you may be experiencing, including:

• Installation and setup
• Machine diagnostics
• Repairs and maintenance
• Software updates
• Training and education

We understand that downtime can be costly, so our technical support team is committed to providing timely and effective solutions to keep your production line running smoothly. We also offer a range of services to help you get the most out of your Automatic Pick And Place Machine, including:

• Customized programming
• Machine optimization
• Production efficiency analysis
• Process improvement consulting

Whether you need technical support or additional services, our team is dedicated to helping you achieve success with your Automatic Pick And Place Machine.
