Product Description:

Our Automated Pick-and-Place System is capable of handling a wide range of components, from 01005 to BGA, making it an ideal solution for a variety of industries. Whether you are working with small or large components, our machine is designed to pick and place your parts with speed and accuracy.

The transmission system of our Automated Pick-and-Place System is a combination of ground screw and linear guide, ensuring smooth and precise movement of the machine. Additionally, the machine requires an air supply of 0.5MPa to 0.7MPa, which is easily achievable in most manufacturing environments.

The Automated Pick-and-Place System is also designed to accommodate components up to 12mm in height, making it an ideal solution for a wide range of manufacturing needs. Whether you are working with small or large components, our machine is designed to pick and place your parts with speed and accuracy.

Overall, our Automated Pick-and-Place System is the perfect solution for any manufacturing environment looking to improve efficiency and reduce labor costs. With its advanced technology and ease of use, this machine is sure to be a valuable addition to your production process.

Features:

• Product Name: Automatic Pick And Place Machine
• Control System: Built-in Computer
• Model: Tm8
• Type: SMT
• Component Range: 01005-BGA
• Pcb Size: 50mm X 50mm To 450mm X 350mm
• Automated Pick-and-Place System

Technical Parameters:

Applications:

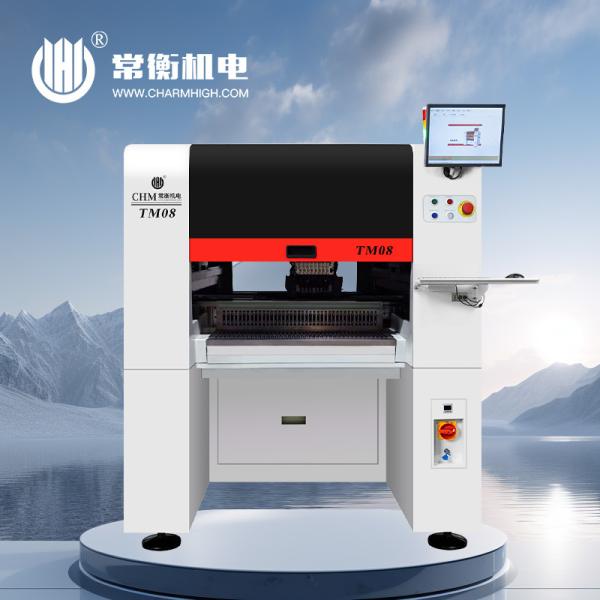

The Charmhigh TM08 Automated Pick-and-Place System is a state-of-the-art machine that is designed to assist in the speedy and accurate assembly of electronic components onto printed circuit boards. This highly efficient system is manufactured in China and is certified by CE, FCC, RoHS, and SGS, ensuring its reliability and safety.

The Charmhigh TM08 is an excellent investment for any business that requires the assembly of electronic components on a regular basis. It is perfect for use in a wide range of industries, including consumer electronics, automotive, aerospace, medical, and military. This machine is an ideal choice for both small and large-scale manufacturing operations, where speed, accuracy, and productivity are essential.

The Charmhigh TM08 Automated Pick-and-Place System has a feeder capacity of 80 and is equipped with the latest 80 NXT 8mm Standard Feeder Stacks. This ensures that the machine can handle a wide range of electronic components of varying sizes and shapes, making it a versatile choice for any manufacturing operation.

The Charmhigh TM08 Automated Pick-and-Place System is also equipped with a reliable and efficient feeding system that ensures that the components are picked and placed with precision and accuracy. The system is designed to work seamlessly with a range of different PCB sizes, from 50mm X 50mm to 450mm X 350mm, and can handle PCB thicknesses ranging from 0.6mm to 3.5mm.

The Charmhigh TM08 Automated Pick-and-Place System is also designed to work with a range of different air supply pressures, from 0.5MPa to 0.7MPa, ensuring that the machine can operate efficiently in a range of different environments.

Overall, the Charmhigh TM08 Automated Pick-and-Place System is an excellent choice for any manufacturing operation that requires speed, accuracy, and efficiency. Its versatility, reliability, and ease of use make it an essential tool for any business that needs to assemble electronic components onto printed circuit boards.

Ordering the Charmhigh TM08 Automated Pick-and-Place System is easy - the minimum order quantity is just one set, and the price is negotiable. The machine is shipped in an export wooden box, ensuring that it arrives at its destination in perfect condition. Delivery time is within 15 days after full payment, and the payment terms are T/T. The supply ability is 20 sets, ensuring that the machine is available when you need it.

Customization:

Charmhigh is proud to offer our Automated Pick-and-Place System, model TM08, originating from China. This system comes with CE, FCC, RoHS, and SGS certification, ensuring its quality and safety. The minimum order quantity is 1 set and the price is negotiable. The packaging details include an export wooden box, and delivery time is within 15 days after full payment. Payment terms are T/T, and the supply ability is 20 sets. The air supply required is 0.5MPa ~0.7MPa, and the system can place components ranging from 01005-BGA. The transmission system uses a Ground Screw + Linear Guide, and the dimensions of the machine are 1280mm X 1320mm X 1500mm. The system can handle PCB sizes ranging from 50mm X 50mm to 450mm X 350mm.
