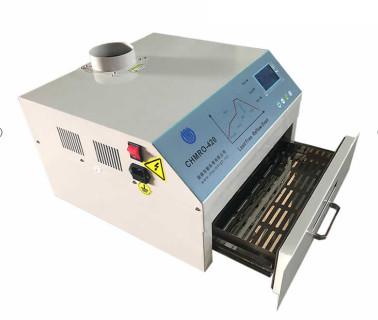

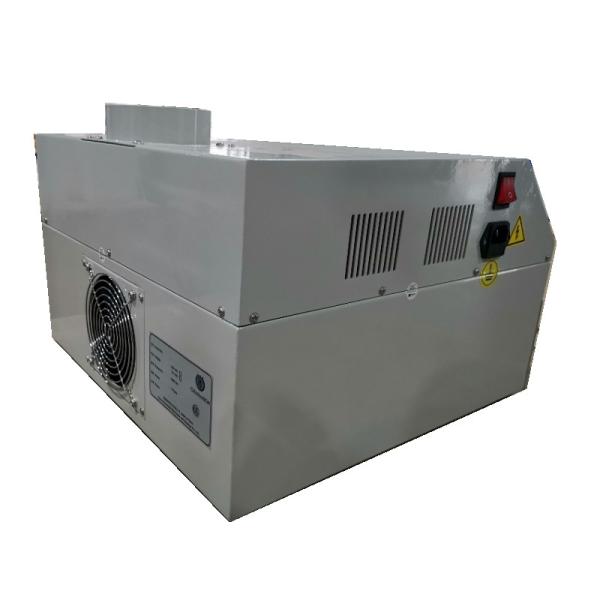

8 Reflow Profile Lead Free Solder Reflow Oven Stainless Steel Liner
8 Reflow Profile Lead Free Solder Reflow Oven Stainless Steel Liner
8 Reflow Profile Lead Free Solder Reflow Oven Stainless Steel Liner
8 Reflow Profile Lead Free Solder Reflow Oven Stainless Steel Liner
Specifications
Brand Name :
chaemhigh
Model Number :
chmro-420
Place of Origin :
china
MOQ :
1pcs
Price :
Negotiable Price
Payment Terms :
D/A, D/P, L/C
Supply Ability :
20/days
Delivery Time :
6-10days
Packaging Details :
Carton
Dimensions :
420mm×405mm×265mm
Net Weight :
20kg
Rated Power :
2500W (peak power)
Rated Voltage :
AC220V 50Hz/60Hz
Drawer Size :
300mm×300mm
Soldering Type :
Lead Soldering / Lead-free Soldering
Description

8 Reflow Profile Lead Free Solder Reflow Oven Stainless Steel Liner

8 Reflow Profile Lead Free Solder Reflow Oven Stainless Steel Liner

CHMRO-420 Reflow Oven Specifications
Dimensions 420mm×405mm×265mm
Net Weight 20kg
Rated Power 2500W (peak power)
Rated Voltage AC220V 50Hz/60Hz
Drawer Size 300mm×300mm
Soldering Type Lead Soldering / Lead-free Soldering
Maximum Soldering Temperature 300°C
Heating Mode Infrared ray & hot air
Temperature Control Accuracy ±1°C (at constant temperature)
Soldering Cycle
Saved Reflow Curve Quantity
 8

8 Reflow Profile Lead Free Solder Reflow Oven Stainless Steel Liner

Product Features:

Hot air and IR mixed heating, heat evenly, welding speed fast, short cycle;

8 reflow profile is optional, flexible production;

Simple calibration curve, just adjust a few parameters, the machine can automatically generate curves and visually displayed;

Built-in PID controllers, high precision temperature control;

Drawer window design, commissioning and easy to use;

The use of special high alloy filament lamp life;

Dual sensor temperature;

Use iron double ball bearing fan, high temperature, long life;

Use pure stainless steel liner;

Drawer rail support with high temperature, easy to use;

Tight insulation processing;

Using industrial-grade display and control circuit;

Simple, intuitive, and efficient man-machine interface design.
