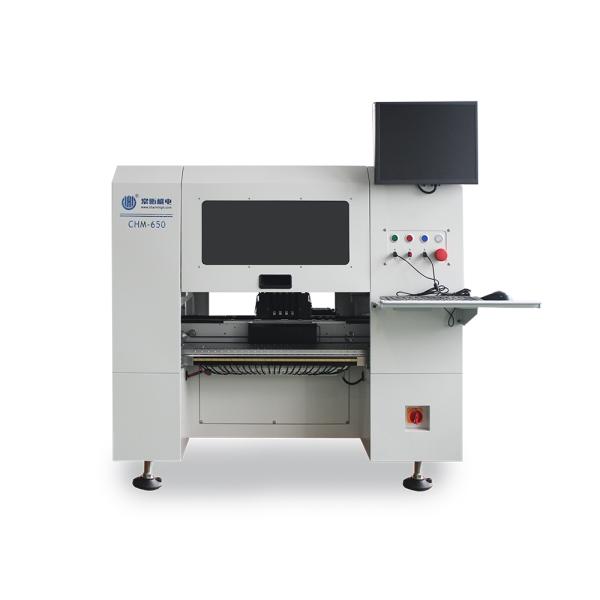

CE Certified 10000cph Pick And Place Automation System , SMT PNP Machine
CE Certified 10000cph Pick And Place Automation System , SMT PNP Machine
CE Certified 10000cph Pick And Place Automation System , SMT PNP Machine
CE Certified 10000cph Pick And Place Automation System , SMT PNP Machine
Specifications
Brand Name :
Charmhigh
Model Number :
CHM-650
Place of Origin :
China
MOQ :
1set
Price :
Negotiable Price
Payment Terms :
T/T
Supply Ability :
10 set/day
Delivery Time :
10-12 work day
Packaging Details :
Wooden box
Model :
CHM-650
Dimensions :
1280mm(L)×1190mm(W)×1050mm(H)
Mounting Speed :
10000cph(optimal)
PCB Size :
400mm(L)×350mm(W)
Mounting Accuracy :
±50μm@μ±3σ/chip
PCB Conveying :
3-section-rail automatic conveying
warranty :
1 year
Description

CE Certified 10000cph Pick And Place Automation System , SMT PNP Machine

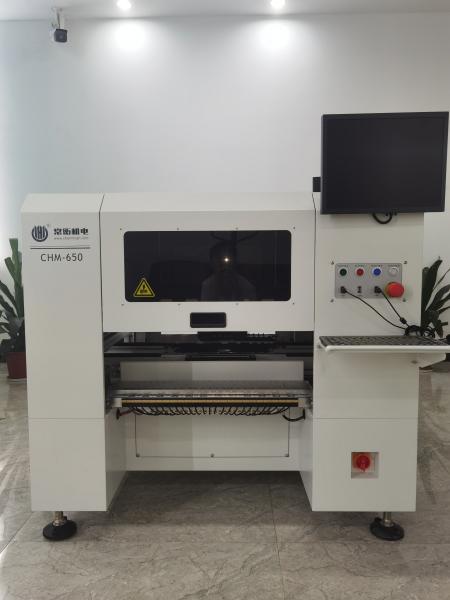

CHM-650 Introduction

This is CHM-650, a high-speed and good-performance pick and place machine of Hunan Charmhigh Electromechanical Equipment Co., Ltd.

CHM-650 Pick and Place Machine is characterized by 50 feeder stacks, 4 heads capable of 360-degree rotation,support for Yamaha pneumatic feeders ,stick feeders with tubular components, automatic correction to pick components, integrated operation with built-in industrial computer.

CHM-650 Specifications
Dimensions 1280mm(L)×1190mm(W)×1050mm(H)
Weight 310kg
Power Supply AC220V (50Hz, single phase), 2.1kW
Air Supply 0.5MPa ~0.7MPa
Vacuum Generation Vacuum generator
Mounting Head Quantity 4
Mounting Speed 10000cph(optimal)
Mounting Accuracy ±50μm@μ±3σ/chip
Control Accuracy 5μm
Component Height 12mm
Component Type

0201/0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc.
(resistor/capacitor/diode/triode/LED/IC, etc.)
PCB Thickness 0.6mm~3.5mm
PCB Size 400mm(L)×350mm(W)
PCB Conveying 3-section-rail automatic conveying
Nozzle Change Automatic nozzle change (19-hole nozzle library)
Control System

Built-in industrial computer (Windows 7)
equipped with monitor, keyboard, and mouse
Drive System X&Yaxisdriven by servo motors;adopting flexible S-curve acceleration and deceleration
Transmission System Ball screw + linear guide
Feeding System

50 Yamaha 8mm standard pneumatic/electric feeder stacks
(also suitable for IC tray and stick feeder)
Vision System

Snapshot camera×4 (component size applicable: 16mm×16mm);
IC camera×1 (component size applicable: 36mm×36mm);
Mark camera×2


CE Certified 10000cph Pick And Place Automation System , SMT PNP Machine
Hunan Charmhigh Electromechanical Equipment Co., Ltd is the well-known manufacturer of high-end
SMT equipment in China.
The company is located in the Changsha High-tech Development Zone,
covering a total area of 3600 square meters.
As a professional modern science and technology enterprise capable of both R&D,
production and marketing, Charmhigh has been leading the way in SMT technology
for more than ten years.
Different series of multi-head full-automatic SMT machines have been developed and
manufactured by Charmhigh to meet various practical production needs.
In accordance with the business philosophy of "Customer First, Innovation Paramount",
Charmhigh has won the hearts of thousands of customers all over the world.
CE Certified 10000cph Pick And Place Automation System , SMT PNP MachineCE Certified 10000cph Pick And Place Automation System , SMT PNP Machine
