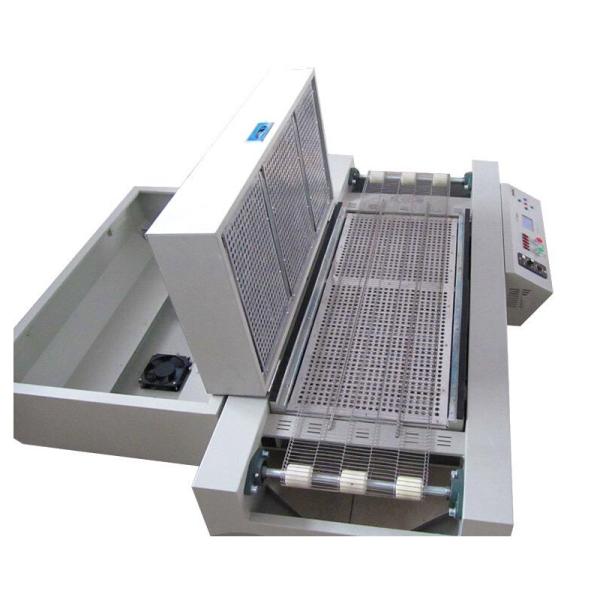

Net Transmission 3.5KW Infrared Heating Hot Air Reflow Oven High Speed
Net Transmission 3.5KW Infrared Heating Hot Air Reflow Oven High Speed
Net Transmission 3.5KW Infrared Heating Hot Air Reflow Oven High Speed
Net Transmission 3.5KW Infrared Heating Hot Air Reflow Oven High Speed
Specifications
Brand Name :
charmhigh
Model Number :
T-961
Place of Origin :
china
MOQ :
1pcs
Price :
Negotiable Price
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
20/days
Delivery Time :
1-5days
Packaging Details :
Carton
Model :
T-961
The length of the heating zone :
730mm
Peak power :
3.5KW
Overall dimensions :
1000*466*445mm
Machine weight :
70KG
Description

Net Transmission 3.5KW Infrared Heating Hot Air Reflow Oven High Speed

Net Transmission 3.5KW Infrared Heating Hot Air Reflow Oven High Speed

Model T-961
The heating zone quantity upper3/down3
The length of the heating 730mm
The heating tupe intelligent level sirocco and rapid infrared heating
The cooling zone quantity 1
Maximum width of PCB board 230mm
The operation direction left--right
Delivery options Net transmission&chain transmission
The speed of conveyer belt 0-290mm/min

Exhibitions

Net Transmission 3.5KW Infrared Heating Hot Air Reflow Oven High SpeedNet Transmission 3.5KW Infrared Heating Hot Air Reflow Oven High Speed

Features:

1. This machine selects the intelligent level sirocco and rapid infrared heating technology controlling, equipped with special design wind wheel, speed stability and uniform temperature, suit for uninterrupted soldering the LED and BGA components.
2. This machine is equipped with the crawler type and six temperature area heating systems, and each temperature area uses independent PID controlling and up down heating type, can make the inside temperature more accurate and well proportioned, just take about 7 minutes can let it heat up to the working temperature from the room temperature.
3. Intelligent temperature wave heating type, oversized capacity wave selection, have eight temperature waves can satisfy various welding technological requirements.
4. Use programmable technology, preset the temperature wave memory storage function, can complete the whole welding process automatically according to your presetting wave.
5. Adopt the thermocouple temperature measurement and add the compensation circuit, make the temperature measurement more accurate, the wave more perfect.

If you want to get more information ,Please don't hesitate to contact me,we will response you at first time.

Tech support:

Tel:+86 19974864383/0731-85504084

Email:shelleywu@charmhigh.com

one@charmhigh. com

Skype/WhatsApp/WeChat ID :+86 19974864383

website:Http://en.charmhigh.com
