CE Certified Pick And Place Machine Parts from Charmhigh in China
CE Certified Pick And Place Machine Parts from Charmhigh in China
CE Certified Pick And Place Machine Parts from Charmhigh in China
CE Certified Pick And Place Machine Parts from Charmhigh in China
Specifications
Brand Name :
Charmhigh
Model Number :
CL8
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable Price
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100 pcs/day
Delivery Time :
1-5 work days
Packaging Details :
carton
material :
aluminum alloy
model :
CL
specification :
8mm
Description

CE Certified Pick And Place Machine Parts from Charmhigh in China

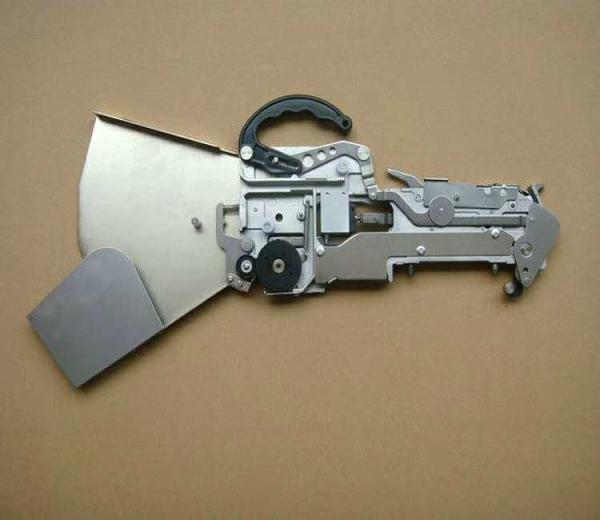

Three core strengths of Feeders

1. Aluminum alloy body : the feeder body adopts synthetic hardware materials, which are formed at one time to ensure that the product does

not deform when subjected to force

2. Original accessories: volume with the japanese original bearings ,accurate and durble,vylinoder by japan prginal fctory small gold well ,stable quality

3.special handling :pressure is epected to cover is made of imported material in accordance with the original proportion forming and secial processing ,ensure good abrasion resistance.

CE Certified Pick And Place Machine Parts from Charmhigh in China

How to solve the problem of poor feeding

1.Check whether the bite of the press cover is normal,feeder is in the state of not loading ,check the bite of the press coer if the occlusal gap is too large,please check whether the pressure cover is deformed and whether there is something stuck in it

CE Certified Pick And Place Machine Parts from Charmhigh in China

2.Check the small beak assembly whether there is a stuck situation.when the gap between the card and the connecting rod is greater than 0.5mm, it is recommended to replace the feeder head component.

CE Certified Pick And Place Machine Parts from Charmhigh in China

3.on the side of the stop claw ,use a 1.5mm allen key to loosen the screw and add a small amount of lubricating oil

CE Certified Pick And Place Machine Parts from Charmhigh in China

Feeders Show

1.CL8*2MM

Model CL8*2MM
material High-grade Aluminum Alloy
size 490x240mm
weight 0.98KG
suitable suitable for belt width is 8mm,0402lamp beads

2. CL8x4MM

model CL8*4MM
material High-grade Aluminum Alloy
size 490x240mm
weight 0.98KG
suitable Suitable for belt width is 8mm, 0603, 1206, 0805, 3014, 3528, 4148, SOT23 and other using less SMD components, 1210 resistance

Packing

Hunan Charmhigh Electromechanical Equipment Co., Ltd is the well-known manufacturer of high-end SMT equipment in China.

The company is located in the Changsha High-tech Development Zone, covering a total area of 3600 square meters.

As a professional modern science and technology enterprise capable of both R&D, production and marketing, Charmhigh has been leading the way in SMT technology for more than ten years.

Different series of multi-head full-automatic SMT machines have been developed and manufactured by Charmhigh to meet various practical production needs.

In accordance with the business philosophy of “Customer First, Innovation Paramount”, Charmhigh has won the hearts of thousands of customers all over the world.

CE Certified Pick And Place Machine Parts from Charmhigh in China

Our service

Each machine 100% test well before ship out.

Support as well as a long term factory price supply.

We provide online Q/A and troubleshooting support and technical advice service.

Provide one to one after-sale service.

If you want to get more information ,Please don't hesitate to contact me,we will response you at first time.

Tel:+86 19974864109/0731-85504084

Email:yumikozhou@charmhigh.com

WhatsApp/WeChat ID :+86 19974864109
