Dual Linear Motor Drive Charmhigh RS10 Magnetic Suspension SMT Pick and Place Machine
Dual Linear Motor Drive Charmhigh RS10 Magnetic Suspension SMT Pick and Place Machine
Dual Linear Motor Drive Charmhigh RS10 Magnetic Suspension SMT Pick and Place Machine
Dual Linear Motor Drive Charmhigh RS10 Magnetic Suspension SMT Pick and Place Machine
Dual Linear Motor Drive Charmhigh RS10 Magnetic Suspension SMT Pick and Place Machine
Dual Linear Motor Drive Charmhigh RS10 Magnetic Suspension SMT Pick and Place Machine
Dual Linear Motor Drive Charmhigh RS10 Magnetic Suspension SMT Pick and Place Machine
Dual Linear Motor Drive Charmhigh RS10 Magnetic Suspension SMT Pick and Place Machine
Specifications
Dimension :
1600 (L) * 1688 (W) * 1560 (H) mm
Motor :
X motor servo motor + Y axis double linear motors
Heads :
10 heads (with 31pcs nozzle auto-change position)
Power supply :
AC380V (50Hz, three phase) 4.5kw
Net weight :
1930kg
Feeder :
Support 100pcs NXT electric feeder
Component :
01005, 0201,0402,-5050, SOP, QFN,BGA...
PCB thickness :
0.6-3.5mm
Maximum component height :
12mm
Supply Ability :
30 per month
Brand Name :
Charmhigh
Model Number :
RS10 (Magnetic Suspension)
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T,Western Union
Delivery Time :
3-7 working days
Packaging Details :
wooden box
Price :
$38000
Mounting speed :
Optimal speed: 45000cph;
Camera :
IC camera: 1pcs (36X36mm); Flying camera: 10pcs (16X16mm); MARK camera: 2pcs
PCB delivery :
3 pieces auto delivery with rails, width can be adjusted by software
Feeder type :
Fuji NXT electric feeder
PCB size :
600(L)*400(W)mm (Standard)
Description
Dual Linear Motor Drive Charmhigh RS10 Magnetic Suspension SMT Pick and Place Machine
Product Overview

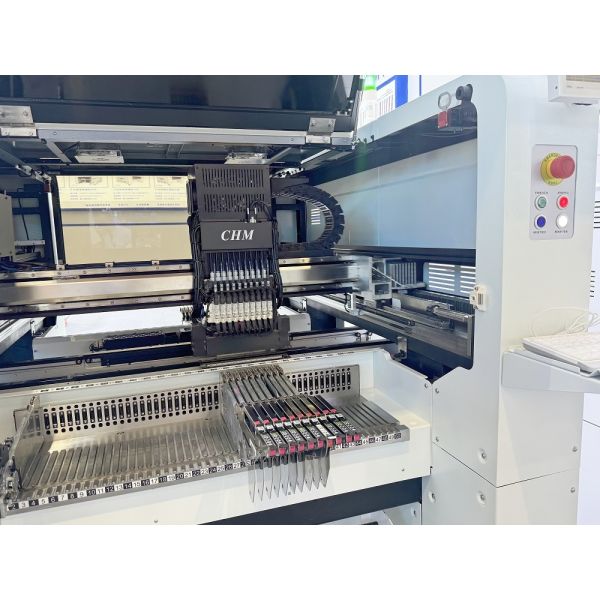

Charmhigh RS10 Magnetic Suspension Pick and Place Machine - Dual Linear Motor Drive

Designed for high-speed, high-precision large PCB assembly lines and PCBA manufacturing. Supports 01005 components.

Key Features
  • Optimal Speed: 45,000 CPH (under optimal conditions)
  • Mounting Accuracy: (XY)±0.035mm CPK≥1.0
  • Components Mounting Range: 01005 to 36mm×36mm and larger components
  • Optional features: Blue light scanning, lens mounting, 1.2m long PCB mounting production
Video Demonstrations
Real Working Video NEPCON Exhibition Show Workshop Production
Technical Specifications
Dimensions1600mm(L)×1688mm(W)×1560mm(H)
Weight1930kg
Power SupplyAC380V (50Hz, three phase), 4.5kW
Air Supply0.5MPa ~0.7MPa
Vacuum GenerationBuilt-in vacuum pump
Mounting Head Quantity10 heads
Mounting Speed45,000 CPH (optimal)
Mounting Accuracy(XY)±0.035mm CPK≥1.0
Component Height≤12mm
Component Type01005/0201/0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc.
Component RangeInch size 0201 to 36mm*36mm, and larger components
PCB Thickness0.6mm~3.5mm
PCB Size600mm(L)×400mm(W) (standard); 1200mm(L)×400mm(W) (optional)
PCB Conveying3-section-rail automatic conveying, PCB support
Nozzle ChangeAutomatic nozzle change (31-hole nozzle library)
Control SystemBuilt-in industrial computer (Windows 7) with monitor, keyboard, and mouse
Drive SystemX axis driven by servo motor, Y axis driven by dual linear motor
Transmission SystemX&Y axis with THK ground ball screw and THK mute linear guide
Feeding System100 NXT 8mm standard feeder stacks
Vision SystemFly camera×10, IC camera×1, Mark camera×2 with image stitching function
Machine Highlights
  • Y-axis Dual Linear Motor Drive
  • Support CPK Detection
  • Large-size Component Identification
  • ANC (Auto Nozzle Changer)
  • HD IC Vision System
  • Frame Structure with Grinding Industrial-grade Platform
  • Built-in Vacuum Pump + Solenoid Valve Structure
  • Automatic Thermal Compensation Correction System
  • PCB Support Device
  • Dual Mark Camera for Larger PCBs
Product Images
Dual Linear Motor Drive Charmhigh RS10 Magnetic Suspension SMT Pick and Place Machine Dual Linear Motor Drive Charmhigh RS10 Magnetic Suspension SMT Pick and Place Machine Dual Linear Motor Drive Charmhigh RS10 Magnetic Suspension SMT Pick and Place Machine Dual Linear Motor Drive Charmhigh RS10 Magnetic Suspension SMT Pick and Place Machine Dual Linear Motor Drive Charmhigh RS10 Magnetic Suspension SMT Pick and Place Machine Dual Linear Motor Drive Charmhigh RS10 Magnetic Suspension SMT Pick and Place Machine
