High-end 6-head Module Pick and Place Machine TC06 Fully Automatic PCB Assembly
High-end 6-head Module Pick and Place Machine TC06 Fully Automatic PCB Assembly
High-end 6-head Module Pick and Place Machine TC06 Fully Automatic PCB Assembly
High-end 6-head Module Pick and Place Machine TC06 Fully Automatic PCB Assembly
High-end 6-head Module Pick and Place Machine TC06 Fully Automatic PCB Assembly
High-end 6-head Module Pick and Place Machine TC06 Fully Automatic PCB Assembly
High-end 6-head Module Pick and Place Machine TC06 Fully Automatic PCB Assembly
High-end 6-head Module Pick and Place Machine TC06 Fully Automatic PCB Assembly
High-end 6-head Module Pick and Place Machine TC06 Fully Automatic PCB Assembly
High-end 6-head Module Pick and Place Machine TC06 Fully Automatic PCB Assembly
Specifications
Heads :
6pcs(with 19pcs nozzle auto-change position)
PCB size :
350mm(L) * 300mm(W)
Speed :
27800 CPH (best condition under our company)
Feeder :
Support 50pcs NXT electric feeder
Component :
01005, 0201,0402,-5050, SOP, QFN,BGA to 36*36mm larger components
Max component height :
12mm
Camera :
IC camera: 1pcs (36x36mm); Flying camera: 6pcs (16x16mm); MARK camera: 2pcs
PCB delivery :
3 pieces auto delivery with rails, width can be adjusted by software
Dimension :
890mm(L)x1450mm(W)x1500mm(H)
Power supply :
AC220V (50 Hz, single phase)
Feeder type :
Fuji NXT electric feeder
Motor :
Panasonic servo motor
PCB thickness :
0.6-3.5mm
Net weight :
900kg
Brand Name :
Charmhigh
Model Number :
TC06 (6 heads + 50 feeders)
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
$16000
Payment Terms :
T/T,Western Union
Supply Ability :
20 per month
Delivery Time :
5-7 working days
Packaging Details :
wooden box
Description

Charmhigh Module Pick and Place Machine – TC06

High-end & Compact design. Cast iron integrated molding, ultra-strong X-beam structure.

6 Heads 50 feeders, Support 01005 CPK>1.0

89cm width, suitable for most office doors and elevators!


TC06 SMT pick and place machine engineered with modular PCBA assembly in mind, this machine supports ultra-fine pitch ICs, BGA, QFN, and 0201,01005 passive components with remarkable accuracy. The compact design allows seamless integration into modern SMT lines, making it ideal for smart electronics, IoT devices, and customized module production.


Advantages of TC06:

1.Supporting CPK is an important key to choosing a pick and place machine, making the SMT production process more stable.

2.ANC: Automatic nozzle chagne, making SMT production more intelligent and more efficient.

3.High-precision 6 mounting heads: one machine can meet the mounting needs of various components with high stability

4.Cast iron base structure, the pick and place machine runs smoothly at high speed.

5.The X&Y axis driven by Panasonic servo motor ensures the long-term stability and precision of the machine.


Charmhigh YouTube channel: https://www.youtube.com/@KimiLiuCharmhigh/videos

TC06 working video, mounting 01005: https://www.youtube.com/watch?v=jmGMTdvt9FY


Charmhigh TC06 parameters:

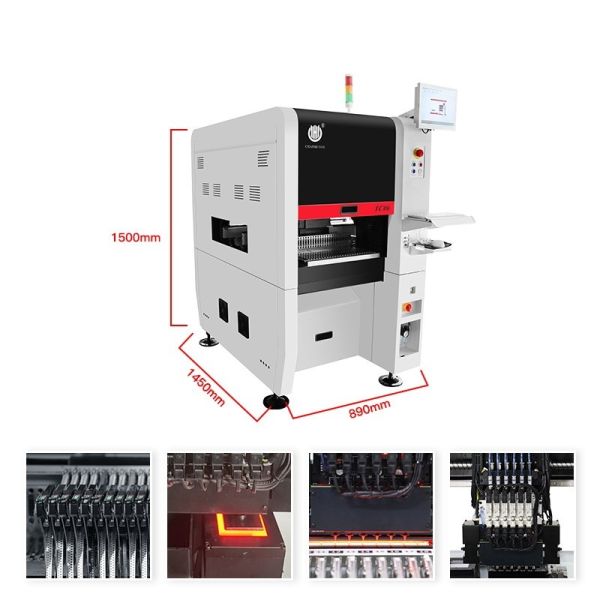

Dimensions
890mm(L)x1450mm(W)x1500mm(H)
Weight 900kg
Power Supply AC220V (50Hz, single phase), 3kW
Air Supply 0.5MPa ~0.7MPa
Vacuum Generation Built-in vacuum pump
Mounting Head Quantity 6
Mounting Speed 27800cph (optimal)
Mounting Accuracy (xy)+30μm, CPK≥1.0
Component Height ≤12mm

Component Type &

Component Range

-Resistor capacitor exclusion, cylindrical diode, aluminum
capacitor, SOT, SOP, QFP, QFN, BGA, etc.

-Inch size 01005 to 36*36mm, and larger components mounting

PCB Thickness 0.6mm~3.5mm
PCB Size 350mm(L)x300mm(W)
PCB Conveying 3-section-rail automatic conveying, PCB support device
Nozzle Change Automatic nozzle change (19-hole nozzle library)
Control System Built-in industrial computer (Windows system)
equipped with monitor, keyboard, and mouse
Drive System

X&Y axis driven by Panasonic servo motors

Transmission System Grounding screws + Linear guides
Feeding System 50 NXT 8mm standard feeder stacks
(also suitable for IC tray and stick feeder)
Vision System Fly camera x 6 (component size applicable: 16mmx16mm);
IC camera x 1 (component size applicable: 36mmx36mm);
Mark camera x 2


Two units Charmhigh TC06 working together, 27800 CPH *2 = 55600 CPH

This pick and place machine is compact and adorable, yet incredibly powerful.


High-end 6-head Module Pick and Place Machine TC06 Fully Automatic PCB Assembly

High-end 6-head Module Pick and Place Machine TC06 Fully Automatic PCB Assembly


Charmhigh TC06: CPK detection passed, TC06: CPK≥1.0, Support 01005:

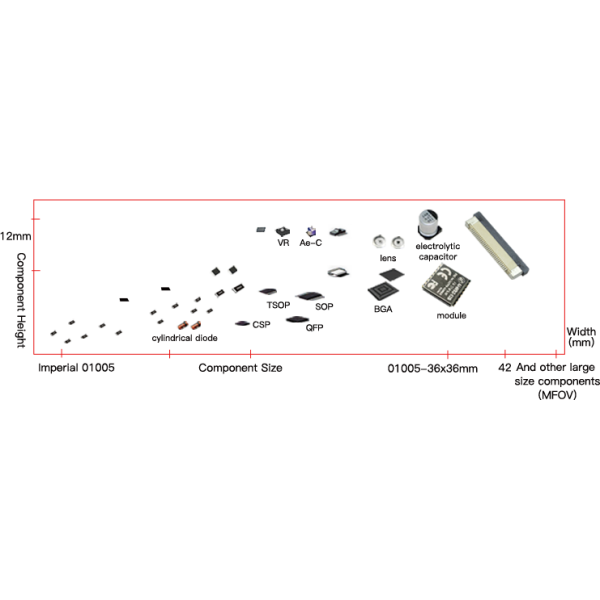

Mounting range:

High-end 6-head Module Pick and Place Machine TC06 Fully Automatic PCB Assembly

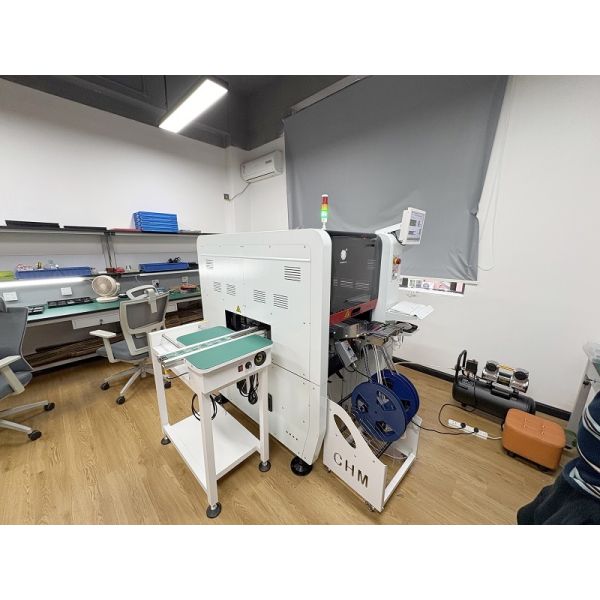

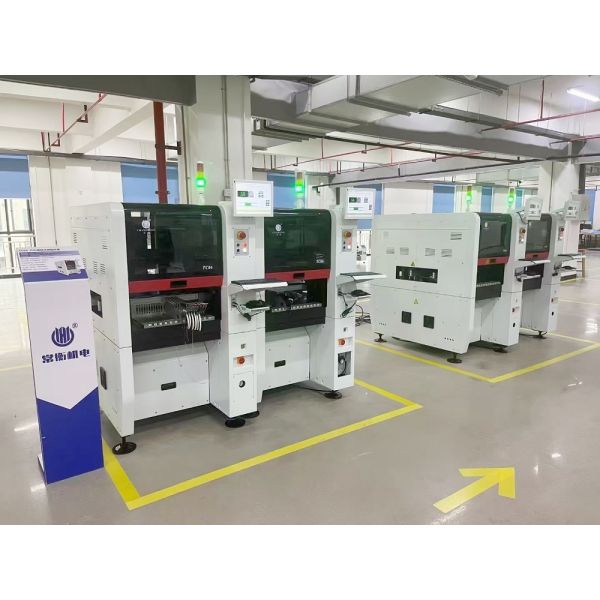

Customer site:

High-end 6-head Module Pick and Place Machine TC06 Fully Automatic PCB Assembly


TC06 strong packing:

High-end 6-head Module Pick and Place Machine TC06 Fully Automatic PCB Assembly

Service & Warranty:

The complete machine has a warranty period of 1 year from the time of purchase and lifetime service.

We always provide spare parts of machine, factory direct supply with guarantee.

We provide online Q/A and troubleshooting support and technical advice service.

We provide one to one after-sale service. Each machine 100% tested well before ship out.

Tech support:

Kimi Liu: Mob/ WhatsApp: +8613510675756

E-mail: kimi@charmhigh-tech.com

Welcome to follow us on YouTube: https://www.youtube.com/@KimiLiuCharmhigh/videos

If you want to know more information, please contact us by E-mail. We will response you at the first time.


Why choose us?

1.CHARMHIGH serves customers in over 30 countries worldwide, earning their trust through reliable performance and innovation.

2.With deep expertise in SMT manufacturing, we specialize in designing and delivering fully customized SMT solutions—from concept to production.

3.Our team provides expert technical services and responsive support to ensure seamless operations and maximum efficiency.

4.We have extensive experience in diagnosing and resolving SMT challenges, offering optimized solutions for every production need.

5.By choosing CHARMHIGH, you gain a dependable long-term partner committed to your success in SMT manufacturing.


Value-added Services:

​1.Complimentary Offline Programming Software​ (USD 2,083 value) - Streamline your setup and significantly reduce programming time
​2.Free Offline Loading Table Included​ (USD 277 value) - Ready-to-use equipment for immediate productivity
​3.Dedicated Online Operational Guidance​ - Expert support ensures smooth implementation and worry-free operation
