Full-automatic SMT Production PCB Loader Unloader with PLC Control System and SMEMA Interface Compatibility
Full-automatic SMT Production PCB Loader Unloader with PLC Control System and SMEMA Interface Compatibility
Full-automatic SMT Production PCB Loader Unloader with PLC Control System and SMEMA Interface Compatibility
Full-automatic SMT Production PCB Loader Unloader with PLC Control System and SMEMA Interface Compatibility
Full-automatic SMT Production PCB Loader Unloader with PLC Control System and SMEMA Interface Compatibility
Full-automatic SMT Production PCB Loader Unloader with PLC Control System and SMEMA Interface Compatibility
Full-automatic SMT Production PCB Loader Unloader with PLC Control System and SMEMA Interface Compatibility
Full-automatic SMT Production PCB Loader Unloader with PLC Control System and SMEMA Interface Compatibility
Specifications
Brand Name :
Charmhigh
Model Number :
CHM-250LD & CHM-250ULD
Certification :
CE
Place of Origin :
China
MOQ :
1pcs
Price :
$1500 & $1650
Payment Terms :
T/T,Western Union
Supply Ability :
100 units/month
Delivery Time :
5-7 days
Packaging Details :
Plywood box
Name :
PCB loader & unloader
Application :
Full-automatic smt production line
PCB magzine size :
355*320*565mm; 460*400*565mm; 535*460*565mm, 648*530*568mm
250 model dimension :
Loader: 1100x780x1200mm ; Unloader: 1700x780x1200mm
330 model dimension :
Loader: 1400x860x1200mm ; Unloader: 1900x860x1200mm
390 model dimension :
Loader: 1500x920x1250mm ; Unloader: 2200x920x1250mm
460 model dimension :
Loader: 1610x1120x1250mm ; Unloader: 2330x980x1250mm
Weight :
140&160kg; 180&200kg; 220&240kg
Description
Full Automatic SMT Assembly Line PCB Loader & Unloader
SMT Magazine Loader for PCB Assembly Line
Full-automatic SMT Production line PCB loader & unloader models CHM-250LD and CHM-250ULD designed for electronic products machinery and PCB assembly lines.
Key Features
  • PLC Control System for reliable operation
  • Compatible with SMEMA Interface
  • Capable of both suction and delivery of boards
  • Robust and stable design for continuous production
  • Human-Machine Interface Control Panel for easier operation
PCB Loader Function
This equipment is used at the beginning of the production line. Bare boards can use the suction board function, while double-sided boards can use the upper board function, making production more convenient and faster.
PCB Unloader Function
This equipment is used for the panel collection operation of circuit boards in the SMT production line.
Available Models
PCB Loader Models
CHM-250LD, CHM-330LD, CHM-390LD, CHM-460LD
PCB Unloader Models
CHM-250ULD, CHM-330ULD, CHM-390ULD, CHM-460ULD
Technical Parameters
Parameter Specification
Loading Time Approximately 6 seconds
Send Height 900±30mm (or as specified by user)
Step Choice 10mm, 20mm, 30mm, 40mm
Transfer Direction Left to right or right to left
Container Number 1 PCB magazine
Pressure and Gas Flow 4-6 bar, maximum 30 litre/minute
PCB Thickness Minimum 0.6mm
Container Replacement Time Approximately 25-30 seconds
Power Supply 100-230V, single phase, maximum 300 volt-ampere
Product Images
100% quality assurance with real product images:

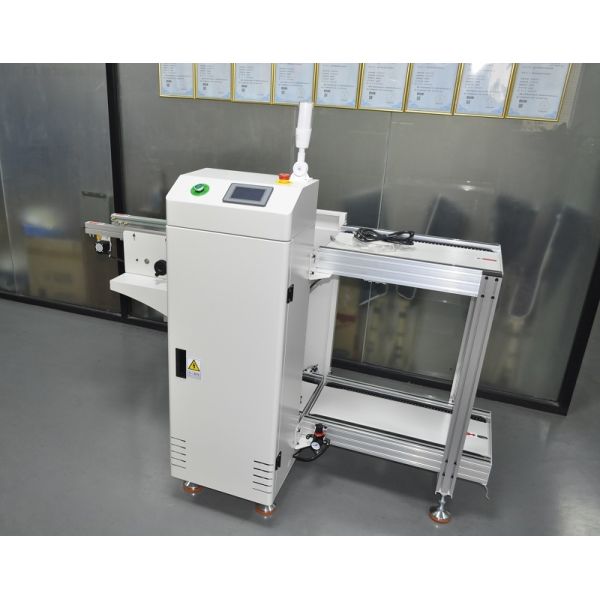

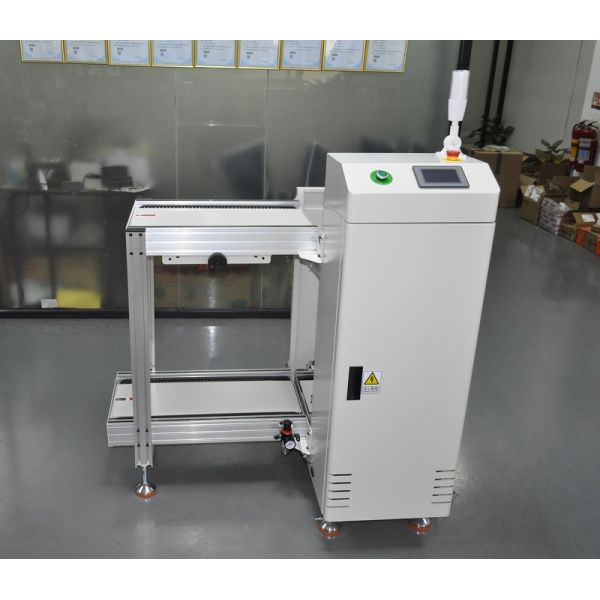

Full-automatic SMT Production PCB Loader Unloader with PLC Control System and SMEMA Interface Compatibility Full-automatic SMT Production PCB Loader Unloader with PLC Control System and SMEMA Interface Compatibility
Recommended Production Line Options
Option 1: CHM-551 4 Heads Pick and Place Machines
Full-automatic SMT Production PCB Loader Unloader with PLC Control System and SMEMA Interface Compatibility
Option 2: 8 Heads + 10 Heads Pick and Place Machines
Full-automatic SMT Production PCB Loader Unloader with PLC Control System and SMEMA Interface Compatibility
Customer Installation Examples

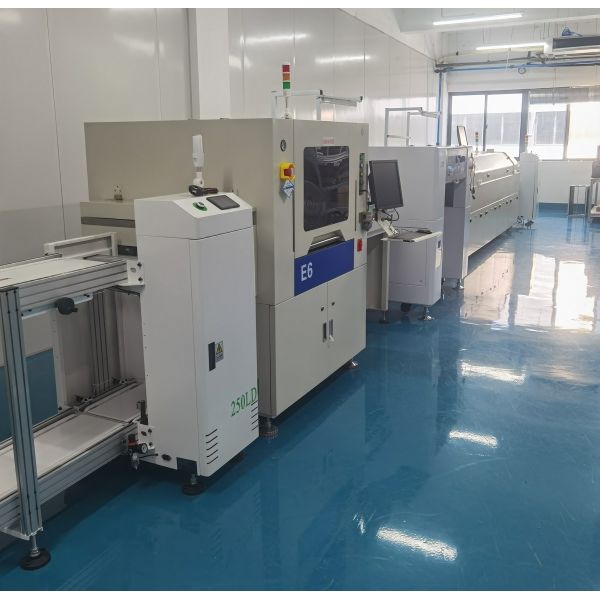

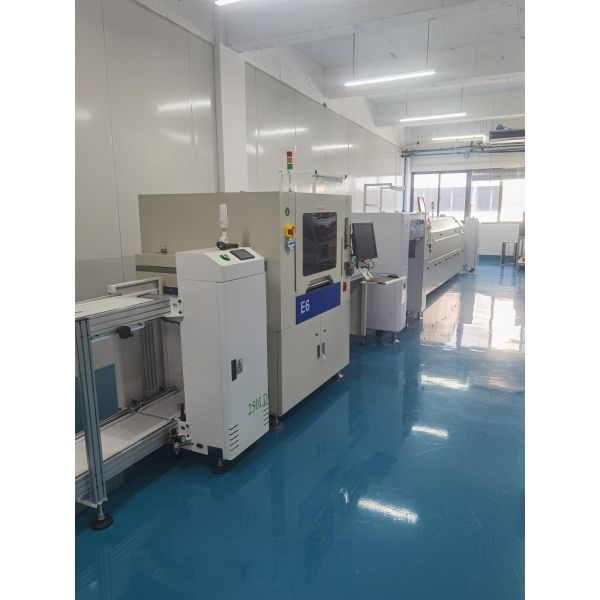

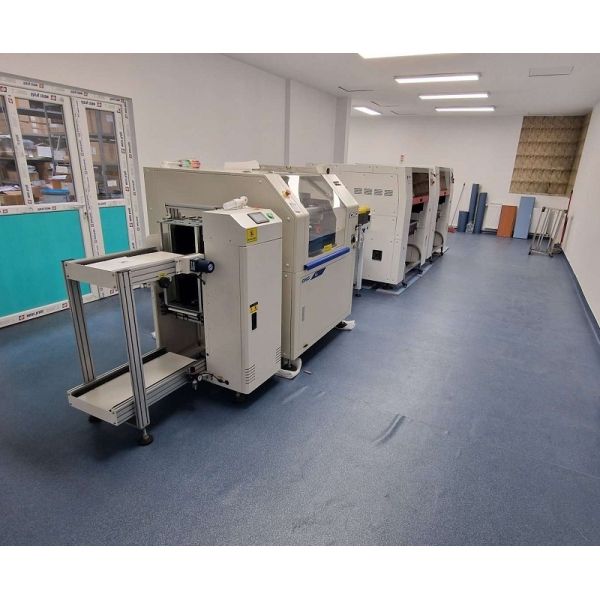

Full-automatic SMT Production PCB Loader Unloader with PLC Control System and SMEMA Interface Compatibility Full-automatic SMT Production PCB Loader Unloader with PLC Control System and SMEMA Interface Compatibility
Service & Warranty
Complete machine has a warranty period of 1 year from purchase date with lifetime service support.
  • Factory direct spare parts supply with guarantee
  • Online Q/A and troubleshooting support
  • Technical advice service
  • One-to-one after-sale service
  • Each machine 100% tested before shipment
Technical Support
Contact: Kimi Liu
Mobile/WhatsApp: +8613510675756
Email: kimi@charmhigh-tech.com
YouTube: https://www.youtube.com/c/KimiLiuCharmhigh/videos
For more information, please contact us by email. We will respond promptly.
