Best Seller 6 heads TC06 Pick and Place Machine Cast-iron Frame SMT Chip Mounter
Room-saved High-end 6-head SMT Pick and Place Machine TC06

CPK >1.0, support 01005, speed 27800cph, width 890mm narrow design

Product Overview

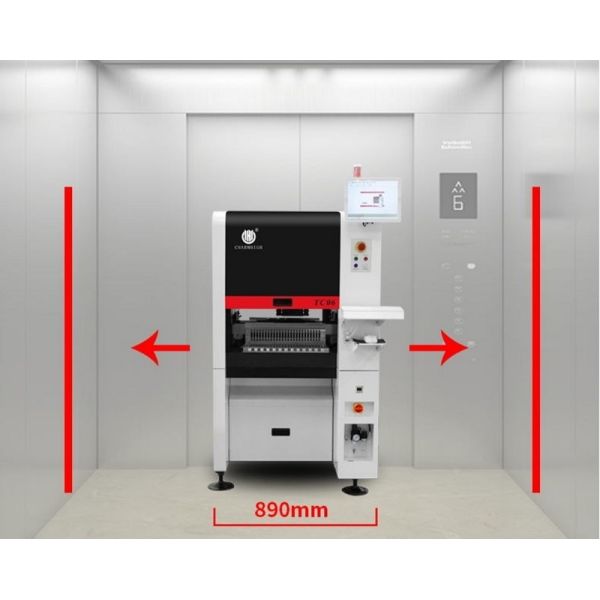

Charmhigh TC06 automated SMT pick and place machines are designed for fast, accurate PCB assembly. With a compact width of 890mm, it's designed to fit easily into standard elevators.

It's the perfect pick-and-place machine for startup companies. We strongly recommend it for precision mounting.

Technical Specifications

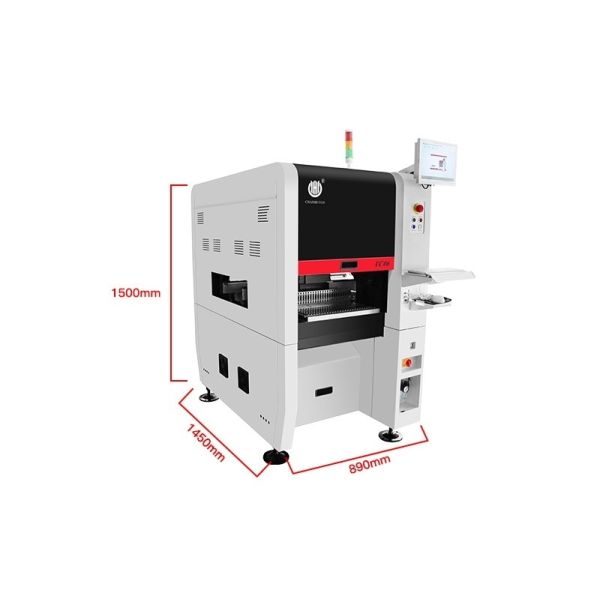

Dimensions 890mm(L) x 1450mm(W) x 1500mm(H)
Weight 900kg
Power Supply AC220V (50Hz, single phase), 3kW
Air Supply 0.5MPa ~0.7MPa
Vacuum Generation Built-in vacuum pump
Mounting Head Quantity 6
Mounting Speed 27800cph (optimal)
Mounting Accuracy (xy)+30μm, CPK≥1.0
Component Height ≤12mm
Component Type & Range Resistor capacitor exclusion, cylindrical diode, aluminum capacitor, SOT, SOP, QFP, QFN, BGA, etc. Inch size 01005 to 36*36mm, and larger components mounting
PCB Thickness 0.6mm~3.5mm
PCB Size 350mm(L) x 300mm(W)
PCB Conveying 3-section-rail automatic conveying, PCB support device
Nozzle Change Automatic nozzle change (19-hole nozzle library)
Control System Built-in industrial computer (Windows system) equipped with monitor, keyboard, and mouse
Drive System X&Y axis driven by Panasonic servo motors
Transmission System Grounding screws + Linear guides

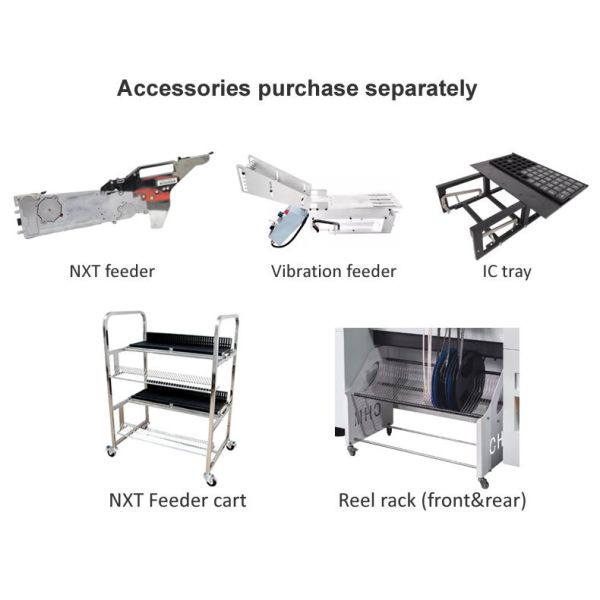

Feeding System 50 NXT 8mm standard feeder stacks (also suitable for IC tray and stick feeder)
Vision System Fly camera x 6 (component size applicable: 16mmx16mm); IC camera x 1 (component size applicable: 36mmx36mm); Mark camera x 2

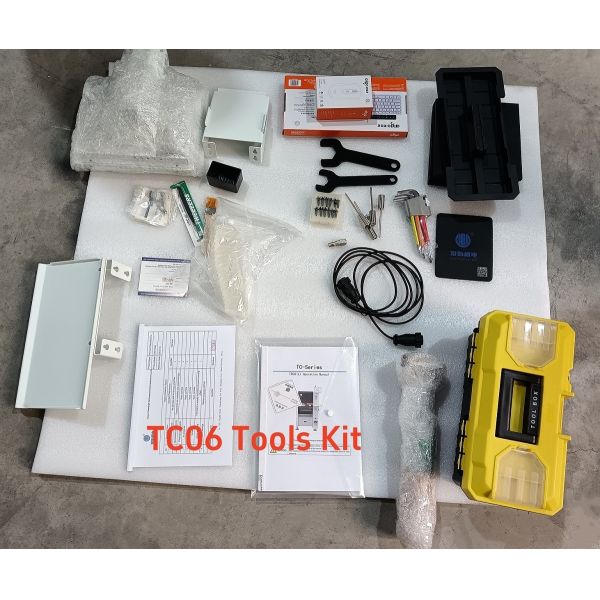

Standard Parts List
Item Quantity Item Quantity
TC06 Pick and place machine 1 Lubricating oil 1
Nozzles 8 Filter 4
Tool box 1 Quick connector 1
Warranty Card 1 Mouse Pad 2
User Manual 1 Power Cable 2
Test Report 1 Keyboard 1
Brush 1 Mouse Pad 1
Tweezer 1 LCD 1
Product Images

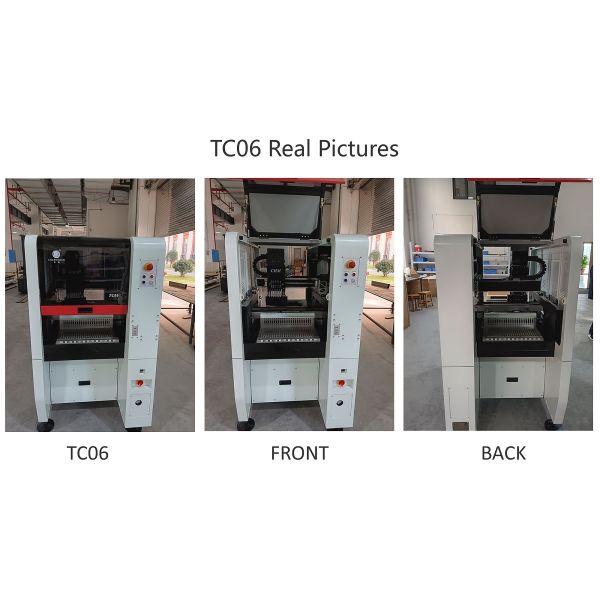

Best Seller 6 heads TC06 Pick and Place Machine Cast-iron Frame SMT Chip Mounter Best Seller 6 heads TC06 Pick and Place Machine Cast-iron Frame SMT Chip Mounter Best Seller 6 heads TC06 Pick and Place Machine Cast-iron Frame SMT Chip Mounter Best Seller 6 heads TC06 Pick and Place Machine Cast-iron Frame SMT Chip Mounter

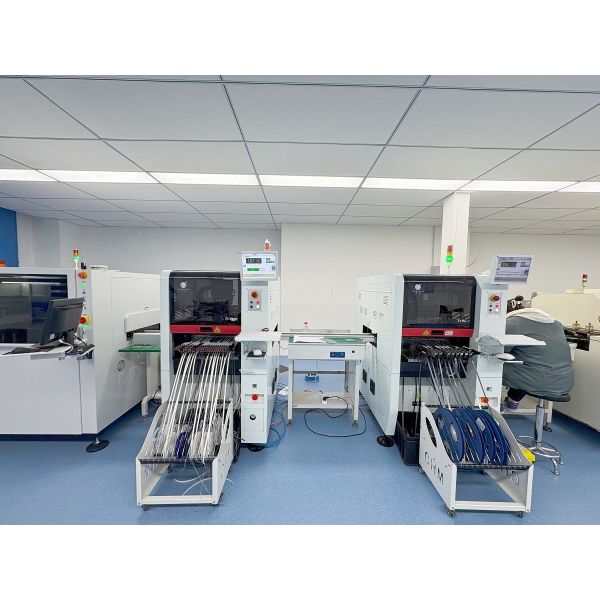

Customer Workshop
