Industrial IR Curing Oven with 6 Heating Zones and 280°C for Paint, Coating & Adhesive Drying
Industrial IR Curing Oven with 6 Heating Zones and 280°C for Paint, Coating & Adhesive Drying
Industrial IR Curing Oven with 6 Heating Zones and 280°C for Paint, Coating & Adhesive Drying
Industrial IR Curing Oven with 6 Heating Zones and 280°C for Paint, Coating & Adhesive Drying
Industrial IR Curing Oven with 6 Heating Zones and 280°C for Paint, Coating & Adhesive Drying
Industrial IR Curing Oven with 6 Heating Zones and 280°C for Paint, Coating & Adhesive Drying
Industrial IR Curing Oven with 6 Heating Zones and 280°C for Paint, Coating & Adhesive Drying
Industrial IR Curing Oven with 6 Heating Zones and 280°C for Paint, Coating & Adhesive Drying
Specifications
Brand Name :
Charmhigh
Model Number :
CHM-2500
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
$10,000
Payment Terms :
T/T
Supply Ability :
50 units per month
Delivery Time :
5-8 work days
Packaging Details :
Plywood box
Power :
3-phase,380V 50Hz
Max Temperature :
280 degree
Dimensions :
L3000*W1000*H1300 mm
Net weight :
1600kg
Number of Heating Zones :
6 zones (Top)
Heater Type :
Far-infrared Heater
Conveyor Type :
Chain
Heating size :
2500*500mm
Description
2500*500mm Industrial IR Curing Oven CHM-2500
Professional infrared curing system for paint, coating, and adhesive drying applications in industrial manufacturing environments.
Technical Specifications
Parameter Category Specification
Heater & Control System
Heater Type Far-infrared Heater
Number of Heating Zones 6 zones (Top)
Zone Length 2500mm
Warm-up Time 5 to 15 minutes
Temperature Control PID closed-loop with SSR driver
Temperature Uniformity 5°C
Curing Time 0-15 minutes (adjustable)
Control Type Touch Screen + PLC
Conveyor System
Conveyor Type Chain
Conveyor Height 900+20 mm
Conveyor Speed 10-500mm/minute
Conveyor Direction Optional: Left-to-Right or Right-to-Left
Maximum Product Width 50-500 mm
Upper Clearance Height ≤100 mm
Lower Clearance Height ≤100 mm
Cooling Method Natural air cooling
Cover Opening Electric push rod
Exhaust Ports One at entrance, one at exit (2 ports total)
General Machine Description
Overall Dimensions L3000*W1000*H1300 mm
Net Weight 1600KG
Power Supply 3-phase, 380V 50Hz
Maximum Temperature 280°C
Conveyor Speed Range 10-500mm/minute
Total Machine Power 32KW
Power Consumption 4-10KW/hour

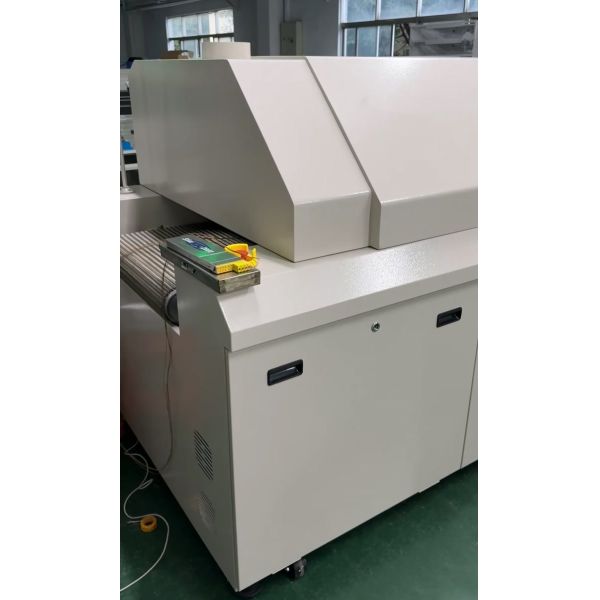

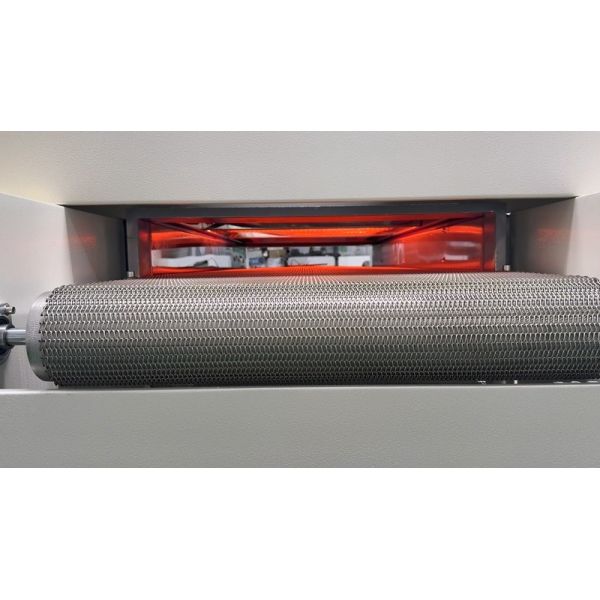

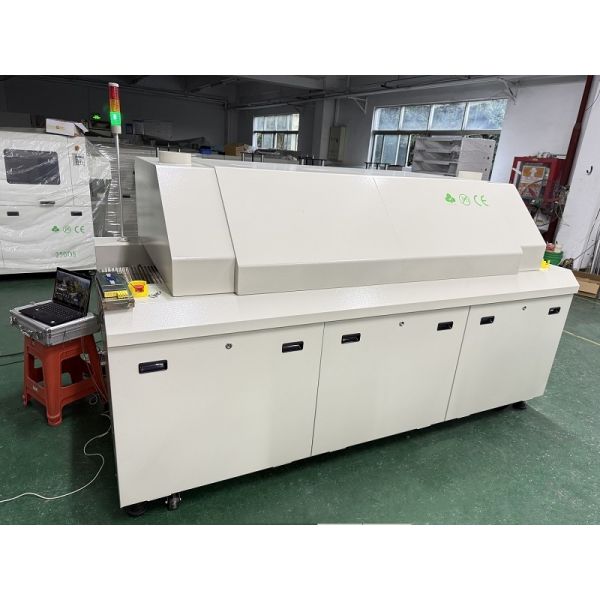

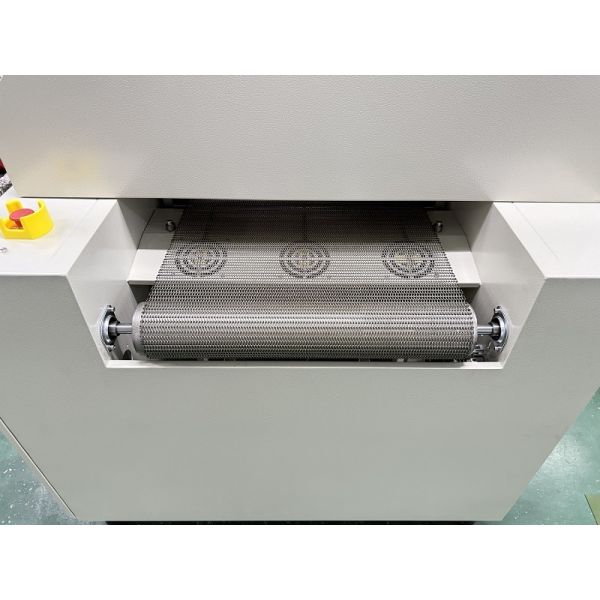

Product Gallery
Industrial IR Curing Oven with 6 Heating Zones and 280°C for Paint, Coating & Adhesive Drying Industrial IR Curing Oven with 6 Heating Zones and 280°C for Paint, Coating & Adhesive Drying Industrial IR Curing Oven with 6 Heating Zones and 280°C for Paint, Coating & Adhesive Drying
Thermal Performance Testing
Industrial IR Curing Oven with 6 Heating Zones and 280°C for Paint, Coating & Adhesive Drying
Service & Warranty
  • 12-month warranty on every machine
  • Lifetime spare-parts support from our own factory
  • Free online Q&A, troubleshooting and technical advice
  • One-to-one after-sales specialist assigned to each customer
  • Every unit is fully tested before it leaves our plant
Technical Support & Contact
Kimi Liu | Sales Engineer
Charmhigh Technology Ltd.
Mobile / WhatsApp: +86 135 106 757 56
Email: kimi@charmhigh-tech.com
Website: https://www.charmhigh-tech.com
YouTube Channel
Need more videos or technical data? Contact us via email for immediate assistance.
