Specifications
Brand Name :
Charmhigh
Model Number :
CHM-551P
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
$9000
Payment Terms :
T/T,Western Union
Supply Ability :
30 Per month
Delivery Time :
2-3 days
Packaging Details :
wooden box
Max PCB size :
350mm(L)x280mm(W) (Standard)
Feeder :
50pcs Yamaha Feeders (pneumatic & electric feeder)
Operation system :
Linux system
Fiducial calibration :
Auto calibrate Mark point
Component height :
12mm
Mounting speed :
14400cph
Net weight :
310kg
Nozzle :
Auto nozzle changer with 13pcs nozzle library
Dimension :
1020mm(L)x1180mm(W)x1450mm(H)
Mounting Accuracy :
(XY) ±0.035mm CPK≥1.0
Description
Cast-iron Structure 4-head CHM-551P SMD Pick and Place Machine
Product Overview

Upgrade CHM-551P 4-head SMT pick and place machine by Charmhigh (updated from CHM-551)

Higher speed 14400 CPH, higher precision 0201~30*30mm area, cast-iron frame with high stability. Very stable with high precision, 0201 perfect mass production, the best 4 heads model in China.

Automatic PCB conveyor, 50 Feeders 4 heads SMT pick and place robot. CHM-551P SMT Pick and Place Machine (with Auto Nozzle Change) for SMT Batch Production. 0201 supported. CPK Test support. Economic solution for SMT assembly, small batch production.

Updated Features Compared with CHM-551
  • Higher speed, from 11500CPH to 14400CPH
  • Cast-iron frame, higher rigidity
  • Sleek design, beautiful appearance
CHM-551P Specifications
Dimensions 1020mm(L) x 1180mm(W) x 1450mm(H)
Weight 556kg
Power Supply AC220V (50Hz, single phase) 1.5kw (average power 350w)
Air Supply 0.5MPa ~0.7MPa
Vacuum Generation Built-in vacuum pump
Mounting Head Quantity 4 heads
Mounting Speed 14400CPH (optimal)
Mounting Accuracy (XY)±0.035mm; CPK≥1.0
Component Height 12mm
Component Type 0201/0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc. (resistor/capacitor/diode/triode/LED/IC, etc.) 0201 to larger component 30*30mm size
PCB Thickness 0.6mm~3.5mm
PCB Size 350mm(L)x270mm(W) (Standard); 600mm(L)x350mm(W) (Optional)
Nozzle Change Automatic nozzle change (13-hole nozzle library)
Control System Linux system, equipped with monitor, keyboard, and mouse
Drive System X&Y axis driven by servo motors; adopting flexible S-curve acceleration and deceleration
Transmission System Ball screw + linear guide
Feeding System 50 Yamaha 8mm standard pneumatic/electric feeder stacks (also suitable for IC tray and stick feeder)
Vision System Snapshot camerax4 (component size applicable: 14mm×14mm); IC camerax1 (component size applicable: 30mm×30mm); Mark camerax2

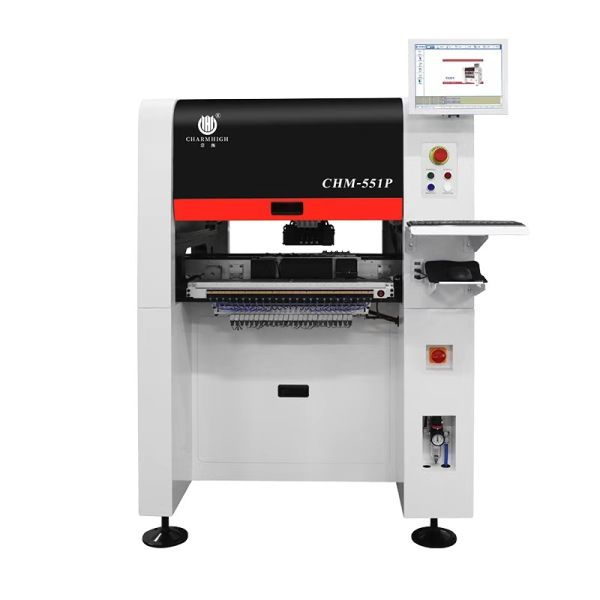

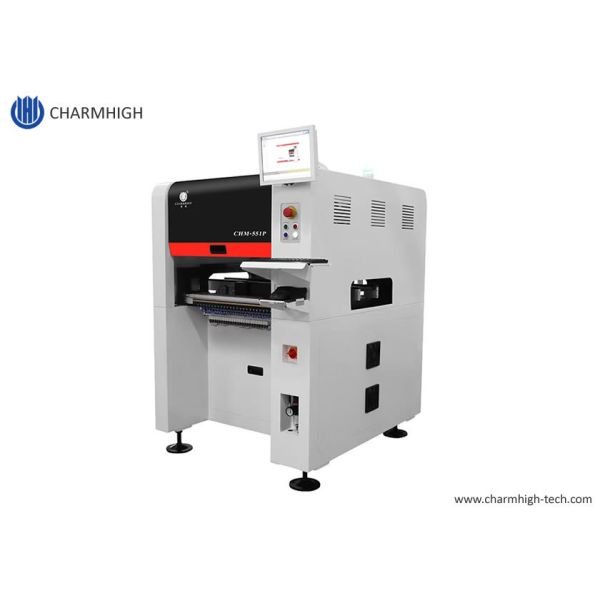

Product Images
Cast-iron Structure 4-head CHM-551P SMD Pick and Place Machine Cast-iron Structure 4-head CHM-551P SMD Pick and Place Machine
Customer Site

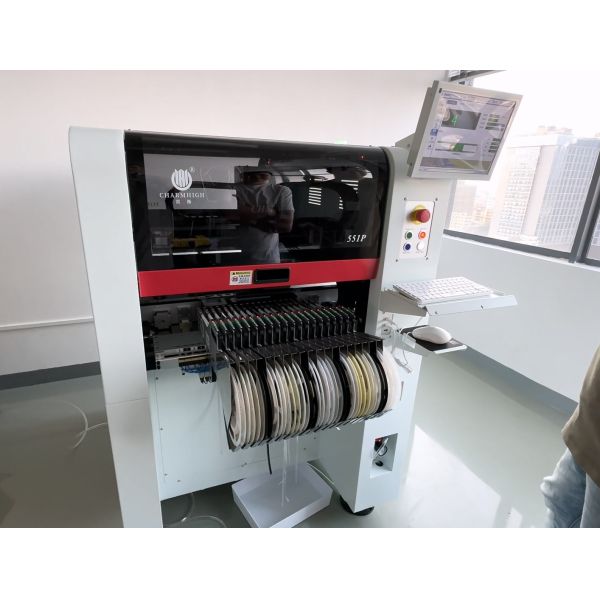

Cast-iron Structure 4-head CHM-551P SMD Pick and Place Machine Cast-iron Structure 4-head CHM-551P SMD Pick and Place Machine Cast-iron Structure 4-head CHM-551P SMD Pick and Place Machine Cast-iron Structure 4-head CHM-551P SMD Pick and Place Machine

Charmhigh SMT, factory supply, prompt delivery.

Charmhigh, top Chinese brand.

Cast-iron Structure 4-head CHM-551P SMD Pick and Place Machine
CHM-551P Parts List
Item Quantity Item Quantity
Pick and place machine 1 Tweezer 1
Nozzles 8 Inner Hexagon Spanner 1
Tool box 1 Lubricating oil 1
Warranty Card 1 Filter 4
User Manual 1 Quick connector 1
Test Report 1 Mouse Pad 1
Brush 1 Power Cable 1
Cast-iron Structure 4-head CHM-551P SMD Pick and Place Machine
Recommended SMT Production Line
  1. 3250 solder paste printer
  2. CHM-551P SMD pick and place robot
  3. CHM-830F reflow oven
Cast-iron Structure 4-head CHM-551P SMD Pick and Place Machine

Please note: The pick and place machine is complete set with all accessories included in the package, machine ready to use! The only thing you need to prepare is an external air compressor (supplying air for feeders and ANC). Please purchase this machine with confidence. Enjoy with your pick and place machine!

Service & Warranty

The complete machine has a warranty period of 1 year from the time of purchase and lifetime service.

We always provide spare parts of machine, factory direct supply with guarantee.

We provide online Q/A and troubleshooting support and technical advice service.

We provide one to one after-sale service. Each machine 100% tested well before ship out.
