Charmhigh 551P SMD Pick and Place Machine Prototyping Small Batch Production CPK≥1.0
Charmhigh 551P SMD Pick and Place Machine Prototyping Small Batch Production CPK≥1.0
Charmhigh 551P SMD Pick and Place Machine Prototyping Small Batch Production CPK≥1.0
Charmhigh 551P SMD Pick and Place Machine Prototyping Small Batch Production CPK≥1.0
Charmhigh 551P SMD Pick and Place Machine Prototyping Small Batch Production CPK≥1.0
Charmhigh 551P SMD Pick and Place Machine Prototyping Small Batch Production CPK≥1.0
Charmhigh 551P SMD Pick and Place Machine Prototyping Small Batch Production CPK≥1.0
Charmhigh 551P SMD Pick and Place Machine Prototyping Small Batch Production CPK≥1.0
Specifications
Feeder :
50pcs Yamaha Feeders (pneumatic & electric feeder)
Net weight :
556kg
Mounting speed :
14400CPH(optimal)
Nozzle :
Auto nozzle changer with 13pcs nozzle library
Operation system :
Linux system (comes with PC and keyboard mouse)
Brand Name :
Charmhigh
Model Number :
CHM-551P
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
$9000
Payment Terms :
T/T,Western Union
Supply Ability :
50 Per month
Delivery Time :
2-5 days
Packaging Details :
wooden box
Component height :
12mm
Dimension :
1020mm(L)x1180mm(W)x1450mm(H)
Frame :
Cast-iron construction
Mounting Accuracy :
(XY) ±0.035mm; CPK≥1.0
Max PCB size :
350mm(L)x280mm(W) (Standard); 600mm(L)x350mm(W) (Optional)
Description
Charmhigh 551P SMD Pick and Place Machine Prototyping Small Batch Production CPK≥1.0
Updated Genius 4 heads Model CHM-551P SMD pick and place machine
High precision cast-iron structure with automatic PCB conveyor SMT pick and place robot.
For Small Batch Production & In-house Researching & Prototyping
0201, 144 pins IC supported. CPK Test support. Economic high-end SMT Chip Mounter with high stability.
Product Introduction
CHM-551P is a 4-head high-precision general-purpose automatic SMT pick and place machine with high-end configuration mechanism and excellent performance at an affordable price. Designed for R&D proofing and SMT small to medium-sized production, this machine delivers professional-grade PCB assembly capabilities while quickly recovering investment costs. The CHM-551P represents the best budget SMT machine for 2026.
This next-generation 4-head SMT pick and place machine is engineered for high-precision SMT assembly, supporting components from 0201 to 5050, BGA, 144 pins IC, including LEDs, ICs, and odd-form parts. Compatible with both electric and pneumatic feeders in 8mm, 12mm, 16mm, 24mm, 32mm and 44mm widths.
Built with a heavy-duty cast-iron frame, this upgraded model delivers superior structural stability, reduced vibration, and significantly improved placement accuracy and speed compared to previous versions.
Applications
  • Small-to-medium batch PCB assembly
  • LED strip and bulb manufacturing
  • Electronics contract manufacturing (EMS)
  • R&D prototyping
  • Educational institutions
  • Growing SMT production lines
Key Features
  • Support CPK test
  • Automatic nozzle change (13 sets nozzle library)
  • Thermal Compensation
  • Automatic conveying
  • Optimal speed: 14400 CPH
  • Cast-iron construction
CHM-551P Specifications
Dimensions 1020mm(L) x 1180mm(W) x 1450mm(H)
Weight 556kg
Power Supply AC220V (50Hz, single phase) 1.5kw (average power 350w)
Air Supply 0.5MPa ~0.7MPa
Vacuum Generation Built-in vacuum pump
Mounting Head Quantity 4 heads
Mounting Speed 14400CPH (optimal)
Mounting Accuracy (XY)±0.035mm; CPK≥1.0
Component Height 12mm
Component Type 0201/0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc. (resistor/capacitor/diode/triode/LED/IC, etc.) 0201 to larger component 30*30mm size
PCB Thickness 0.6mm~3.5mm
PCB Size 350mm(L)x270mm(W) (Standard); 600mm(L)x350mm(W) (Optional)
Nozzle Change Automatic nozzle change (13-hole nozzle library)
Control System Linux system, equipped with monitor, keyboard, and mouse
Drive System X&Y axis driven by servo motors; adopting flexible S-curve acceleration and deceleration
Transmission System Ball screw + linear guide
Feeding System 50 Yamaha 8mm standard pneumatic/electric feeder stacks (also suitable for IC tray and stick feeder)
Vision System Snapshot camerax4 (component size applicable: 14mm*14mm); IC camerax1 (component size applicable: 30mm*30mm); Mark camerax2
Charmhigh 551P SMD Pick and Place Machine Prototyping Small Batch Production CPK≥1.0
Feeder Compatibility
Working with universal standard Yamaha pneumatic feeders & electric feeders (purchase separately):
Options include:
  • 8mm/12mm/16mm/24mm/32mm/44mm electric feeder
  • 8x4mm/12mm/16mm/24mm/32mm/44mm pneumatic feeder
  • Vibration feeder
Charmhigh 551P SMD Pick and Place Machine Prototyping Small Batch Production CPK≥1.0
Charmhigh SMT, factory supply, prompt delivery.
Charmhigh, top Chinese brand.
Charmhigh 551P SMD Pick and Place Machine Prototyping Small Batch Production CPK≥1.0

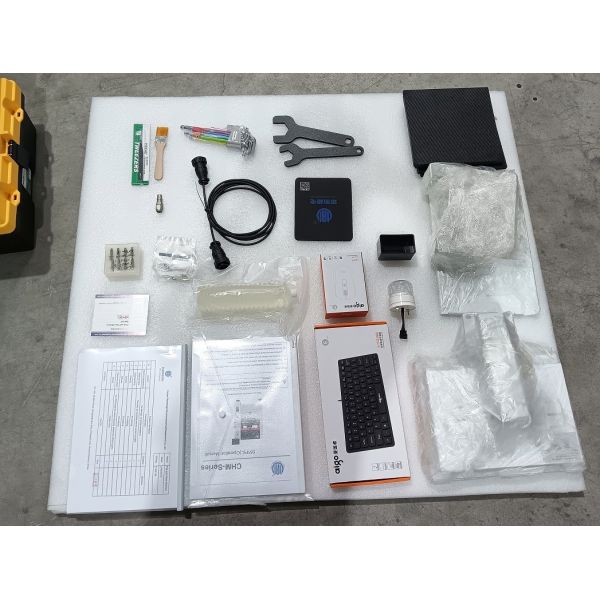

Parts List
Item Quantity Item Quantity
Pick and place machine 1 Tweezer 1
Nozzles 8 Inner Hexagon Spanner 1
Tool box 1 Lubricating oil 1
Warranty Card 1 Filter 4
User Manual 1 Quick connector 1
Test Report 1 Mouse Pad 1
Brush 1 Power Cable 1
Charmhigh 551P SMD Pick and Place Machine Prototyping Small Batch Production CPK≥1.0
Why Choose the Upgraded CHM-551P?
With its cast-iron construction, vertical space-saving design, and enhanced accuracy, the CHM-551P offers industrial-grade SMT placement performance at a competitive price point. 2-4 day lead time with in-stock availability.
Please note:
The pick and place machine is complete set with all accessories included in the package, machine ready to use!
The only thing you need to prepare is an external air compressor (supplying air for pneumatic feeders).
Please purchase this machine with confidence.
Service & Warranty
The complete machine has a warranty period of 1 year from the time of purchase and lifetime service.
We always provide spare parts of machine, factory direct supply with guarantee.
We provide online Q/A and troubleshooting support and technical advice service.
We provide one to one after-sale service. Each machine 100% tested well before ship out.
Technical Support
Kimi's Mobile/WhatsApp: +86 135 106 75756
E-mail: kimi@charmhigh-tech.com
Welcome to follow us on YouTube
If you want to know more information, please contact us by E-mail.
We will respond to you at the first time.
Send your message to this supplier
Send Now
