Specifications
Brand Name :
Charmhigh
Model Number :
TS10 + TM08
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
50 per month
Delivery Time :
6-9 working days
Packaging Details :
wooden box
Solder paste printer :
Full automatic E6
Pick n place mahcine :
Charmhigh TS10,TM08
Reflow oven :
CHM-PC850 (8 zones, up8+down8)
Other machines :
PCB loader + PCB unloader + SMT conveyor
Description
High Performance Full Auto PCB Assembly Line For Electronics Manufacturing
Automatic SMT Production Line for Efficient PCB Assembly
CPK >1.0, support 01005 components
High-precision automatic SMT production line for PCB assembly. Full turnkey SMT line solutions with pick and place, reflow soldering. Compatible with 01005 components, BGA, QFN, and fine-pitch ICs. Ideal for high-mix, high-volume contract electronics manufacturing. With years of experience in SMT equipment manufacturing, Charmhigh Technology delivers reliable, cost-effective, and customizable SMT line solutions for global customers.
SMT Line Configuration
Equipment Model
PCB Loader 250LD
Fully-automatic Solder Paste Printer E6
Conveyor 70cm

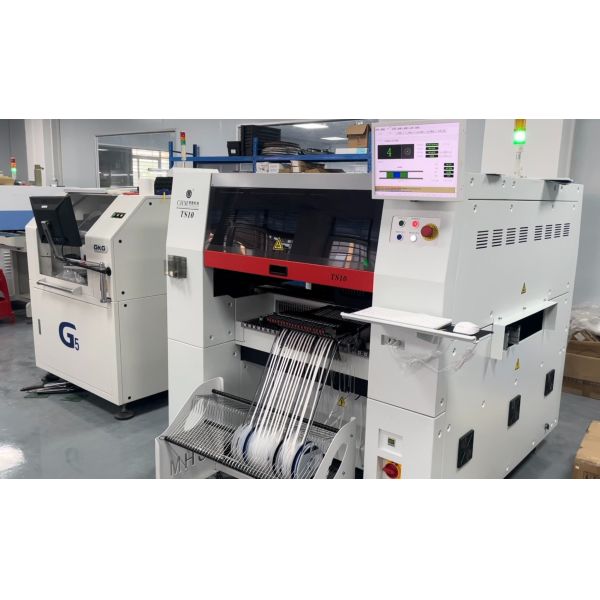

Pick and Place Machine TS10 (10-head)
Conveyor 70cm
Pick and Place Machine TM08 (8-head)
Conveyor 70cm
Reflow Soldering Oven CHM-PC850 (8-zone)
PCB Unloader 250ULD
High Performance Full Auto PCB Assembly Line For Electronics Manufacturing
Customer Site Installation
High Performance Full Auto PCB Assembly Line For Electronics Manufacturing
High Performance Full Auto PCB Assembly Line For Electronics Manufacturing
PCB Assembly Sample
High Performance Full Auto PCB Assembly Line For Electronics Manufacturing
Secure Packaging for Sea Shipment
High Performance Full Auto PCB Assembly Line For Electronics Manufacturing
Service & Warranty

The complete machine has a warranty period of 1 year from the time of purchase and lifetime service. We always provide spare parts of machine, factory direct supply with guarantee. We provide online Q/A and troubleshooting support and technical advice service. We provide one to one after-sale service. Each machine 100% tested well before ship out.

Technical Support
Kimi's Mobile/WhatsApp: +8613510675756
Email: kimi@charmhigh-tech.com
YouTube: www.youtube.com/kimiLiuCharmhigh

If you want to know more information, please contact us by email. We will respond to you at the first time.
