Specifications
Model Number :
CW-F039
Place of Origin :
Guangdong, China
Brand Name :
chaowei
Packaging Details :
Outdoor Omnidirectional Waterproof 2.4G 5.8G Dual Band Fiberglass Wifi Antenna With Cable IPEX Connector Packing:1pcs/pe bag
MOQ :
10-100PCS
Price :
negotiable
Certification :
BSCI CE Fcc RoHS Trade Mark Patent ISO9001:2008
Payment Terms :
T/T and other payments can also be negotiated.
Supply Ability :
5000 Pieces per Month
Delivery Time :
1-7 work days
Antenna Name :
outdoor omnidirectional antenna
Frequency range :
2400-2500MHz/5100-5850MHz
Gain :
5dBi
VSWR :
≤2.0
Polarization :
Vertical
Iput connector type :
i-PEX or Requested
Antenna color :
Black,White
Dimensions :
300mm
Operating temperature :
-45~85℃
Description

Waterproof Outdoor Omnidirectional Antenna 2.4G 5.8G Dual Band Fiberglass 2500MHz

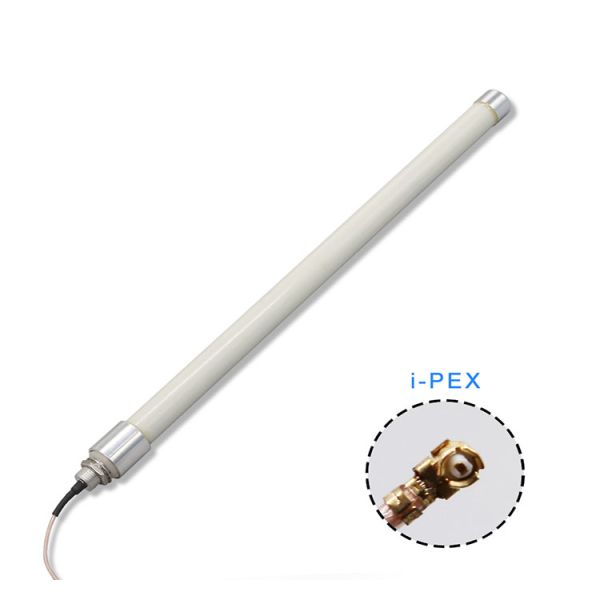

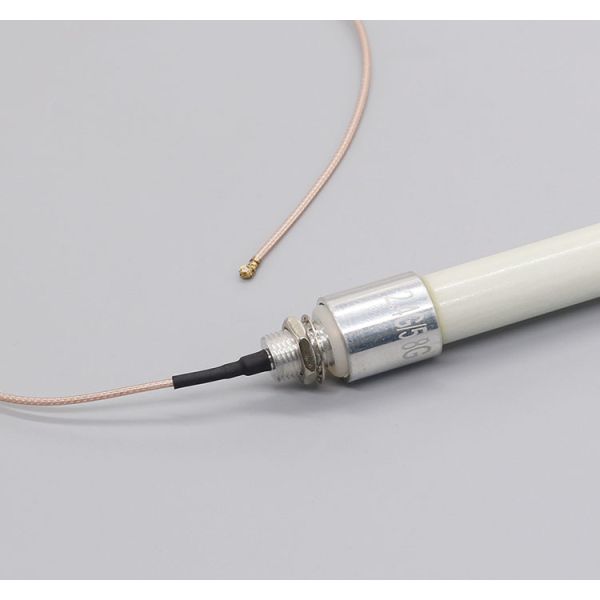

Outdoor Omnidirectional Waterproof 2.4G 5.8G Dual Band Fiberglass Wifi Antenna With Cable IPEX Connector

Electrical Specifications

Antenna Name

Outdoor Omnidirectional Waterproof 2.4G 5.8G Dual Band Fiberglass Wifi Antenna With Cable IPEX Connector

Frequency Range(MHz)

2400-2500MHz/5100-5850MHz

Gain (dBi)

5dBi

VSWR

≤2.0

Input impedance(Ω)

50

Polarization

Vertical

Lightning Protection

DC Ground

Cable

RG316U

Iput connector type

SMA Male or Requested

Mechanical Specifications

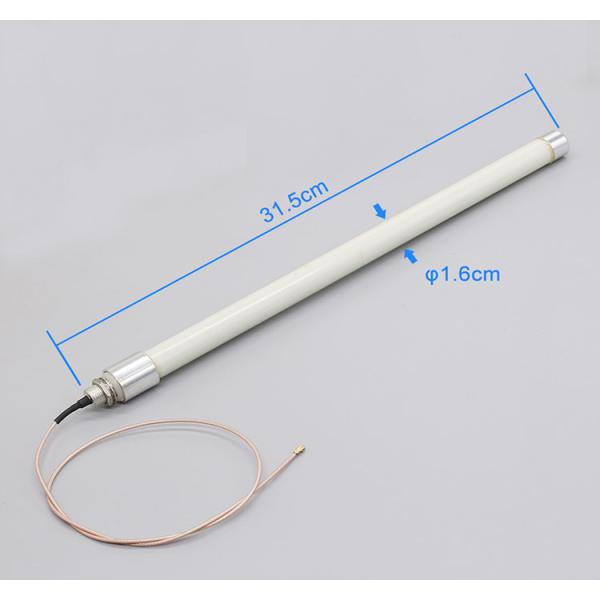

Dimensions

300x16mm

Openrating temperature(℃)

—45~85

Antenna color

Black,White

Antenna cable length

Requested

Detailed Images

Waterproof Outdoor Omnidirectional Antenna 2.4G 5.8G Dual Band Fiberglass 2500MHzWaterproof Outdoor Omnidirectional Antenna 2.4G 5.8G Dual Band Fiberglass 2500MHzWaterproof Outdoor Omnidirectional Antenna 2.4G 5.8G Dual Band Fiberglass 2500MHz

Hot Products

Waterproof Outdoor Omnidirectional Antenna 2.4G 5.8G Dual Band Fiberglass 2500MHz

Waterproof Outdoor Omnidirectional Antenna 2.4G 5.8G Dual Band Fiberglass 2500MHz


Waterproof Outdoor Omnidirectional Antenna 2.4G 5.8G Dual Band Fiberglass 2500MHz

Waterproof Outdoor Omnidirectional Antenna 2.4G 5.8G Dual Band Fiberglass 2500MHz

Waterproof Outdoor Omnidirectional Antenna 2.4G 5.8G Dual Band Fiberglass 2500MHz

FAQ

Q:Are you a manufacturer or a trading company?

A:We are a manufacturer since year 2008 and have been in RF fields for more than 10 years.

Q: Can I get some samples?

A: Yes, sample order is available for quality check and market test, and it will be freight collect

payment.

Q: Can your company accept customize?

A: Welcome OEM & ODM.As you know, many antennas are customized based on project and

application,and we have R&D capability to meet customization requirements.

Q:What's your company MOQ?

A: This we can discuss according to different product. Most of our standard products, MOQ will

be 1000PCS.

Q: What’s your payment term?

A: We usually accept T/T,PAYPAL and Western Union as the main payment term, and other

payments can also be negotiated.
