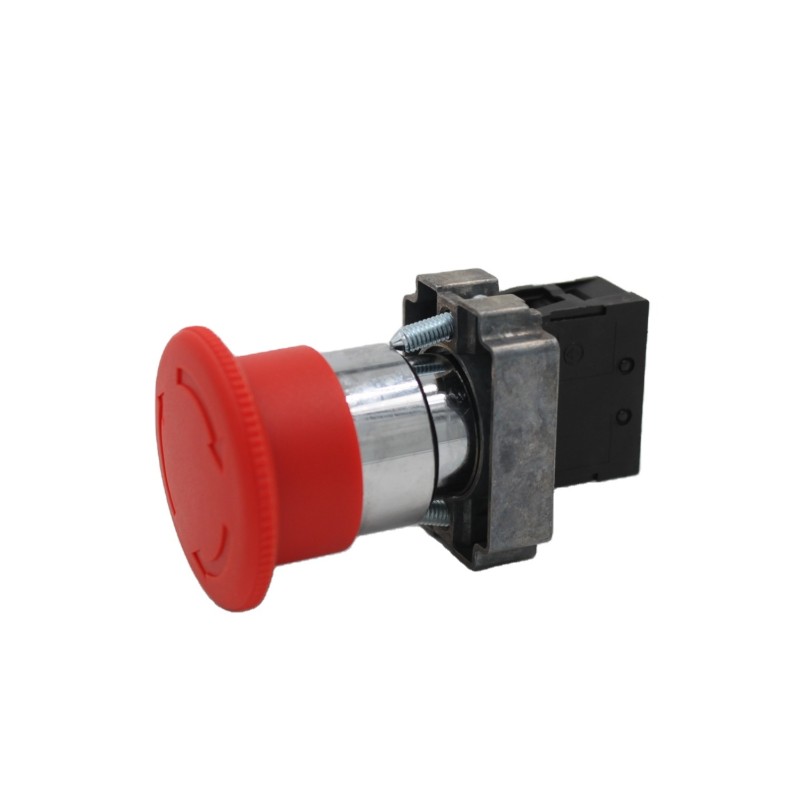

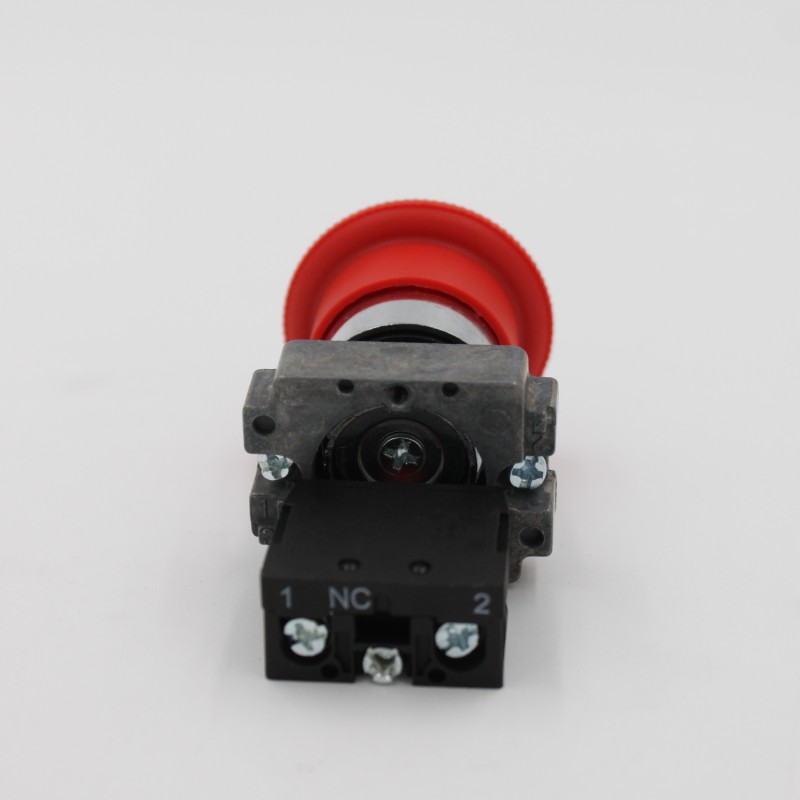

Xb2 Emergency Push Button Switch with 22mm Emergency Push Button Switch XB2-BS542
Xb2 Emergency Push Button Switch with 22mm Emergency Push Button Switch XB2-BS542
Xb2 Emergency Push Button Switch with 22mm Emergency Push Button Switch XB2-BS542
Xb2 Emergency Push Button Switch with 22mm Emergency Push Button Switch XB2-BS542
Xb2 Emergency Push Button Switch with 22mm Emergency Push Button Switch XB2-BS542
Xb2 Emergency Push Button Switch with 22mm Emergency Push Button Switch XB2-BS542
Xb2 Emergency Push Button Switch with 22mm Emergency Push Button Switch XB2-BS542
Xb2 Emergency Push Button Switch with 22mm Emergency Push Button Switch XB2-BS542
Xb2 Emergency Push Button Switch with 22mm Emergency Push Button Switch XB2-BS542
Xb2 Emergency Push Button Switch with 22mm Emergency Push Button Switch XB2-BS542
Xb2 Emergency Push Button Switch with 22mm Emergency Push Button Switch XB2-BS542
Xb2 Emergency Push Button Switch with 22mm Emergency Push Button Switch XB2-BS542
Specifications
Operation type :
Mushroom type
Max. Voltage :
240V
Price :
$0.95 / piece
Material :
Plastic+Silver Alloy
Model Number :
XB2-BS542
Terminal :
Screw Terminbal
Voltage :
24V,48V,110V,220V,380V
Product name :
Emergency Push Button Switch
Protection Level :
IP65
Max. Current :
10A
LED :
No
Certification :
CE,TUV, CE
MOQ :
15 pieces
Whether The Smart :
No
Brand Name :
MEH
Function :
Momentary 1NC
Color :
Red
Button color :
Red / Green
Place of Origin :
Zhejiang, China
Contact Material :
Silver Plated Gold
Description

Xb2 Emergency Push Button Switch with 22mm Emergency Push Button Switch XB2-BS542

Xb2 Emergency Push Button Switch with 22mm Emergency Push Button Switch XB2-BS542

XB2 Series Metal Push Button Switch

Product Description

Technical parameters:

Ui Nominal Insulation Voltage(Ui) 440V
Thermal Current(Ith) 10A Temperature no more than rated current
Rated Voltage(V) 24V 48V 110V 220V 380V 500V
Working Current AC
50/60Hz		 AC-12 10A 10A 10A 6A 6A 6A
AC-15 10A 10A 6A 3A 1.8A 1.4A
DC DC-12 8A 4A 2.2A 1.1A 1.1A 1.1A
DC-13 4A 2A 1.1A 0.6A 0.6A 0.6A
Contact Material Silver Alloy


Lamp Specifications:

Power Type AC/DC LED Light-emitting diodes
Rated Voltage AC/DC 6V AC/DC 12V AC/DC 24V
AC 110V AC 220V AC 380V
Lamp Life 40,000 Hours
Lamp Color R/G/Y/W/B/b

The Installation Hole Size:

Xb2 Emergency Push Button Switch with 22mm Emergency Push Button Switch XB2-BS542

Push Button Type A B C
Normal Type,Key-Lock ≥50mm ≥40mm 22mm
Selector Switch Type ≥55mm ≥40mm
Mushroom Type ≥50mm ≥50mm

Model Specification:
Contact Structure:
10 ---1NO;
01 ---1NC;
11 ---1NO1NC;
22 ---2NO2NC;
33 ---3NO3NC;
44 ---4NO4NC;
Normal Closed and Normal open can be combined at will;

Operating Type:
GN ---Momentary high type
BN --- Momentary flat type
BNZS ---Alternate type
X ---Selector Switch
XB ---Lever Switch
Y ---Key-Lock type
M --- Momentary type
ZS ---Emergency Type
DN ---llluminated Type
DNZS --- llluminated alternate Type

Express selector and key-lock operation position:
21 ---Two Position maintain type
22 ---Two Position momentary type
31 ---Three Position maintain type
33 ---Three Position momentary type

Color: Red/Green/Yellow/White/Blue/black

Protective degree: FP IP67; No letter means IP40

Normal working conditions:

1.Environment Temperature:-25℃~+55℃
2.Air Relative Humidity:≤98%
3.Normal work when the vibration frequency is 2~80Hz,the acceleration is 0.79g
4.Pollution grade is three,and installed sort is Ⅲ,protection grade is above IP65.
5.Altiude:≤2000m.
6.Mechanical Life: Momentary:>2000000 times: alternate, selector>1000000 times: key-lock, emergency>1000000 times.
7.Shock Resistance: mushroom button 8g,buttons and LED 15g(40Hz<Frequency<500Hz)
8.Workability of contact point:AC-15:A600 or Ue=240V and Le=3A
DC-13:Q600 or Ue=250V and Le=0.27A comply IEC60947-5-1
9.Rated insulation voltage: Ui=440V,pollution degree 3,comply to IEC60947-5-1,Ui=600V

XB2 series Push Button Switch Related Products(E-Catalogue):

Xb2 Emergency Push Button Switch with 22mm Emergency Push Button Switch XB2-BS542

Xb2 Emergency Push Button Switch with 22mm Emergency Push Button Switch XB2-BS542

Xb2 Emergency Push Button Switch with 22mm Emergency Push Button Switch XB2-BS542

Xb2 Emergency Push Button Switch with 22mm Emergency Push Button Switch XB2-BS542

Xb2 Emergency Push Button Switch with 22mm Emergency Push Button Switch XB2-BS542

Xb2 Emergency Push Button Switch with 22mm Emergency Push Button Switch XB2-BS542

XB2 Series Metal Push Button Switch Head parts:

Xb2 Emergency Push Button Switch with 22mm Emergency Push Button Switch XB2-BS542Xb2 Emergency Push Button Switch with 22mm Emergency Push Button Switch XB2-BS542

XB2 Series Push Button Switch Contact Block parts:

Xb2 Emergency Push Button Switch with 22mm Emergency Push Button Switch XB2-BS542

Certifications

Xb2 Emergency Push Button Switch with 22mm Emergency Push Button Switch XB2-BS542

Xb2 Emergency Push Button Switch with 22mm Emergency Push Button Switch XB2-BS542


Xb2 Emergency Push Button Switch with 22mm Emergency Push Button Switch XB2-BS542
