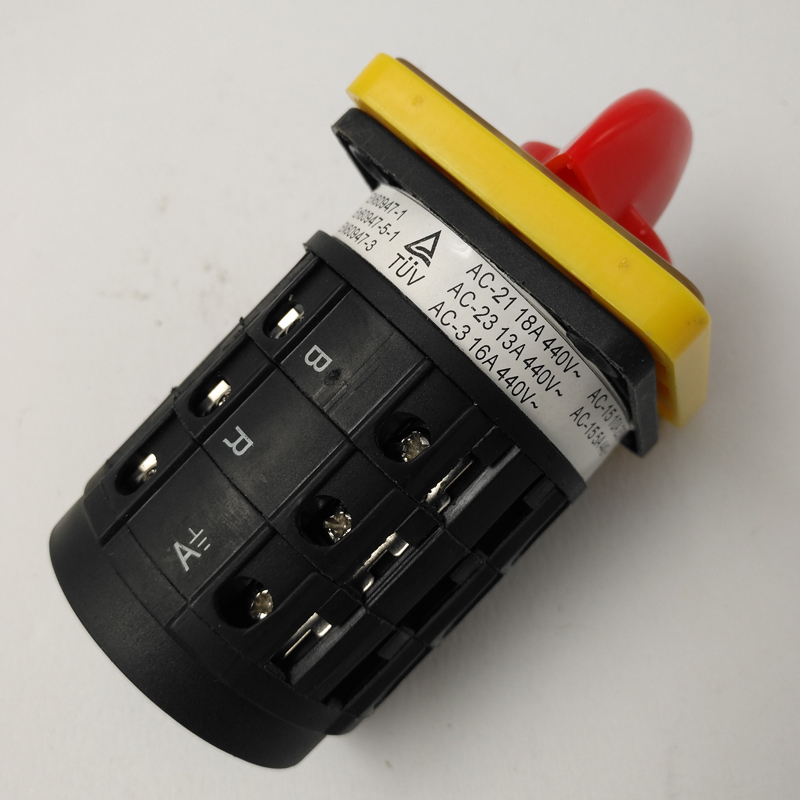

High Quality 3Pole 4Position 20A Rotary Ammeter Cam Switch Changeover Selector Switch Export to Southeast Asian Market

Specifications

Model Number :

LW26D-20/3

Brand Name :

MEH

Type :

Changover Switch

Switch Combination :

2NO2NC

Number Of Sections :

Certification :

CE,TUV

Max. Current :

20A

Rotation Range :

30°/45°/60°/90°

Application :

Industrial Control, Electric Equipment, Circuit Control, Volt-Amp selector switch

Position :

4 Positions

Product Name :

Cam Switch

Mechanical Life :

0.1*10^6

Terminal Type :

Screw Terminal

Function :

Circuit Control

Price :

$3.10 / piece

Whether The Smart :

Place of Origin :

Zhejiang, China

MOQ :

500 pieces

IP level :

IP53

Max. Voltage :

440V

Material :

Plastic, Metal, Copper, Silver, ABS+Brass+silver contact

Description

LW26D series Rotary Volt-Amp Selector Switch

Product Description

The LW26D series Rotary Cam Switch mainly applies to 440V and below, AC 50Hz or 240V,Rated current up to 20A and below DC Voltage. For breaking and closing, change-over of circuits under Infrequent manual operation. And the typical application are: control switch of 3 phase motors, control switch gear, control switch of instruments, and change-over switch of machinery and welding machine.

General Features:

1. Wide range of function for switching, it has 20A

2. Capability for switching of resistive, or inductive, or mixed loads.

3. The most economical way for switching electrical loads.

4. Made of the best materials with high mechanical, electrical and thermal resistance.

5. Double-break bimetallic contacts made of silver alloy and Copper.

6. Terminals with screws provided with cable clamp.

7. Fast and easy installation and wring.

8. Capability to produce special Cam Switches based on customer requirements.

Advantage:

LW26D series Rotary Cam Switches have the characteristics of small size, multi-function, compact structure, exquisite material selection, good insulation, flexible conversion operation, safety and reliability, and novel appearance.
LW26D series Rotary Cam Switches have many different types of operation handle to choose by customer(“R”,”I”,”R2”,”B”,”F”,”L”,”P”and “K” types)
LW26D series Rotary Cam Switches can produce the Maximum number of sections has 1~12 poles (63A only have 8 poles)
LW26D series Rotary Cam Switches can produce transform angle: 30°/45°/60°/90°
LW26D series Rotary Cam Switches have many different position of panel mounting to choose by customer.Such as: “0-1”,”0-1-2”,”1-0-2”,”0-1-2-3”,”0-1-2-3-4”,”L3L1-L2L3-L1L2-0-L1N-L2N-L3N”,”0-L1N-L2N-L3N”,”0-L1L2-L2L3-L3L1”,”0-L1-L2-L3” and so on…

Technical parameters:

Rated thermal current	ITH	A	10
Rated working voltage	Ue	V	240
Rated working current	Le
AC-15		A	2.5 1.5
DC-13		A	0.27

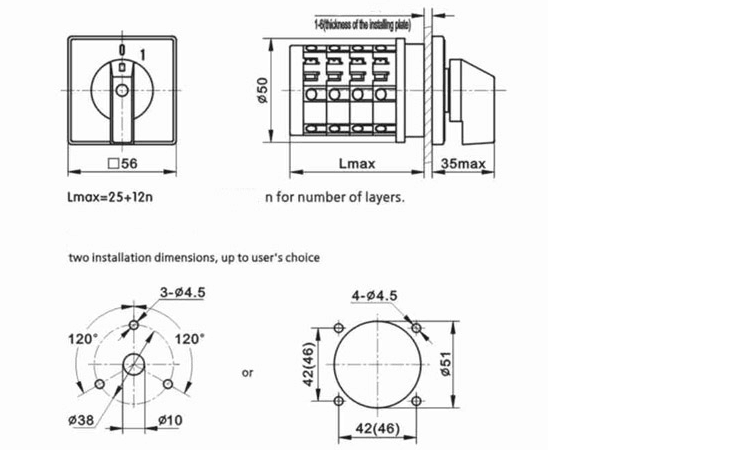

Dimensions and installation dimensions:

Handle operation and position:

Operation method	Feature Code	Handle position
Momentary Type	A	0°←30°	0°←45°	0°←60°	0°←90°
	B	30°→0°←30°	45°→0°←45°	60°→0°←60°	90°→0°←90°
	X	60°→30°→0°←30°←60°	90°→45°→0°←45°←90°
	Y	90°→60°→30°→0°←30°←60°←90°
Position Maintain Type	C	0° 30°	0° 45°	0° 60°
	D	30° 0° 30°	45° 0° 45°	60° 0° 60°
	E	30° 0° 30° 60°	45° 0° 45° 90°	60° 0° 60° 120°
	F	60° 30° 0° 30° 60°	90° 45° 0° 45° 90°	60° 0° 60° 120° 180°
	G	60° 30° 0° 30° 60° 90°	90° 45° 0° 45° 90° 135°	120° 60° 0° 60° 120° 180°
	H	90° 60° 30° 0° 30° 60° 90°	135° 90° 45° 0° 45° 90° 135°
	I	90° 60° 30° 0° 30° 60° 90° 120°	135° 90° 45° 0° 45° 90° 135° 180°
	J	120° 90° 60° 30° 0° 30° 60° 90° 120°
	K	120° 90° 60° 30° 0° 30° 60° 90° 120° 150°
	L	150° 120° 90° 60° 30° 0° 30° 60° 90° 120° 150°
	M	150° 120° 90° 60° 30° 0° 30° 60° 90° 120° 150° 180°
	N		45° 45°	30° 30°
	P				90° 0° 90°
	T				0° 90°
	V				90° 0°
	R				270° 0° 90° 180°
Position Momentary Type	Q	30° 0°←30°	45° 0°←45°
	S	30°→0° 60°	90° 0°←45°
	W		90°→45° 0° 45°←90°
	Z	120°→90° 0°←30°	135°→90° 0°←45°

Normal working conditions:

1. Working temperature: -25°C~+40°C;the average temperature mustn’t be pass 35°C

2. Working height: ≤2,000m

3. Relative humidity: ≤50% with highest temperature +40°C,but allow higher humidity with low temperature less than 40°C.(eg. humidity 90%----teperature20°C)

Classification

1. Classified by utilization, control and load switch.

Motor switch Control switch

2. Classified by operation limited movement

Spring return Limited movement with spring return

3. Classified by contact system switch with limited movement

has 1~12 poles (63A only have 8 poles)

Switch with spring return has 1~3 poles

Motor control switch has 1~6poles

4. Classified by panel

Square panel, rectangular panel, circular panel (only 20A)

Certifications

Packaging & Shipping
