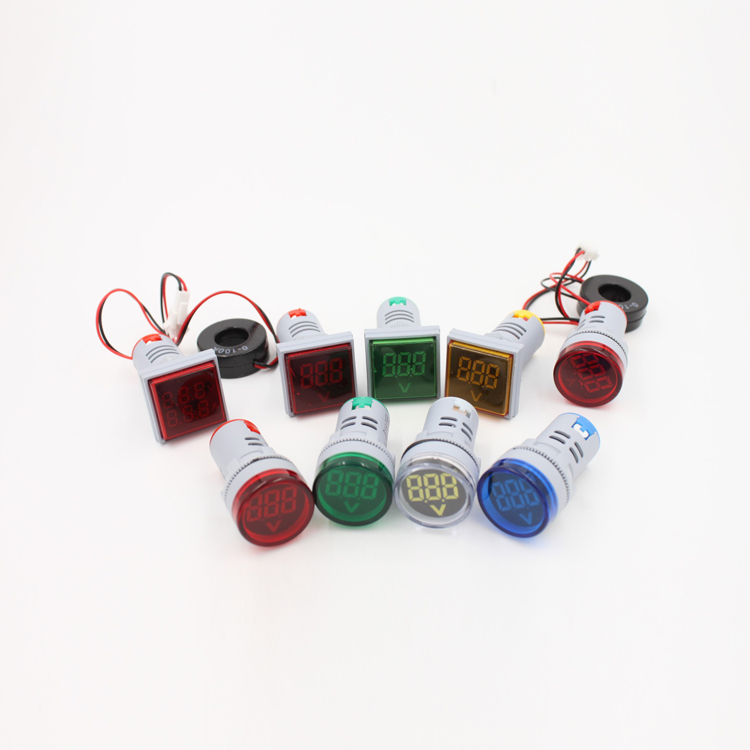

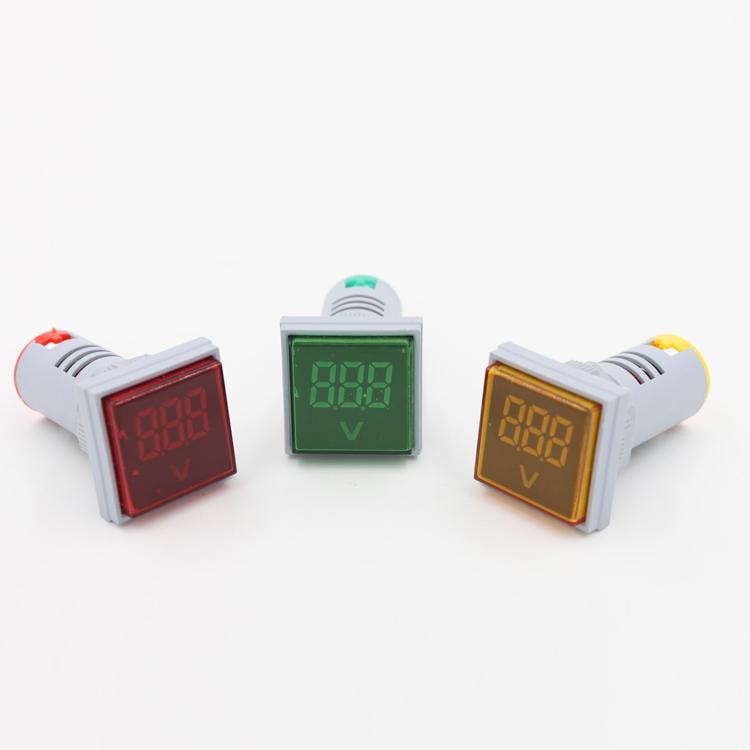

220V Mini Digital Voltage Meter with 22mm LED Indicator Lamp Single Phase Display for Square Digital Volt Meter

Specifications

Brand Name :

MEH

Feature :

Led Display

Product name :

Indicator Lights digital volmeter

Terminals :

Screw Terminals

MOQ :

5000 pieces

Max. DC Current :

40 A

Max. DC Voltage :

100V

IP Level :

IP53

Price :

$0.75 / piece

Dimensions :

22*50.5mm

Display Type :

Digital Only

Parameters Measured :

AC Voltage, DC Voltage

Model Number :

AD16-22DFV

Working Life :

>=30000 Hours

Accuracy Class :

0.5

Operating Temperature :

-25℃~65℃

Max. Ac Voltage :

500V AC

Phase :

Single Phase

Measuring Range :

AC 60-500V

Isolation Voltage :

500 V

Usage Frequency :

50~60Hz

Material :

ABS

Application :

Voltage Measurement

Usage :

Industrial Inspection

Max. AC Current :

100 A

Power Source :

220V AC

Light Color :

Red,Green,yellow,White,blue

Place of Origin :

Zhejiang, China

Type :

Panel Ammeter

Description

Mini digital AC Voltmeter Voltage Meter AD16-22D 50-500V AC

22mm LED Indicator Signal Warning Light Lamp with Red/Green/Yellow/Blue/White Color

Note:

1.we have 0-600V 60-500V AC voltmeter.
2.we accept Customized and samples.
3.we have all kinds of DC/AC voltmeter DC 0-30V-100V-300V 4.5-120V 2.5-30V 4.5-30V.

Main technical parameters:
1: Power rating: 0.5W
2: Digital display AC voltmeter + signal lamp
3: The display character is high 11mm
4: Shape size: reference picture size map
5: Aperture size: φ22mm
6: Measuring voltage range: AC50-500V(We have DC 6-100V AC 0-100A)
The actual measurement can reach AC50-500V
7: Working temperature: -25℃~+65℃
8: Air relative temperature≤98%
9.Color: Red Blue Yellow Green White
10.size:22*50.5mm

Product Name	22mm LED AC Voltage Indicator lamp
Model Number	AD16-22DFV
Display Type	LED Digital Only
Head Shape	Flat round or square
Mounting hole size	22mm
Measuring Range	AC50V-500V
Accuracy Class	±2% V
Supply Voltage	220V
Operating Temperature	-25℃~+65℃
Dimensions	29mm21mm56mm
Voltage Measuring Range	AC 50-500 V
Color	Red Green Yellow Blue White
Frequency compatibility range	50-60 HZ
Ampere Measuring Range	2% ± V
Customized support	OEM, ODM, OBM, Software reengineering

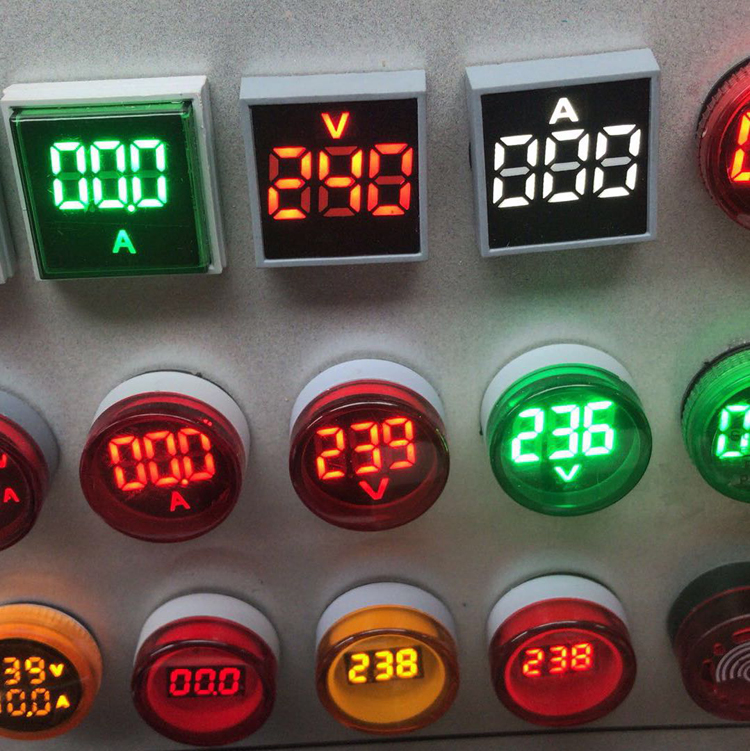

Similar Mini digital AC Voltmeter / Ammeter AD16-22D LED Indicator Signal Light Lamp:
