Ad16 22DS Mini Digital Voltmeter 230V AC Voltmeter Indicator Light 22mm Digital Indicator Lamp Circular Mini Voltage Meter

Specifications

Max. AC Current :

100 A

Max. DC Voltage :

100V

Feature :

Led Display, Durable

Terminals :

Screw Terminals

Price :

$0.71 / piece

Insulation Resistance :

20 MΩ

Place of Origin :

Zhejiang, China

Application :

Voltage Measurement, Industrial Measurement

Material :

ABS, ABS

Operating Temperature :

-25℃~55℃

Rated Operating Current :

<=20mA

Type :

Mini Voltmeter

Usage Frequency :

50~60Hz

Accuracy Class :

0.5

Usage :

Industrial Inspection

IP Level :

IP53

Working Life :

>=30000 Hours

Brand Name :

MEH

Phase :

Single Phase

Brightness :

>=100cd/m2

Model Number :

AD16-22D

Parameters Measured :

DC Current, AC Voltage, DC Voltage, AC CURRENT, Frequency, TEMPERATURE

Product name :

22mm indicator lamp

Max. DC Current :

100 A

Measuring Range :

AC 60-500V

Dimensions :

29*21*52mm(1.14*0.83*2.05in)

Power Source :

220V AC, 110V AC

MOQ :

5000 pieces

Max. Ac Voltage :

500VAC

Display Type :

Digital Only

Light Color :

Red,Green,yellow,White,blue

The Voltage fluctuation :

+-20%(Above 110V)

Description

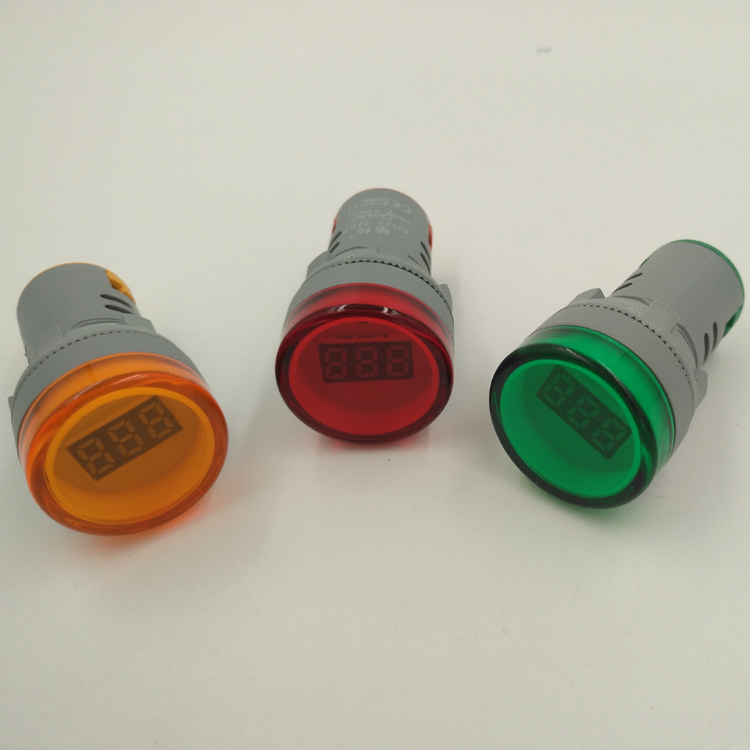

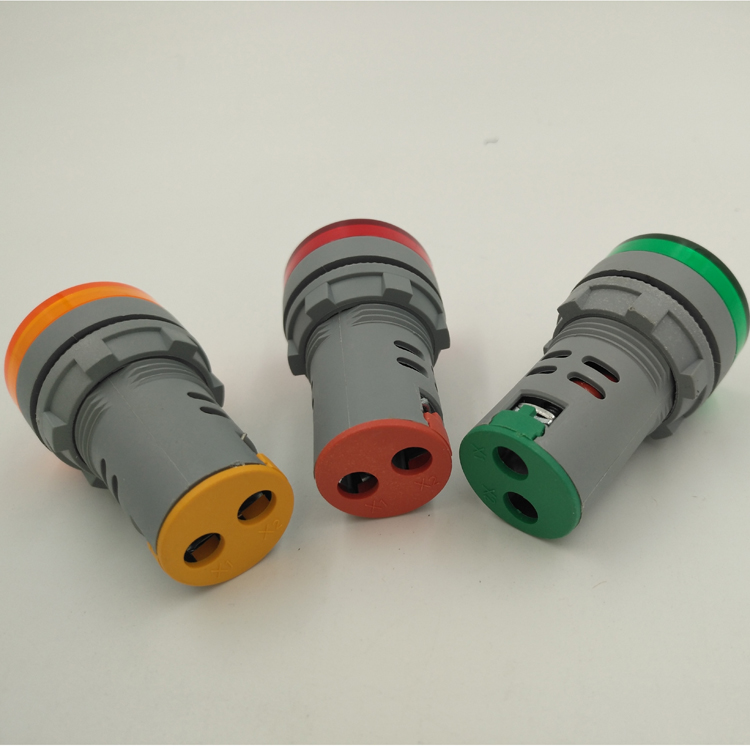

Mini digital AC Voltmeter Voltage Meter AD16-22D 50-500V AC

22mm LED Indicator Signal Warning Light Lamp with Red/Green/Yellow/Blue/White Color

Product Description

1.we have 0-600V 60-500V AC voltmeter.

2.we accept Customized and samples.
3.we have all kinds of DC/AC voltmeter DC 0-30V-100V-300V 4.5-120V 2.5-30V 4.5-30V.

Main technical parameters:
1: Power rating: 0.5W
2: Digital display AC voltmeter + signal lamp
3: The display character is high 11mm
4: Shape size: reference picture size map
5: Aperture size: φ22mm
6: Measuring voltage range: AC50-500V(We have DC 6-100V AC 0-100A)
The actual measurement can reach AC50-500V
7: Working temperature: -25℃~+65℃
8: Air relative temperature≤98%
9.Color: Red Blue Yellow Green White
10.size:22*50.5mm

Type	Indicator Lights volmeter
Input Voltage	10-600V
Color	Red, Orange, Blue, Green ,White
Diameter	22mm
Life	≥30,000h
Brightness	≥60cd/Square Meters
Lamp Body Material	Plastic
Beam Angle	360°
Colors	red /green /yellow /white
Certifications	Certifications ISO9001, CE, CQC, ROHS, etc.

Similar Mini digital AC Voltmeter / Ammeter AD16-22D LED Indicator Signal Light Lamp:

Certifications

Packaging & Shipping

Our Services
