10X38 1A to 32A 1000V DC Solar PV Fuse Holder GPV Thermal Porcelain Fuse Base Switch with Indicator Lamp
10X38 1A to 32A 1000V DC Solar PV Fuse Holder GPV Thermal Porcelain Fuse Base Switch with Indicator Lamp
10X38 1A to 32A 1000V DC Solar PV Fuse Holder GPV Thermal Porcelain Fuse Base Switch with Indicator Lamp
10X38 1A to 32A 1000V DC Solar PV Fuse Holder GPV Thermal Porcelain Fuse Base Switch with Indicator Lamp
10X38 1A to 32A 1000V DC Solar PV Fuse Holder GPV Thermal Porcelain Fuse Base Switch with Indicator Lamp
10X38 1A to 32A 1000V DC Solar PV Fuse Holder GPV Thermal Porcelain Fuse Base Switch with Indicator Lamp
10X38 1A to 32A 1000V DC Solar PV Fuse Holder GPV Thermal Porcelain Fuse Base Switch with Indicator Lamp
10X38 1A to 32A 1000V DC Solar PV Fuse Holder GPV Thermal Porcelain Fuse Base Switch with Indicator Lamp
10X38 1A to 32A 1000V DC Solar PV Fuse Holder GPV Thermal Porcelain Fuse Base Switch with Indicator Lamp
10X38 1A to 32A 1000V DC Solar PV Fuse Holder GPV Thermal Porcelain Fuse Base Switch with Indicator Lamp
10X38 1A to 32A 1000V DC Solar PV Fuse Holder GPV Thermal Porcelain Fuse Base Switch with Indicator Lamp
10X38 1A to 32A 1000V DC Solar PV Fuse Holder GPV Thermal Porcelain Fuse Base Switch with Indicator Lamp
Specifications
Safety Standards :
IEC/EN60269.6/TUV
Type :
DC 1000V 1A to 32A Fuse Holder
Breaking Capacity :
20KA
Model Number :
PV-32X
Rated voltage :
DC1000V
MOQ :
3000 pieces
Place of Origin :
Zhejiang, China
Time Constant :
1-3ms
Brand Name :
OEM
Product name :
Solar DC PV Fuse Holder
Color :
White
Material :
Ceramic, Copper or Silver
Pole :
1P
Certificate :
CE, TUV
Price :
$0.90-0.95 / piece
Rated current :
1-32A
Size :
10*38mm
Application :
PV system
Description
Product Description

10X38 1A to 32A 1000V DC Solar PV Fuse Holder gPV Thermal Porcelain Fuse Base Switch

Our special PV Fuses enable you to protect various aspects of your PV power generation. This can be a string inverters, central inverters or even the modules directly to protect your circuits in combiner boxes. Use of these fuses range from free-standing solar farms, which have high ambient temperatures requirements, to residential installations, where compact size is important.

Our specially developed fuses for photovoltaic systems trip reliably and in the case of minor over currents do not trip prematurely. We have a broad range of products suited for DC voltages as high as 1500 V. This covers almost all of the requirements for PV based power generation.

These Photovoltaicfuses come in small packages while maintaining the necessary critical high voltage rating

.

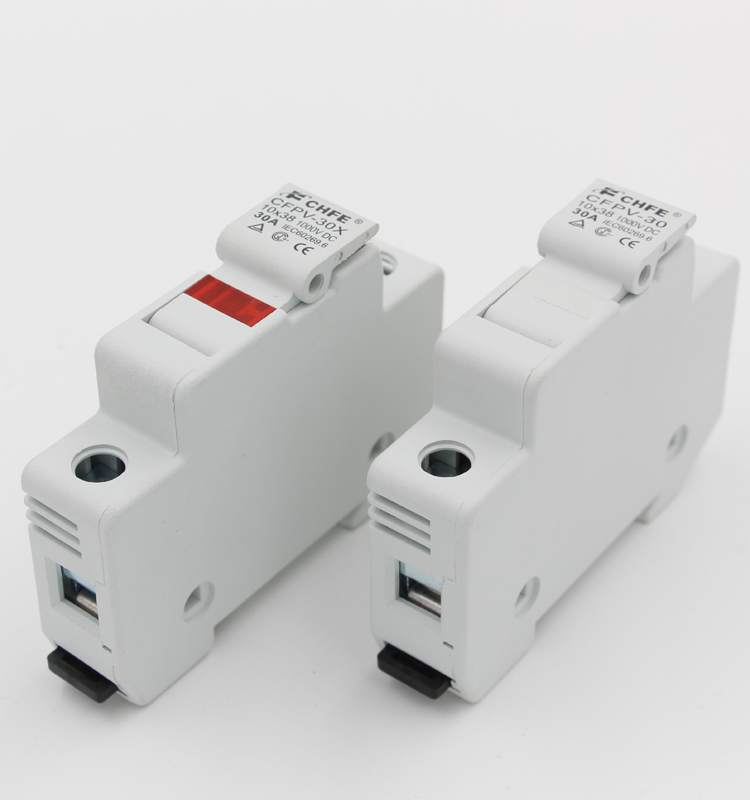

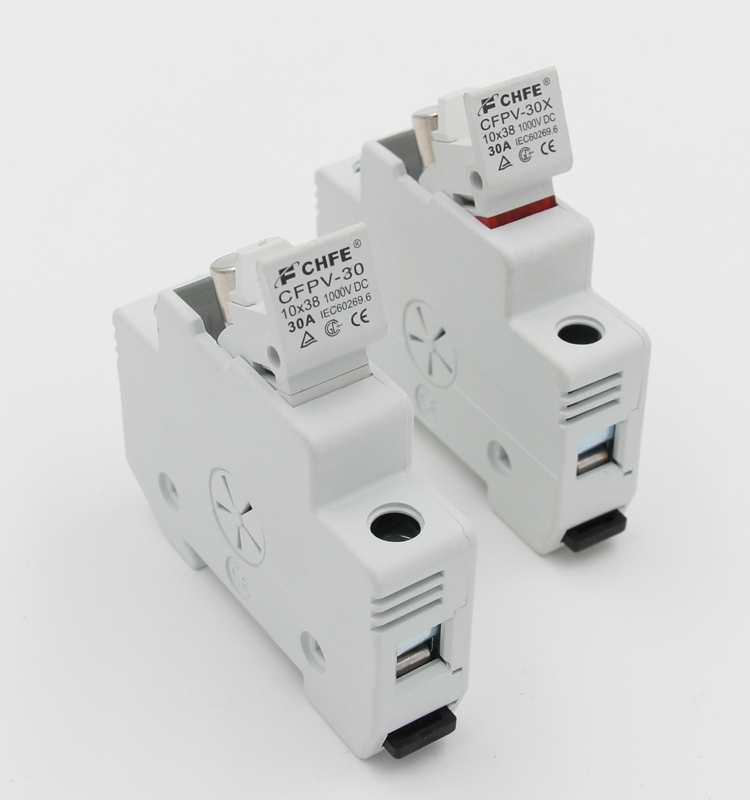

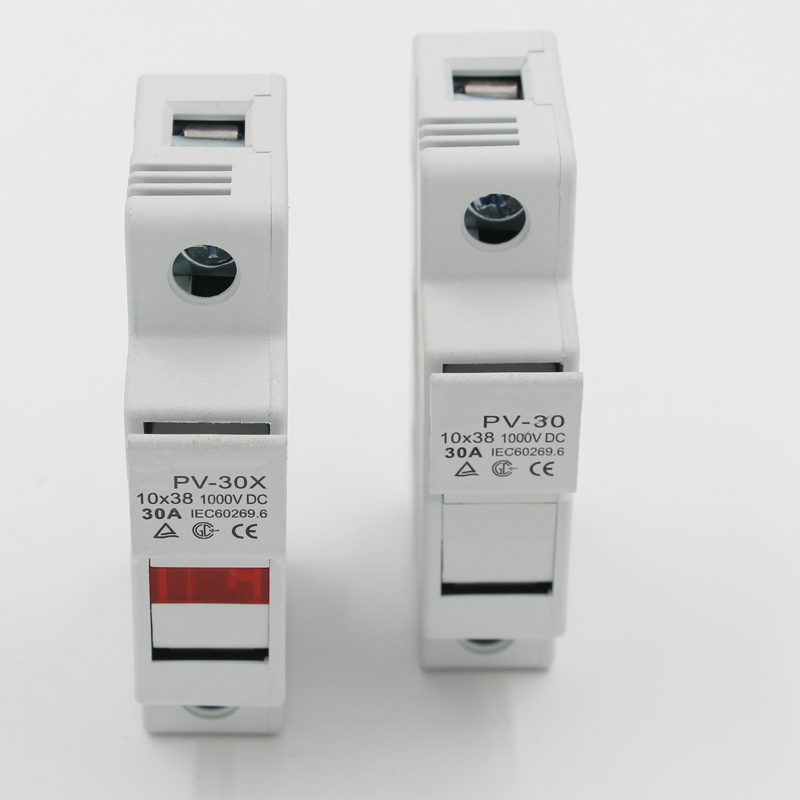

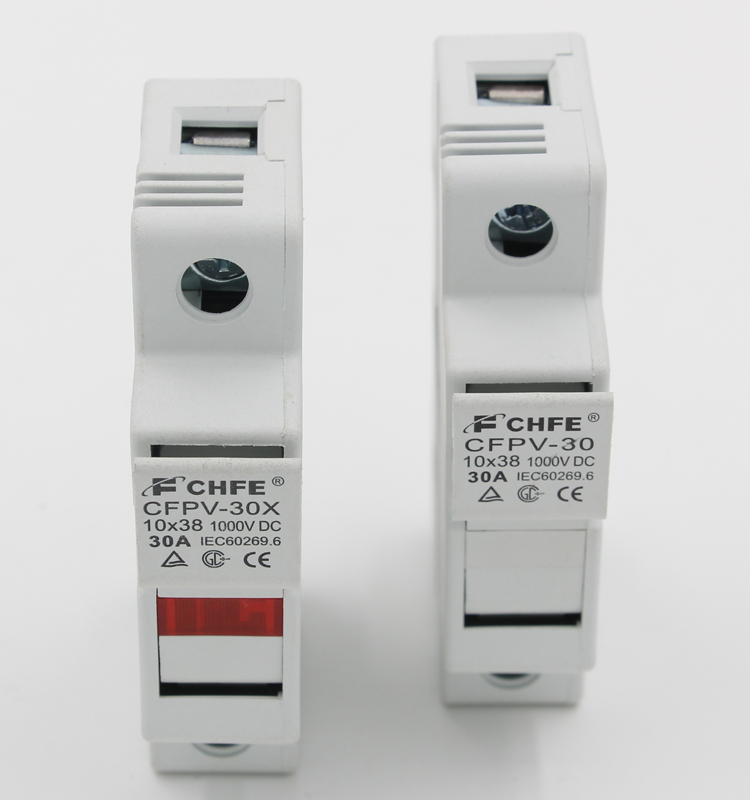

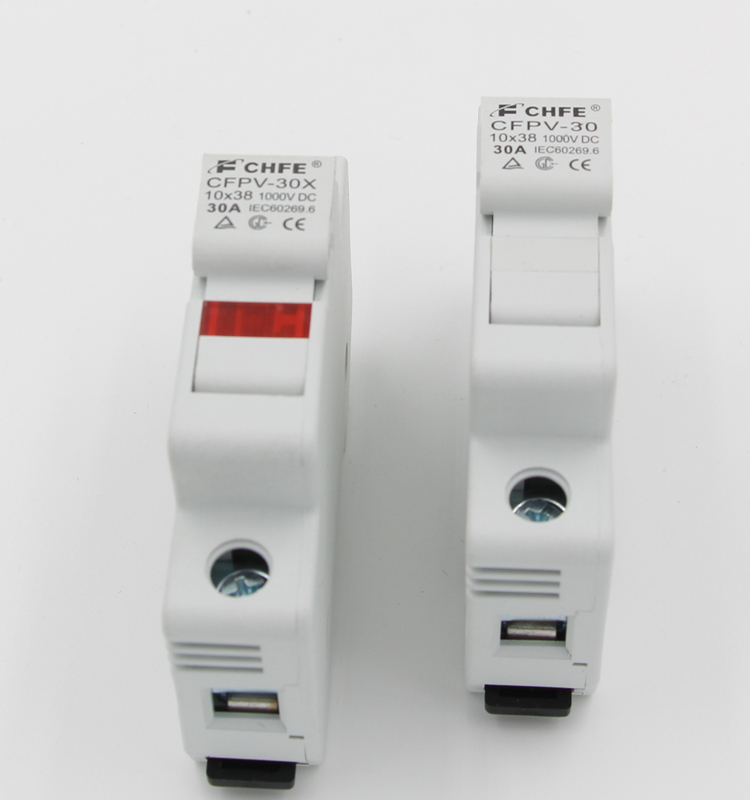

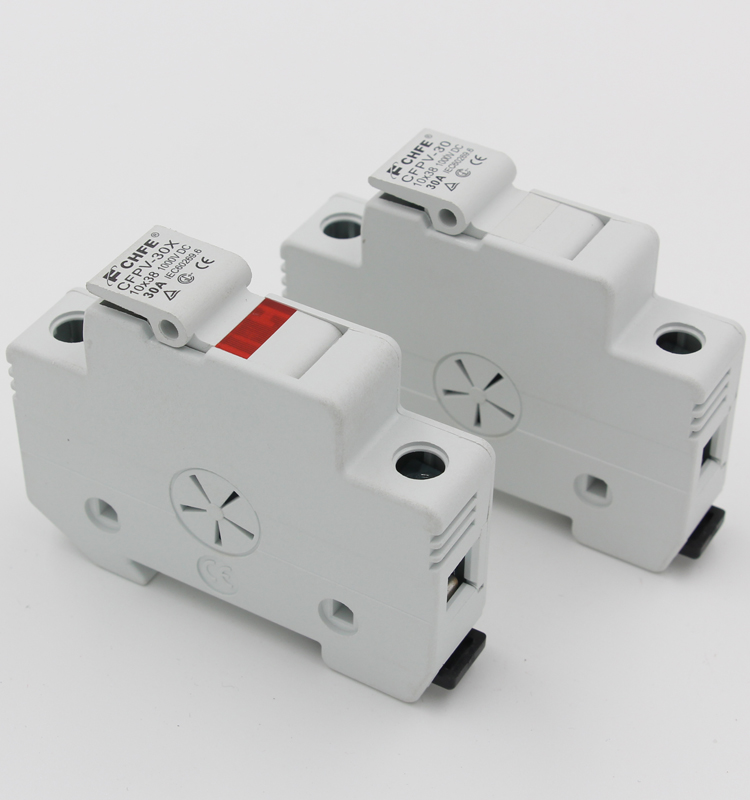

10x38 1000VDC / 15A gPV Solar fuse holder with indicator Lamp

DC 1000V Solar PV Fuse Holder PV fuses 1000 V d.c. for photovoltaic applications

Standards/Approvals:IEC/EN60269 ,CE and TUV certificate

Volts: 1000Vdc

Amps: 1 to 6A, 8A, 10A, 12A & 15A,20A,25A,30A

Class of Operation:gR - (PV)

Breaking Capacity: 20kA dc

Manufactured in accordance with IEC 60269

10X38 1-32A 1000V DC Solar PV Fuse Holder

Specifications:

1. Item Name: 10x38 1-32A 1000v DC Solar PV Fuse Holder

2. Main Materials:

a. Body: Plastic PA66, Flame retardant V0.

b. Contact:Copper, silver coating.

Technical Parameter:

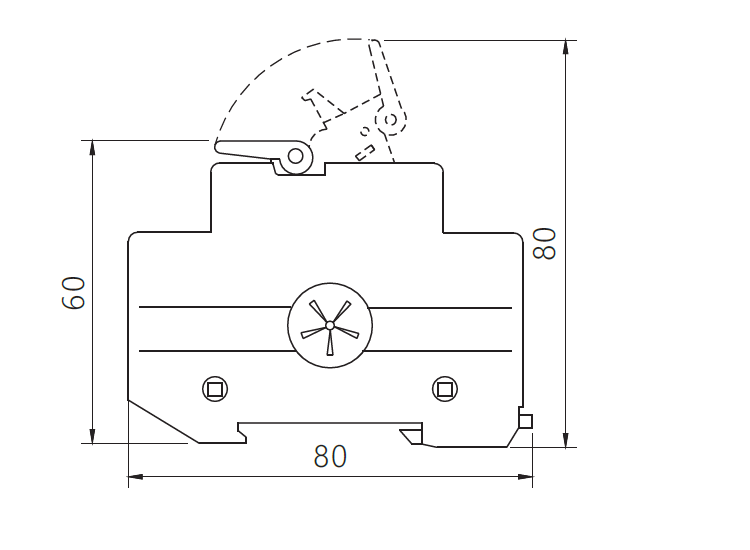

Fuse Base Model Matched with Fuse body measurement Rated Voltage(V) Rated Current(A) Overall Dimension size
A B C H
HHPV-32 10*38 1000V DC 30A 80 18 78 80
HHPV-63 14*51 1500V DC 32A 115 27 78 100

10X38 1A to 32A 1000V DC Solar PV Fuse Holder GPV Thermal Porcelain Fuse Base Switch with Indicator Lamp

10X38 1A to 32A 1000V DC Solar PV Fuse Holder GPV Thermal Porcelain Fuse Base Switch with Indicator Lamp

10X38 1A to 32A 1000V DC Solar PV Fuse Holder GPV Thermal Porcelain Fuse Base Switch with Indicator Lamp10X38 1A to 32A 1000V DC Solar PV Fuse Holder GPV Thermal Porcelain Fuse Base Switch with Indicator Lamp10X38 1A to 32A 1000V DC Solar PV Fuse Holder GPV Thermal Porcelain Fuse Base Switch with Indicator Lamp10X38 1A to 32A 1000V DC Solar PV Fuse Holder GPV Thermal Porcelain Fuse Base Switch with Indicator Lamp10X38 1A to 32A 1000V DC Solar PV Fuse Holder GPV Thermal Porcelain Fuse Base Switch with Indicator Lamp

10X38 1A to 32A 1000V DC Solar PV Fuse Holder GPV Thermal Porcelain Fuse Base Switch with Indicator Lamp

Certifications

10X38 1A to 32A 1000V DC Solar PV Fuse Holder GPV Thermal Porcelain Fuse Base Switch with Indicator Lamp

Packaging & Shipping

10X38 1A to 32A 1000V DC Solar PV Fuse Holder GPV Thermal Porcelain Fuse Base Switch with Indicator Lamp

Our Services

10X38 1A to 32A 1000V DC Solar PV Fuse Holder GPV Thermal Porcelain Fuse Base Switch with Indicator Lamp

10X38 1A to 32A 1000V DC Solar PV Fuse Holder GPV Thermal Porcelain Fuse Base Switch with Indicator Lamp10X38 1A to 32A 1000V DC Solar PV Fuse Holder GPV Thermal Porcelain Fuse Base Switch with Indicator Lamp10X38 1A to 32A 1000V DC Solar PV Fuse Holder GPV Thermal Porcelain Fuse Base Switch with Indicator Lamp10X38 1A to 32A 1000V DC Solar PV Fuse Holder GPV Thermal Porcelain Fuse Base Switch with Indicator Lamp
