LW31 Series 32A 4 Pole 7 Position Rotary Cam Switch Changeover Switch for Various Applications
LW31 Series 32A 4 Pole 7 Position Rotary Cam Switch Changeover Switch for Various Applications
LW31 Series 32A 4 Pole 7 Position Rotary Cam Switch Changeover Switch for Various Applications
LW31 Series 32A 4 Pole 7 Position Rotary Cam Switch Changeover Switch for Various Applications
LW31 Series 32A 4 Pole 7 Position Rotary Cam Switch Changeover Switch for Various Applications
LW31 Series 32A 4 Pole 7 Position Rotary Cam Switch Changeover Switch for Various Applications
LW31 Series 32A 4 Pole 7 Position Rotary Cam Switch Changeover Switch for Various Applications
LW31 Series 32A 4 Pole 7 Position Rotary Cam Switch Changeover Switch for Various Applications
LW31 Series 32A 4 Pole 7 Position Rotary Cam Switch Changeover Switch for Various Applications
LW31 Series 32A 4 Pole 7 Position Rotary Cam Switch Changeover Switch for Various Applications
Specifications
Certification :
CE,TUV
Price :
$4.28 / piece
Rotation Range :
30° 45° 60° 90°
Application :
Industrial Control, Electric Equipment, Circuit Control, Control Switch
Rated Current :
20A/25A/32A/50A/75A
Type :
Changover Switch
Position :
7 Positions
Material :
Plastic, Metal, Copper, Silver, ABS+Brass+silver contact
Brand Name :
MEH
Whether The Smart :
No
Number Of Sections :
4
MOQ :
1000 pieces
Max. Current :
32A
Mechanical Life :
0.1*10^6
Model Number :
LW31-32/4
Terminal Type :
Screw Terminal
Function :
Circuit Control
Place of Origin :
Zhejiang, China
Product Name :
Cam Switch
Max. Voltage :
440V
IP level :
IP53
Transform angle :
30° 45° 60° 90°
Description

LW31 Series 32A 4 Pole 7 Position Rotary Cam Switch Changeover Switch for Various Applications

LW31 Series 32A 4 Pole 7 Position Rotary Cam Switch Changeover Switch for Various Applications

LW31 series Rotary Changeover Switch

Product Description

LW31 series Rotary Changeover Switch 20A,25A,32A,50A,75A

LW31 series Rotary Changeover Switches applied to Complete electrical switchgear and Three-phase asynchronous motor load start shift steering; For using as main circuit and auxiliary circuit conversion. It’s a good substitution for other cam switches

Advantage:

  1. LW31 series Rotary Changeover Switches have the characteristics of small size, multi-function, compact structure, exquisite material selection, good insulation, flexible conversion operation, safety and reliability, and novel appearance.
  2. LW31 series Rotary Changeover Switches have many different types of operation handle to choose by customer(“R”,”I” types)
  3. LW31 series Rotary Changeover Switches can produce transform angle: 30°/45°/60°/90°

Technical parameters

Description
LW31-20
LW31-25
LW31-32
LW31-50
LW31-75
Rated thermal currentITH
A
20
25
32
50
75
Rated working voltageUe
V
 110 220
440
 110 220 440 500
690
 110 220 440 500
690
 110 220 440 500
690
 110 220 440 500
690
Rated working currentLe
AC-21A
A
20
25
32
50
70
AC-22A
A
16
20
32
40
63
DC-20
A
20
 25
32
50
75
power
P
AC-23A
KW
 5
7.5
 7.5 11
15
 11 18.5
22
 15 22
30
 18.5 30
37
AC-3
KW
 4
5.5
 5.5 7.5
11
 7.5 15
18.5
 11 18.5
22
 15 22
30
AC-4
KW
 2.2
3
 2.2 4 4
3 5.5 5.5
5.5 7.5 9
7.5 11 15
DC-23
KW
 0.77 1.2
2 2.2
2 2.2
3 6
4 8


Mechaical life
Mechanical life without load:0.3×106 times,operation frequency is 120 times/h.
Mechanical life with load:0.6×104 times operation frequency is 120 times/h.

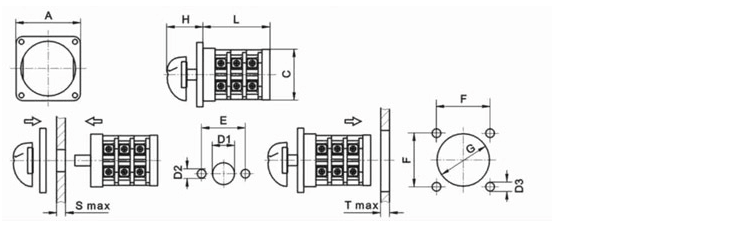

Dimensions and installation dimensions:

LW31 Series 32A 4 Pole 7 Position Rotary Cam Switch Changeover Switch for Various Applications

Description Dimensions(mm) Installation(mm)
A C H L E D1 D2 S F G D3 T
LW31-20 54 Φ44 38 25+12n 32 Φ9.5 Φ3.2 1.5 35 Φ45 Φ4.5 6
LW31-20 72 Φ44 38 25+12n 32 Φ9.5 Φ3.2 1.5 58 Φ45 Φ4.5 6
LW31-25 72 Φ59 36 25+13n 33 Φ9.5 Φ3.2 1.5 58 Φ64 Φ4.5 6
LW31-25 105 Φ59 53 23+13n 33 Φ9.5 Φ3.2 1.5 85 Φ64 Φ4.5 6
LW31-32 72 Φ59 36 23+18n 33 Φ9.5 Φ3.2 1.5 58 Φ64 Φ4.5 6
LW31-32 105 Φ59 53 23+18n 33 Φ9.5 Φ3.2 1.5 85 Φ64 Φ4.5 6
LW31-50 105 Φ80 53 34+18n 46 Φ13 Φ5.3 3 85 Φ90 Φ5.5 8
LW31-75 105 Φ80 53 34+27n 46 Φ13 Φ5.3 3 85 Φ90 Φ5.5 8

Normal working conditions:

1. Working temperature: -25°C~+40°C;the average temperature mustn’t be pass 35°C

2. Working height: ≤2,000m

3. Relative humidity: ≤50% with highest temperature +40°C,but allow higher humidity with low temperature less than 40°C.(eg. humidity 90%----teperature20°C)

Classification


1. Classified by utilization, control and load switch.
Motor switch Control switch

2. Classified by Applications
Complete electrical switchgear;Three-phase asynchronous motor load start shift steering;Used as main circuit and auxiliary circuit conversion

Related Products shown:

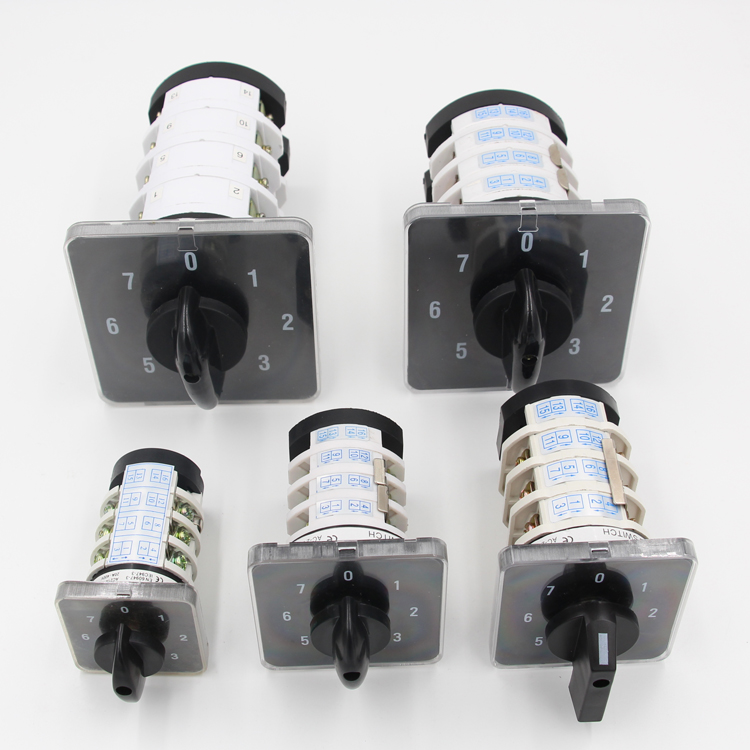

LW31 series Rotary Changeover Switch 20A-75A (4 Layers)

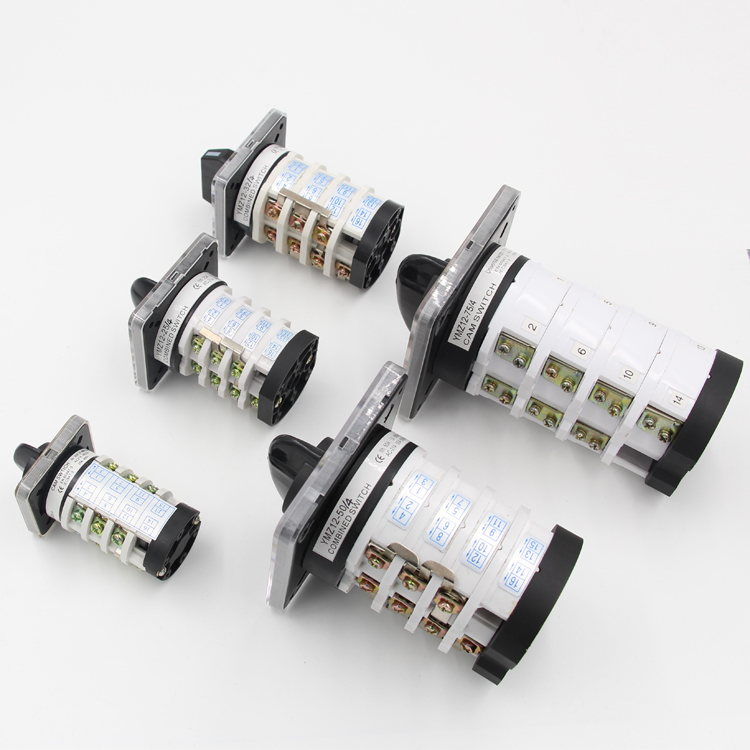

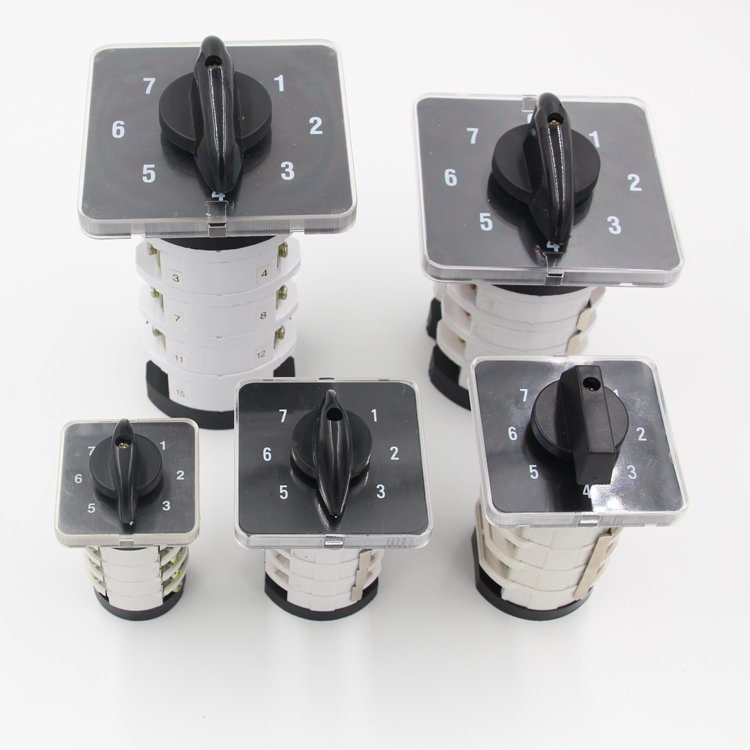

LW31 Series 32A 4 Pole 7 Position Rotary Cam Switch Changeover Switch for Various ApplicationsLW31 Series 32A 4 Pole 7 Position Rotary Cam Switch Changeover Switch for Various ApplicationsLW31 Series 32A 4 Pole 7 Position Rotary Cam Switch Changeover Switch for Various Applications
