Cam Switch Manual 3 Position 3 Pole 8 Terminals Silver Contact Rotary Selector 440V 25A Transfer Changeover CE/ Metal
Cam Switch Manual 3 Position 3 Pole 8 Terminals Silver Contact Rotary Selector 440V 25A Transfer Changeover CE/ Metal
Cam Switch Manual 3 Position 3 Pole 8 Terminals Silver Contact Rotary Selector 440V 25A Transfer Changeover CE/ Metal
Cam Switch Manual 3 Position 3 Pole 8 Terminals Silver Contact Rotary Selector 440V 25A Transfer Changeover CE/ Metal
Cam Switch Manual 3 Position 3 Pole 8 Terminals Silver Contact Rotary Selector 440V 25A Transfer Changeover CE/ Metal
Cam Switch Manual 3 Position 3 Pole 8 Terminals Silver Contact Rotary Selector 440V 25A Transfer Changeover CE/ Metal
Cam Switch Manual 3 Position 3 Pole 8 Terminals Silver Contact Rotary Selector 440V 25A Transfer Changeover CE/ Metal
Cam Switch Manual 3 Position 3 Pole 8 Terminals Silver Contact Rotary Selector 440V 25A Transfer Changeover CE/ Metal
Cam Switch Manual 3 Position 3 Pole 8 Terminals Silver Contact Rotary Selector 440V 25A Transfer Changeover CE/ Metal
Cam Switch Manual 3 Position 3 Pole 8 Terminals Silver Contact Rotary Selector 440V 25A Transfer Changeover CE/ Metal
Specifications
Whether The Smart :
No
Material :
Metal, ABS+Brass+silver contact
Max. Voltage :
440V
Mechanical Life :
0.1*10^6
Brand Name :
MEH
Certification :
CE,TUV
Model Number :
LW26-25/2
Application :
Control Switch
Position :
"1-0-2" Positions
Rated Current :
20A/25A/32A/63A/125A/160A
Max. Current :
25A
Function :
Circuit Control
Place of Origin :
Zhejiang, China
MOQ :
5 pieces
Product Name :
Cam Switch
Transform angle :
30°/45°/60°/90°
Type :
Manual
Number Of Sections :
2
Price :
$3 / piece
Description

Cam Switch Manual 3 Position 3 Pole 8 Terminals Silver Contact Rotary Selector 440V 25A Transfer Changeover CE/ Metal

Cam Switch Manual 3 Position 3 Pole 8 Terminals Silver Contact Rotary Selector 440V 25A Transfer Changeover CE/ Metal

LW26 series Rotary Cam Switch

Product Description

The LW26 series Rotary Cam Switch mainly applies to 440V and below, AC 50Hz or 240V and below DC Voltage. For breaking and closing, change-over of circuits under Infrequent manual operation. And the typical application are: control switch of 3 phase motors, control switch gear, control switch of instruments, and change-over switch of machinery and welding machine.

General Features:

1. Wide range of function for switching, it has 20A,25A,32A,63A,125A,160A,315A

2. Capability for switching of resistive, or inductive, or mixed loads.

3. The most economical way for switching electrical loads.

4. Made of the best materials with high mechanical, electrical and thermal resistance.

5. Double-break bimetallic contacts made of silver alloy and Copper.

6. Terminals with screws provided with cable clamp.

7. Fast and easy installation and wring.

8. Capability to produce special Cam Switches based on customer requirements.

9. 20A-160A items of Rotary Cam Switch can also be equipped with a protective waterproof housing(IP65).

Advantage:

  1. LW26 series Rotary Cam Switches have the characteristics of small size, multi-function, compact structure, exquisite material selection, good insulation, flexible conversion operation, safety and reliability, and novel appearance.
  2. LW26 series Rotary Cam Switches have many different types of operation handle to choose by customer(“R”,”I”,”R2”,”B”,”F”,”L”,”P”and “K” types)
  3. LW26 series Rotary Cam Switches can produce the Maximum number of sections has 1~12 poles (63A only have 8 poles)
  4. LW26 series Rotary Cam Switches can produce transform angle: 30°/45°/60°/90°
  5. LW26 series Rotary Cam Switches have many different position of panel mounting to choose by customer.Such as: “0-1”,”0-1-2”,”1-0-2”,”0-1-2-3”,”0-1-2-3-4”,”L3L1-L2L3-L1L2-0-L1N-L2N-L3N”,”0-L1N-L2N-L3N”,”0-L1L2-L2L3-L3L1”,”0-L1-L2-L3” and so on…

Technical parameters:

Description LW26-20 LW26-25 LW26-32 LW26-63 LW26-125 LW26-160
Rated insolation voltage Ui V 660 660 660 660 660 660
Rated thermal current Ith A 20 25 32 63 125 160
Rated working voltage Ue V 24 110 240 440 24 110 240 440 240 440 240 440 240 440 240 440
Rated working current Ie 20 20
AC-21A AC-22A A 25 25 32 32 63 63 100 100 150 150
AC-23A A 15 15 22 22 30 30 57 57 90 90 135 135
AC-2 A 15 15 22 22 30 30 57 57 90 90 135 135
AC-3 A 11 11 15 15 22 22 36 36 75 75 95 95
AC-4 A 3.5 3.5 6.5 6.5 11 11 15 15 30 30 55 55
AC-15 A 5 4 8 5 14 6
AC-13 A 12 0.4 0.4 20 0.5 0.5

Dimensions and installation dimensions:

Cam Switch Manual 3 Position 3 Pole 8 Terminals Silver Contact Rotary Selector 440V 25A Transfer Changeover CE/ MetalCam Switch Manual 3 Position 3 Pole 8 Terminals Silver Contact Rotary Selector 440V 25A Transfer Changeover CE/ Metal

Handle operation and position:

Operation method Feature Code Handle position
Momentary Type A 0°←30° 0°←45° 0°←60° 0°←90°
B 30°→0°←30° 45°→0°←45° 60°→0°←60° 90°→0°←90°
X 60°→30°→0°←30°←60° 90°→45°→0°←45°←90°
Y 90°→60°→30°→0°←30°←60°←90°
Position Maintain Type C 0° 30° 0° 45° 0° 60°
D 30° 0° 30° 45° 0° 45° 60° 0° 60°
E 30° 0° 30° 60° 45° 0° 45° 90° 60° 0° 60° 120°
F 60° 30° 0° 30° 60° 90° 45° 0° 45° 90° 60° 0° 60° 120° 180°
G 60° 30° 0° 30° 60° 90° 90° 45° 0° 45° 90° 135° 120° 60° 0° 60° 120° 180°
H 90° 60° 30° 0° 30° 60° 90° 135° 90° 45° 0° 45° 90° 135°
I 90° 60° 30° 0° 30° 60° 90° 120° 135° 90° 45° 0° 45° 90° 135° 180°
J 120° 90° 60° 30° 0° 30° 60° 90° 120°
K 120° 90° 60° 30° 0° 30° 60° 90° 120° 150°
L 150° 120° 90° 60° 30° 0° 30° 60° 90° 120° 150°
M 150° 120° 90° 60° 30° 0° 30° 60° 90° 120° 150° 180°
N 45° 45° 30° 30°
P 90° 0° 90°
T 0° 90°
V 90° 0°
R 270° 0° 90° 180°
Position Momentary Type Q 30° 0°←30° 45° 0°←45°
S 30°→0° 60° 90° 0°←45°
W 90°→45° 0° 45°←90°
Z 120°→90° 0°←30° 135°→90° 0°←45°

20A,25A Panel specifications:

Cam Switch Manual 3 Position 3 Pole 8 Terminals Silver Contact Rotary Selector 440V 25A Transfer Changeover CE/ Metal

Normal working conditions:

1. Working temperature: -25°C~+40°C;the average temperature mustn’t be pass 35°C

2. Working height: ≤2,000m

3. Relative humidity: ≤50% with highest temperature +40°C,but allow higher humidity with low temperature less than 40°C.(eg. humidity 90%----teperature20°C)

Classification

1. Classified by utilization, control and load switch.

Motor switch Control switch

2. Classified by operation limited movement

Spring return Limited movement with spring return

3. Classified by contact system switch with limited movement

has 1~12 poles (63A only have 8 poles)

Switch with spring return has 1~3 poles

Motor control switch has 1~6poles

4. Classified by panel

Square panel, rectangular panel, circular panel (only 20A)

Related Products shown:

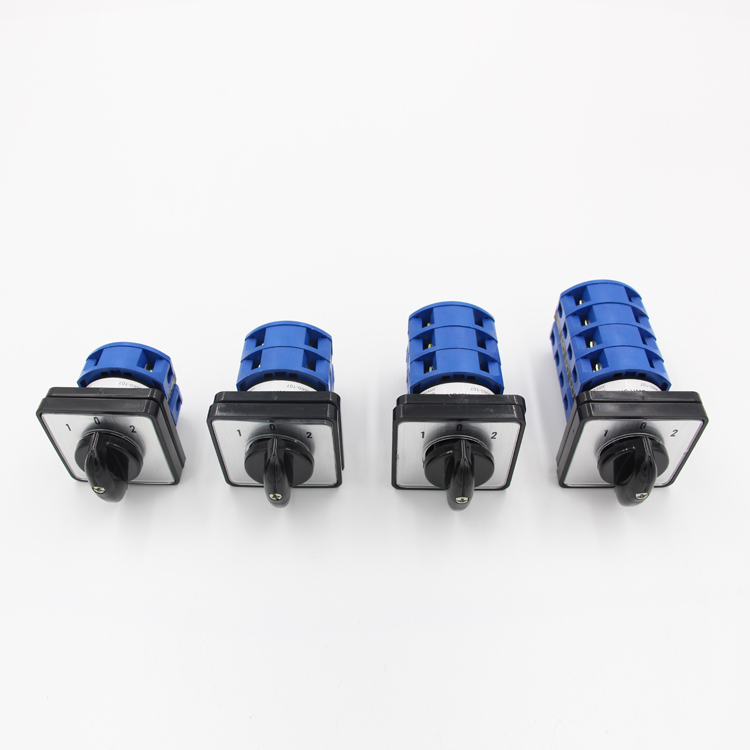

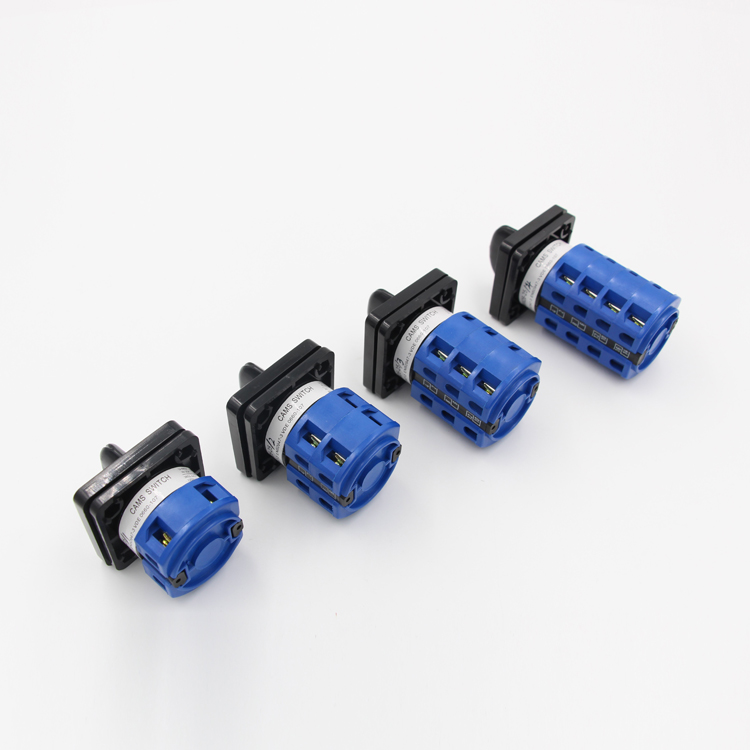

LW26-25 Sereies 25 A (1-4 Layers)Cam Switch Manual 3 Position 3 Pole 8 Terminals Silver Contact Rotary Selector 440V 25A Transfer Changeover CE/ MetalCam Switch Manual 3 Position 3 Pole 8 Terminals Silver Contact Rotary Selector 440V 25A Transfer Changeover CE/ Metal
