Specifications
Model Number :
LW26GS-32/2
Price :
$4.60 / piece
Position :
2 Positions
MOQ :
500 pieces
Type :
Changover Switch
Number Of Sections :
2
Max. Current :
32A
IP level :
IP53
Mechanical Life :
0.1*10^6
Function :
Circuit Control
Rated Current :
20A/25A/32A/63A/125A/160A
Max. Voltage :
440V
Rotation Range :
90°
Terminal Type :
Screw Terminal
Brand Name :
MEH
Place of Origin :
Zhejiang, China
Product Name :
Cam Switch
Certification :
CE,TUV
Application :
Industrial Control, Electric Equipment, Circuit Control, Control Switch
Material :
Plastic, Metal, Copper, Silver, ABS+Brass+silver contact
Whether The Smart :
No
Description

LW26GS Series 32A Rotary Cam Switch Pad-Lock Type 3-Pole 2-Position Isolator Switch with OFF-ON

LW26GS Series 32A Rotary Cam Switch Pad-Lock Type 3-Pole 2-Position Isolator Switch with OFF-ON

LW26GS series Rotary Cam Switch OFF-ON

Product Description

LW26GS series Rotary Cam Switch 20A,25A,32A,63A,125A,160A 2Position with “OFF-ON”

Description:

LW26GS series Pad-lock type switch are derivatives of LW26 series rotary switch.Insalled in equipment where it requires a pad-lock to lock the switch in certain position.For instance, to fix the switch in ON position,to prevent the unauthorized personnel from operation the switch.

LW26GS series Pad-lock type switch complies with the IEC 60947.3.

.

General Features:

1. Wide range of function for switching, it has 20A,25A,32A,63A,125A,160A

2. Capability for switching of resistive, or inductive, or mixed loads.

3. The most economical way for switching electrical loads.

4. Made of the best materials with high mechanical, electrical and thermal resistance.

5. Double-break bimetallic contacts made of silver alloy and Copper.

6. Terminals with screws provided with cable clamp.

7. Fast and easy installation and wring.

8. Capability to produce special Cam Switches based on customer requirements.

9. 20A-160A items of Rotary Cam Switch can also be equipped with a protective waterproof housing(IP65).

Advantage:

  1. LW26GS series Rotary Cam Switches have the characteristics of small size, multi-function, compact structure, exquisite material selection, good insulation, flexible conversion operation, safety and reliability, and novel appearance.
  2. LW26GS Series Rotary Cam Switch can load Padlock Panel and square Panel Mounting

Technical parameters:

Description LW26GS-20 LW26GS-25 LW26GS-32 LW26GS-63 LW26GS-125 LW26GS-160
Rated working voltage Ue V 440 440 440 440 440 440
Rated thermal current Ith A 20 25 32 63 125 160
Rated working current Ie
AC-21A A 20 25 32 63 100 150
AC-22A A 20 25 32 63 100 150
AC-23A A 15 22 30 57 90 135
power P
AC-23A KW 7.5 11 15 30 45 75
Operation
non-load 8500 8500 8500 8500 8500 8500
load 1500 1500 1500 1500 1500 1500
Total 10000 10000 10000 10000 10000 10000

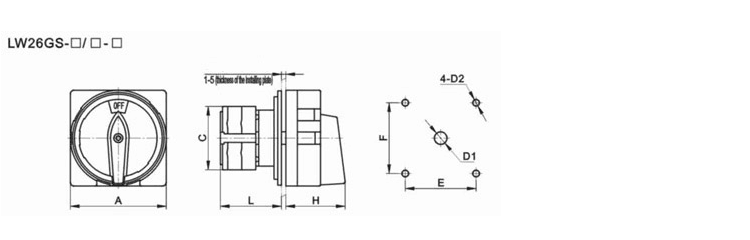

Dimensions and installation dimensions:

LW26GS Series 32A Rotary Cam Switch Pad-Lock Type 3-Pole 2-Position Isolator Switch with OFF-ON

Description Escutcheon plate Dimensions(mm) Installation(mm)
A C L H E F D1 D2
LW26GS-20/04-1 M1 48 43 42 33 36 36 Φ8.5 Φ4.5
LW26GS-20/04-2 M2 64 43 43 42 48 48 Φ8.5 Φ4.5
LW26GS-25/04-1 M1 48 45.2 50 33 36 36 Φ8.5 Φ4.5
LW26GS-25/04-2 M2 64 45.2 51 42 48 48 Φ8.5 Φ4.5
LW26GS-32/04-2 M2 64 58 55 42 48 48 Φ10 Φ4.5
LW26GS-32/04-3 M3 88 58 55 52 68 68 Φ13 Φ6
LW26GS-63/04-2 M2 64 66 72.5 42 48 48 Φ10 Φ4.5
LW26GS-63/04-3 M3 88 58 55 52 68 68 Φ13 Φ6
LW26GS-125/04-3 M3 88 84 88 52 68 68 Φ13 Φ6
LW26GS-160/04-3 M3 88 88 100 52 68 68 Φ13 Φ6

Normal working conditions:

1. Working temperature: -25°C~+40°C;the average temperature mustn’t be pass 35°C

2. Working height: ≤2,000m

3. Relative humidity: ≤50% with highest temperature +40°C,but allow higher humidity with low temperature less than 40°C.(eg. humidity 90%----teperature20°C)

Classification

1. Classified by utilization, control and load switch.

Motor switch Control switch

2. Classified by operation limited movement

Spring return Limited movement with spring return

3. Classified by Panel

Square panel, Padlock Panel

  1. Classified by Usages

Normal type: Black Panel+ Black Handle

Emergency Stop: Yellow Panel + Red Handle
