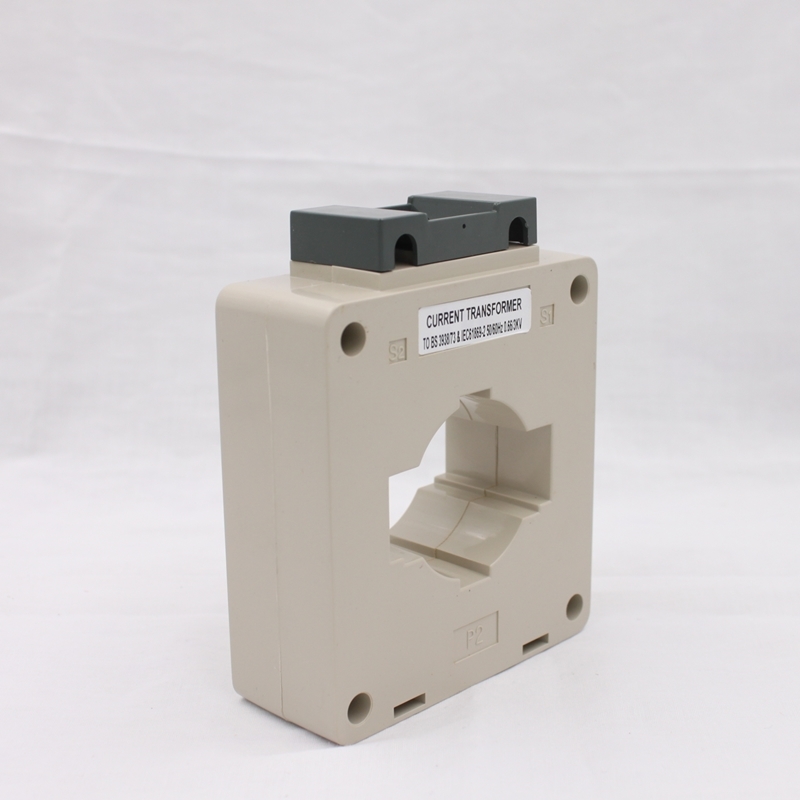

800/5A Bus Bar Current Transformer MSQ Toroidal CT Current Transformer with 30 40 60 80 100 125A Options

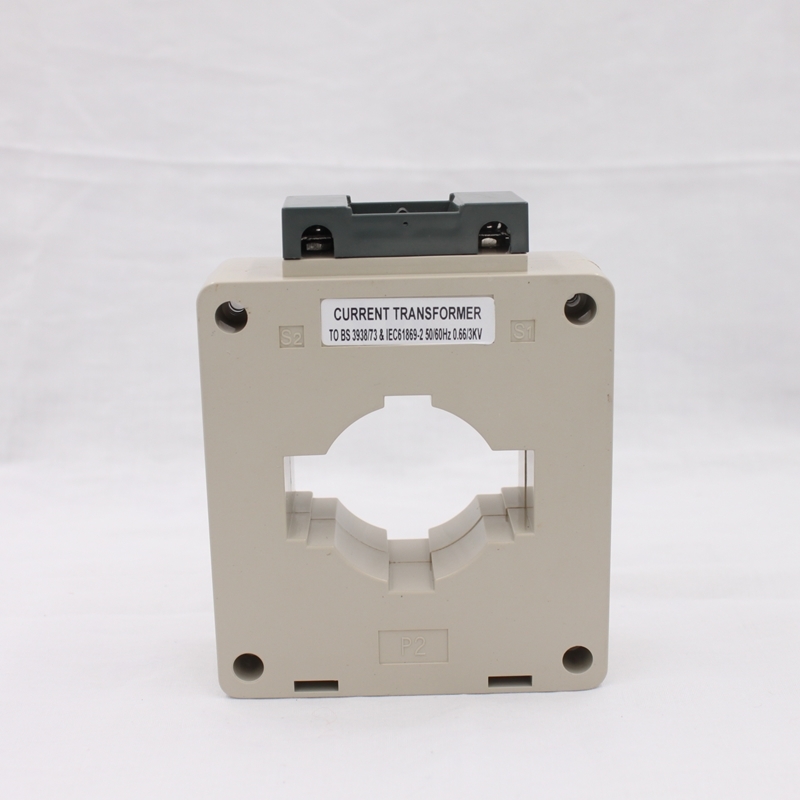

800/5A Bus Bar Current Transformer MSQ Toroidal CT Current Transformer with 30 40 60 80 100 125A Options

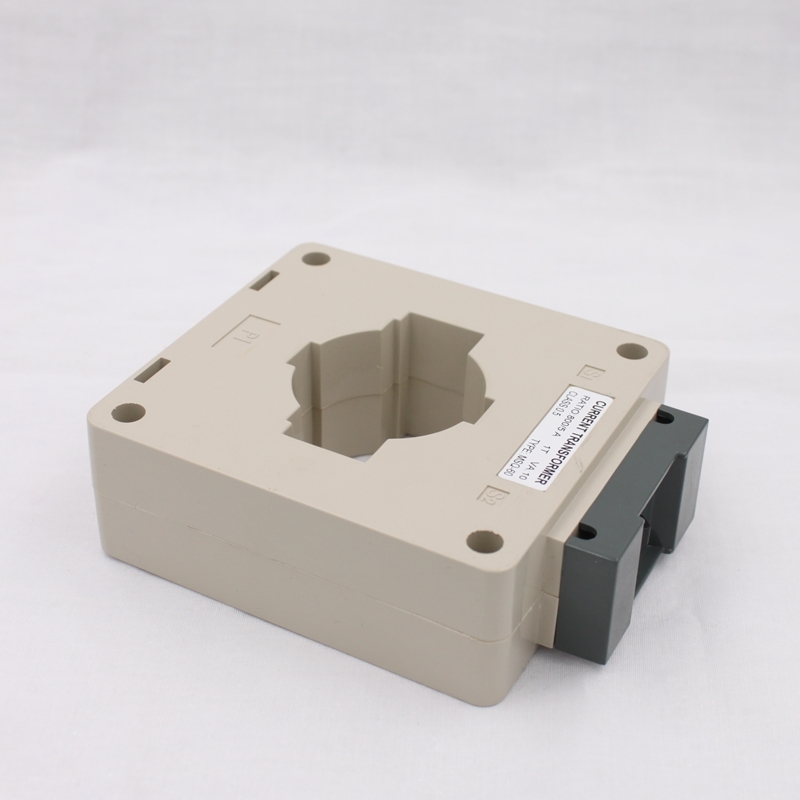

800/5A Bus Bar Current Transformer MSQ Toroidal CT Current Transformer with 30 40 60 80 100 125A Options
800/5A Bus Bar Current Transformer MSQ Toroidal CT Current Transformer with 30 40 60 80 100 125A Options
800/5A Bus Bar Current Transformer MSQ Toroidal CT Current Transformer with 30 40 60 80 100 125A Options
800/5A Bus Bar Current Transformer MSQ Toroidal CT Current Transformer with 30 40 60 80 100 125A Options
800/5A Bus Bar Current Transformer MSQ Toroidal CT Current Transformer with 30 40 60 80 100 125A Options
800/5A Bus Bar Current Transformer MSQ Toroidal CT Current Transformer with 30 40 60 80 100 125A Options
800/5A Bus Bar Current Transformer MSQ Toroidal CT Current Transformer with 30 40 60 80 100 125A Options
800/5A Bus Bar Current Transformer MSQ Toroidal CT Current Transformer with 30 40 60 80 100 125A Options
800/5A Bus Bar Current Transformer MSQ Toroidal CT Current Transformer with 30 40 60 80 100 125A Options
800/5A Bus Bar Current Transformer MSQ Toroidal CT Current Transformer with 30 40 60 80 100 125A Options
Specifications
Coil Number :
Autotransformer
application :
Current
Brand Name :
OEM
Coil Structure :
Toroidal
Shape :
Coil
Standard :
IEC60076
Winding Material :
Copper, Aluminum, Silver
Rated Insulation Level :
0.66/3 KV
Input Voltage :
380 V
Place of Origin :
Zhejiang, China
Toplogy :
Forward
Accuracy Class :
0.5, 1.0
Rated Transformation ratio :
15~3000/5A
Output Voltage :
220 V
Warranty :
2 Years
Material :
Plastic, Metal, Aluminum, Copper, Silicon Steel Sheet, Resin, Ferrite Core
Frequency :
50 Hz, 60 Hz, 50Hz/60Hz
Operating temperature :
-25℃~+50℃
Phase :
Single
Type :
Instrument Transformer, bus-bar type
Certification :
CE ROHS
Model Number :
MSQ-60 800/5A
MOQ :
1200 pieces
Product name :
MSQ Current Transformer
Price :
$2.65 / piece
Description


800/5A Bus Bar Current Transformer MSQ Toroidal CT Current Transformer with 30 40 60 80 100 125A Options

800/5A Bus Bar Current Transformer MSQ Toroidal CT Current Transformer with 30 40 60 80 100 125A Options

MSQ series type Current Transformer MSQ-30 / MSQ-40 / MSQ-60 / MSQ-100 / MSQ-125

Product Description

Uses and applications:

MSQ range of current transformers can be applied to test,control,display and record the running of the electrical equipment,and to protect the equipment against the damage,in the AC circuit with the rated voltage value below 720V and the frequency of 50-60Hz.The product can be also applied to form a complete set of mine transformer.

This MSQ series of CT can be applied to test,control.display and record the running of the electrical equipment,and to protect the equipment against the damage.In the AC circuit with the rated voltage value below 720V and the frequency of 50-60Hz.The product can be also applied to form a complete set of mine transformer.The products comply with IEC -185 standard.

Features:


1. Safe. Easy to install, porttable
2. Wide inner window, allowing clamping of big cables or bus-bars
3. Wide range of sizes to accommodate all the existing installations

Application:


1. Current measurement, monitoring and protection for electrical wiring and equipment.
2. Current and power measurement for electric motors, lighting, air compressor, heating and ventilation system, air-condition equipment and automation - control system.
3. Current, power and energy monitoring device.
4. Relay protection device.

Technical Specification:

Electrical Parameter Mechanical Parameter
Frequency 50/60Hz Case PC/UL94-V0
Rated Input 1A-5000A Bobbin PBT
Measuring range 5%In-120%In Core Silicon steel
Rated Output 1A,5A Construction Screw
Ratio Voltage 0.72KV (AC) Operating Temp -25℃~+75℃
Dielectric strength 3.0KV/1mA/1min Operating Humidity ≤85%
Insulation Resistance DC500V/100MΩ min Output Connection Terminal

Technical Parameter:

Model Primary / Secondary Busbar Hole Dimensions(mm) Rated Burden (VA) Accuracy Class Rated Voltage
MSQ-30B 5/5A~300/5A busbar 5~7.5 0.5 / 1.0 0.72KV(AC)
MSQ-30 30/5A~300/5A φ=30mm 2.5~10 0.5 / 1.0 0.72KV(AC)
MSQ-40 100/5A~500/5A φ=40mm 2.5~10 0.5/1.0 0.72KV(AC)
MSQ-60 250/5A~1600/5A φ=60mm 5~15 0.5/1.0 0.72KV(AC)
MSQ-85 750/5A~2000/5A φ=85mm 5~15 0.5/1.0 0.72KV(AC)
MSQ-100 800/5A~3000/5A φ=100mm 5~15 0.5/1.0 0.72KV(AC)
MSQ-125 1000/5A~6000/5A φ=125mm 5~20 0.5/1.0 0.72KV(AC)

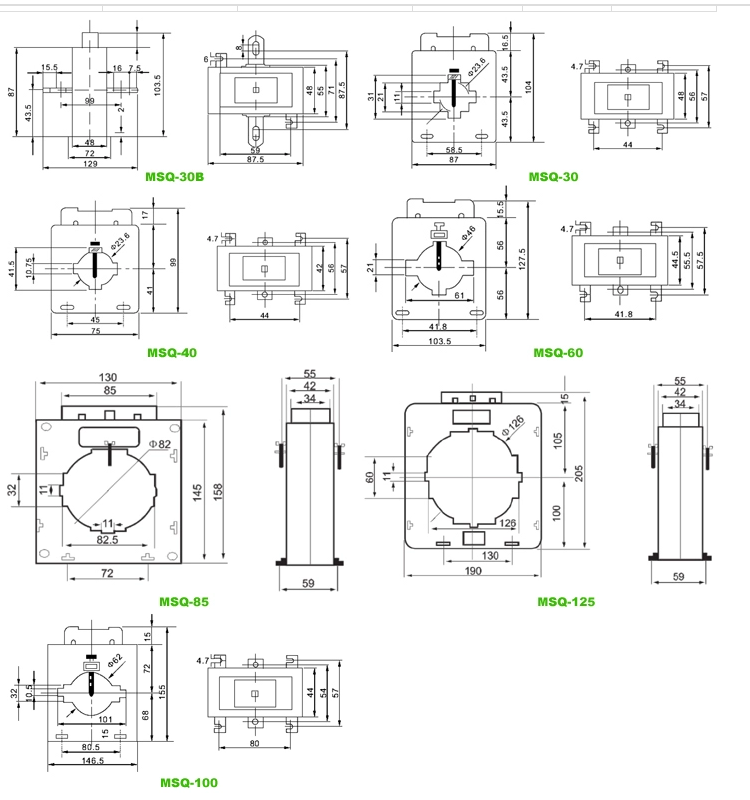

Overall Dimension Drawing:

800/5A Bus Bar Current Transformer MSQ Toroidal CT Current Transformer with 30 40 60 80 100 125A Options

Inside Structure Parts Details Images:

800/5A Bus Bar Current Transformer MSQ Toroidal CT Current Transformer with 30 40 60 80 100 125A Options

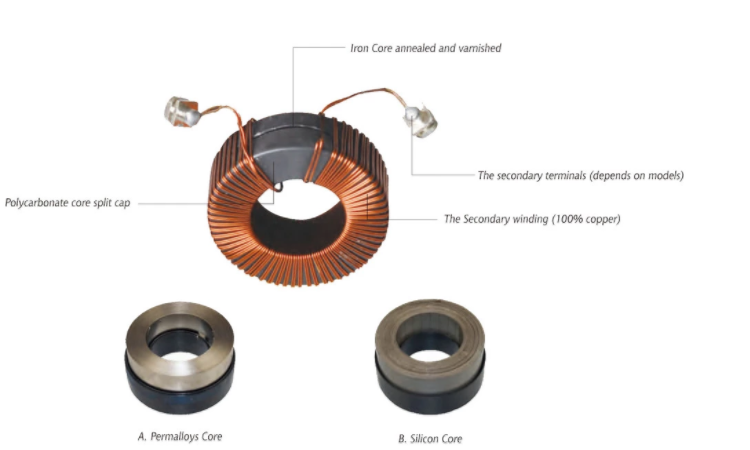

CT consist of primary winding, secondary winding, magnetic core and insulated body. The high-grade silicon steel core is annealed, varnished then insulated with polycarbonate core caps. The secondary winding is toroidally wound by high precision semi-automatic machinery. For the tape wound ring type current transformer, the PEW coated windings are then covered with elephantite paper, varnished and double-tapped with PVS tapes. For the encapsulated type current transformer, the windings are enclosed in a compact and heat resistant split cap.

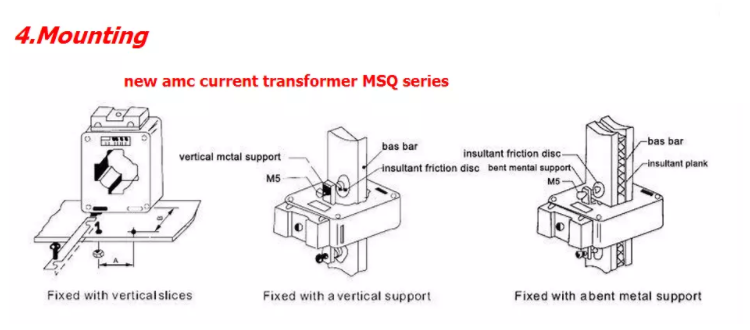

How to Mounting :

800/5A Bus Bar Current Transformer MSQ Toroidal CT Current Transformer with 30 40 60 80 100 125A Options

MSQ series: MSQ-30 (small), MSQ-30(large) ,MSQ-40, MSQ-60, MSQ-100

800/5A Bus Bar Current Transformer MSQ Toroidal CT Current Transformer with 30 40 60 80 100 125A Options800/5A Bus Bar Current Transformer MSQ Toroidal CT Current Transformer with 30 40 60 80 100 125A Options800/5A Bus Bar Current Transformer MSQ Toroidal CT Current Transformer with 30 40 60 80 100 125A Options

Certifications

800/5A Bus Bar Current Transformer MSQ Toroidal CT Current Transformer with 30 40 60 80 100 125A Options

800/5A Bus Bar Current Transformer MSQ Toroidal CT Current Transformer with 30 40 60 80 100 125A Options

Packaging & Shipping

800/5A Bus Bar Current Transformer MSQ Toroidal CT Current Transformer with 30 40 60 80 100 125A Options

Our Services

800/5A Bus Bar Current Transformer MSQ Toroidal CT Current Transformer with 30 40 60 80 100 125A Options

Company Information

800/5A Bus Bar Current Transformer MSQ Toroidal CT Current Transformer with 30 40 60 80 100 125A Options

FAQ

800/5A Bus Bar Current Transformer MSQ Toroidal CT Current Transformer with 30 40 60 80 100 125A Options

Further information:

1. Plastics materials: all raw materials are brand-new and second-hand materials are forbidden. Furthermore some of them are supplied by super branding companies like DSM, Mitsubishi.

2. There is just one level of quality as A in MEIHENG and we are aim to provide the excellent articles to our clients and help them gain more market shares.

3. ODM: we are providing ODM services to the super companies (more than 15) who are top-10 electrical industrial companies in their country. Just show us your ideas and we will present a solution.
