270mm OD 10-Layer Hairpin Stator, 54mm Slim Stack, High-Torque PMSM for Robot Joint Motors
270mm OD 10-Layer Hairpin Stator, 54mm Slim Stack, High-Torque PMSM for Robot Joint Motors
270mm OD 10-Layer Hairpin Stator, 54mm Slim Stack, High-Torque PMSM for Robot Joint Motors
270mm OD 10-Layer Hairpin Stator, 54mm Slim Stack, High-Torque PMSM for Robot Joint Motors
Specifications
Hairpin Layers :
10
Brand Name :
Champypund
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
1 SET
Price :
NEGOTIABLE
Payment Terms :
L/C,T/T
Supply Ability :
1 SET PER 4-6 WEEKS
Delivery Time :
4-6 WEEKS
Packaging Details :
PLYWOOD CASE WITH PLASTIC BAG OR OTHER PACKAGES SUITABLE FOR SEA TRANSPORT
Stack Length :
54mm
Stator OD :
270mm
Description

270mm OD 10-Layer Hairpin Stator, 54mm Slim Stack, High-Torque PMSM for Robot Joint Motors


1. Descriptions:

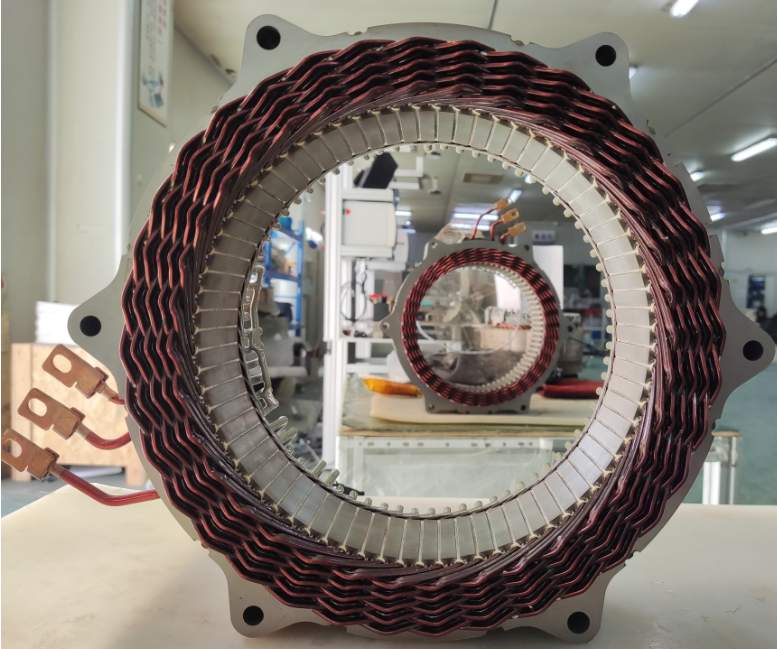

This pancake-style hairpin stator features a 270mm outer diameter, 10-layer flat wire winding, and a slim 54mm stack height, delivering high torque density for compact, low-speed PMSM applications such as in-wheel motors and robot joint drives. Manufactured under ISO9001:2015 and IATF16949:2016 certified processes, available for OEM/ODM, sample development, and small-batch production.


2. Specifications:

Name Hairpin Stator Sample
Stator OD 270mm
Hairpin Layers 10
Stack Length 54mm


3. Advantages:


  • High layer count boosts torque density within a slim stack
  • Compact pancake structure suits space-limited direct-drive systems
  • ISO9001:2015 & IATF16949:2016 certified manufacturing
  • Flexible OEM/ODM & small-batch supply

4. OEM/ODM Profile:

Champyound is a professional and dynamic team, comprising experienced engineers and skilled professionals. Equipped with advanced machinery, stringent process controls, and an extensive service network, we are dedicated to delivering the most optimal solutions for flat wire motor manufacturing to our customers.


5. R＆D Profile:

Champyound offers a wide range of technical consultancy and turnkey project services for the manufacture of flat wire motors. We pride ourselves on our excellent service, professional team and reliable quality. Our services range from motor costing, manufacturing technology and staff training to complete turnkey projects.
