180mm OD 6-Layer Hairpin Stator, 106mm Stack, PMSM for Servo Motors & Small Pumps
180mm OD 6-Layer Hairpin Stator, 106mm Stack, PMSM for Servo Motors & Small Pumps
180mm OD 6-Layer Hairpin Stator, 106mm Stack, PMSM for Servo Motors & Small Pumps
180mm OD 6-Layer Hairpin Stator, 106mm Stack, PMSM for Servo Motors & Small Pumps
Specifications
Application Area :
Two-Wheeler Stator
Control System :
PLC Program
Power :
2.5KW
Customization :
Allowed
Pressure Value Setting :
0-50 KN (Set According to Product)
Press Method :
Servo Control
Air Pressure :
(0.4-0.7)Mpa
Warranty :
12 Months
Name :
Pressing Machine
Brand Name :
Champypund
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
1 SET
Price :
NEGOTIABLE
Payment Terms :
L/C,T/T
Supply Ability :
1 SET PER 4-6 WEEKS
Delivery Time :
4-6 WEEKS
Packaging Details :
PLYWOOD CASE WITH PLASTIC BAG OR OTHER PACKAGES SUITABLE FOR SEA TRANSPORT
Operation Mode :
Automation
Voltage :
220V
Description

180mm OD 6-Layer Hairpin Stator, 106mm Stack, PMSM for Servo Motors & Small Pumps


1. Descriptions:

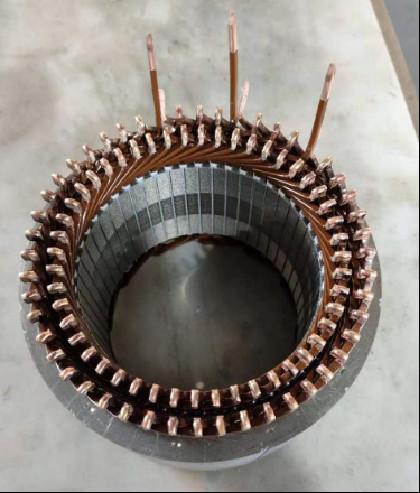

This hairpin stator features a 180mm outer diameter, 6-layer flat wire winding, and a 106mm stack height, offering a compact, high-torque design for mid-power PMSM applications such as servo motors, small pumps, and automation drives. Manufactured under ISO9001:2015 and IATF16949:2016 certified processes, available for OEM/ODM, sample development, and small-batch production.


2. Specifications:

Name Hairpin Stator Sample
Stator OD 180mm
Hairpin Layers 6
Stack Length 106mm

3. Advantages:

  • Compact diameter with tall stack maximizes torque in limited space
  • Suits precision servo and robotics applications
  • ISO9001:2015 & IATF16949:2016 certified manufacturing
  • Flexible OEM/ODM & small-batch supply

4. OEM/ODM Profile:

Champyound is a professional and dynamic team, comprising experienced engineers and skilled professionals. Equipped with advanced machinery, stringent process controls, and an extensive service network, we are dedicated to delivering the most optimal solutions for flat wire motor manufacturing to our customers.


5. R＆D Profile:

Champyound offers a wide range of technical consultancy and turnkey project services for the manufacture of flat wire motors. We pride ourselves on our excellent service, professional team and reliable quality. Our services range from motor costing, manufacturing technology and staff training to complete turnkey projects.
