Astm A 975 Galvanized Gabion Wire Mesh 2m X 1m X 1m 2x1x0.5m
Astm A 975 Galvanized Gabion Wire Mesh 2m X 1m X 1m 2x1x0.5m
Astm A 975 Galvanized Gabion Wire Mesh 2m X 1m X 1m 2x1x0.5m
Astm A 975 Galvanized Gabion Wire Mesh 2m X 1m X 1m 2x1x0.5m
Specifications
Product name :
Gabion Wire Mesh
Color :
Silver/Green etc.
Series :
Hot Dipped Galvanized 275g/m2
Type :
Welded/Twisted
Gabion Size :
1.5m*1m*0.5m
Mesh Type :
80mm*100mm
Wire Diameter :
2.7mm
Feature :
Firm & Stable
Application :
for Water and soil protection
Packing :
Boundle/Pallet
Brand Name :
X MESH
Model Number :
X MESH-Gabion Wire Mesh A06
Certification :
ISO9001:2015
Place of Origin :
Hebei P.R. China.
MOQ :
500m2
Price :
USD2.00-USD5.50/m2
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
50000m2/week
Delivery Time :
5-7days
Packaging Details :
Wrapped with plastic film and pallet packing
Description

ASTM A 975 Wire Mesh Wall Basket , Gabion Wire Mesh 2m X 1m X 1m , 2x1x0.5m

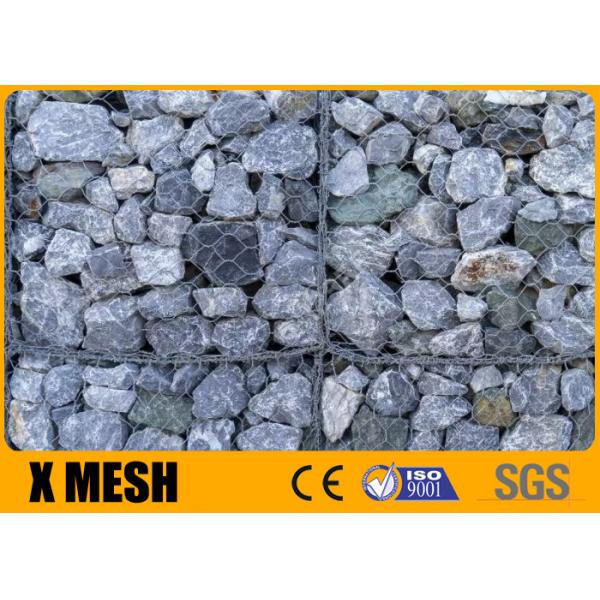

Gabion Wire Mesh Introduction:

Woven gabion baskets refer to a rectangular box with double or triple twist hexagonal steel mesh fabric made form galfan wire or PVC wire. They are successfully applied to various rough conditions. Such as gabion retaining wall, gabion fence and gabion channels, etc.

Besides galvanizing, the extra PVC coating could provide stronger corrosion resistance ability. It is further extruded with 0.5mm thick PVC Coating. The PVC coating is UV stabilized as per ASTM A 975.

The wire used to manufacture double twisted gabion wire mesh is soft annealed, d steel wire provided with heavy zinc coating as per EN 10244/ASTM A 641 to prevent corrosion.

Product name

Gabion Wire Mesh

Color

Silver/Green etc.

Series

Hot Dipped Galvanized 275g/m2

Type

Welded/Twisted

Gabion Size

1.5m*1m*0.5m

Mesh Type

80mm*100mm

Wire Diameter

2.7mm

Feature

Firm & Stable

Application

for Water and soil protection

Packing

Boundle/Pallet

Gabion Wire Mesh Specification:

Mesh Type

Mesh Type

Nominal Dimension D Values

Tolerances

6 x 8

64 mm [2.50 in.]

±10 %

8 x 10

83 mm [3.25 in.]

Typical Gabion Basket Sizes

Length, m

Width, m

Height, m

Number of

Cells, each

Volume, m³

2.0

1.0

1.0

2.0

2.0

3.0

1.0

1.0

3.0

3.0

4.0

1.0

1.0

4.0

4.0

2.0

1.0

0.5

2.0

1.0

3.0

1.0

0.5

3.0

1.5

4.0

1.0

0.5

4.0

2.0

2.0

1.0

0.3

2.0

0.6

3.0

1.0

0.3

3.0

0.9

4.0

1.0

0.3

4.0

1.2

Gabion Wire Mesh Standard:
Heavily zinc-coated steel wire conforming to ASTM A 641, Class 3 coating, soft temper;
Zn-5Al-MM-Coated steel wire conforming to ASTM A 856/856M, Class 3, soft temper;
The same type of metallic-coated steel wire as above, but with an additional PVC coating extruded onto the metallic-coated steel wire;
l Aluminum-coated steel wire conforming to ASTM A 809, soft temper;
The most popular wire diameter for gabion baskets is 2.7mm, 2.2mm for revet mattress.

Gabion Wire Mesh Application:

  • Control and guide of water or flood

  • Flood bank or guiding bank

  • Preventing of rock breaking

  • Bridge Protection

  • Water and soil protection

  • Coast protection

  • Seaport engineering

  • Strengthening structure of soil

  • Protection of road
