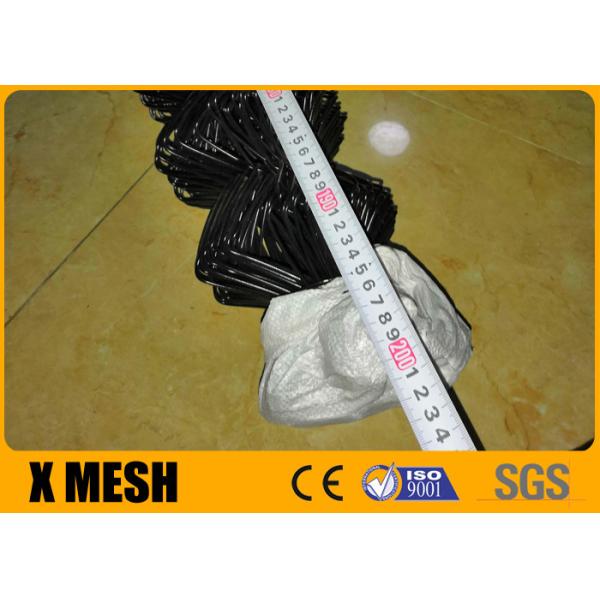

9 Gauge Black Vinyl Chain Link Mesh Fencing ISO9001 Low Maintenance
9 Gauge Black Vinyl Chain Link Mesh Fencing ISO9001 Low Maintenance
9 Gauge Black Vinyl Chain Link Mesh Fencing ISO9001 Low Maintenance
9 Gauge Black Vinyl Chain Link Mesh Fencing ISO9001 Low Maintenance
Specifications
Type :
Fencing
Series :
vinyl coated
Feature :
Low maintenance
Selvage :
KxT
Top Rail :
1-3/8"
Terminal Post :
2-1/2"
Color :
Black
Height :
8'
Mesh Opening :
2"
Wire Gauge :
9#
Brand Name :
X MESH
Model Number :
X MESH-023
Certification :
ISO9001:2015
Place of Origin :
Hebei P.R. China.
MOQ :
200m2
Price :
USD1.25-5.85/m2
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
50000m2/week
Delivery Time :
5-7days
Packaging Details :
Wrapped with plastic film and pallet packing
Description

9 gauge black vinyl coated Low maintenance chain link mesh fencing

chain link mesh fencing Introduction:

Chain link fence, also referred to as chain-wire fence, cyclone fence, hurricane fence, or diamond mesh fence , is one of the most popular choices of fence for both light residential to heavy commercial fence applications.

There are two types of vinyl coating (PVC coating) based on the thickness: extruded and adhered and fused and bonded. Dark green(RAL 6005) chain link fence is the most popular one among a lot of colors. Extruded and bonded chain link, always refer to as 'heavy' vinyl chain link fence is also an option. Extruded vinyl coated chain link fence is by far the most popular kind of chain link fence available in colors. It is typically the least expensive too. However, some quality conscious customers also prefer fused and bonded fence fabric. Meets ASTM F 668-04, Class 1, thickness of polymer coating between 0.015 - 0.025 inch(0.38 - 0.64mm)

chain link mesh fencing Description:

Extruded and adhered

zinc coating

core wire size

PVC coated finished
wire size

PVC coated wire
available variance

Core wire zinc,
coating weight
min.

PVC coating
thickness

Breaking strength
minimum

Tensile strength,
min

ga.

inch

mm

ga

inch

mm

oz/ft2

g/m2

inch

mm

lbf

N

ksi

Mpa

9

0.148

3.76

6

+/- 0.005

+/-0.13

0.30

92

0.015 to
0.025

0.38 to
0.64

1,290

5,740

75

515

11

0.120

3.05

8

+/- 0.005

+/-0.13

0.30

92

850

3,780

75

515

14

0.080

2.03

11

+/- 0.005

+/-0.13

0.25

76

380

1,690

75

515

Fused and bonded

zinc coating

core wire size

pvc coated finished
wire size

PVC coated wire
available variance

Core wire zinc,
coating weight
min.

PVC coating
thickness

Breaking strength
minimum

Tensile strength,
min

ga

inch

mm

ga

inch

mm

oz/ft2

g/m2

inch

mm

lbf

N

ksi

Mpa

6

0.192

4.88

5

+/- 0.005

+/-0.13

0.40

122

0.006 to
0.010

0.15 to
0.25

2,170

9,650

75

515

9

0.148

3.76

8

+/- 0.005

+/-0.13

0.30

92

1290

5,740

75

515

10

0.135

3.43

9

+/- 0.005

+/-0.13

0.25

92

1290

5,740

90

620

11

0.120

3.05

10

+/- 0.005

+/-0.13

0.30

92

850

3,780

75

515

12

0.105

2.67

11

+/- 0.004

+/-0.10

0.30

76

650

2,890

75

515

14

0.080

2.03

13

+/- 0.004

+/-0.10

0.25

76

380

1,690

75

515

chain link mesh fencing Specification:

PVC Coated Chain Link Fence - 9 Gauge

PVC Coated
9 gauge

*Colors depicted not exact

Size
(Mesh x Gauge x Height)

Ends

Weight
Per 50'

2 x 9 x 36

KxK

53 lbs

2 x 9 x 42

KxK

63 lbs

2 x 9 x 48

KxK

70 lbs

2 x 9 x 60

KxK

88 lbs

2 x 9 x 72

KxB

105 lbs

2 x 9 x 84

KxB

123 lbs

2 x 9 x 96

KxB

140 lbs

2 x 9 x 120

KxB

173 lbs

2 x 9 x 144

KxB

208 lbs

1-3/4 x 9 x 120

KxB

198 lbs

1-3/4 x 9 x 144

KxB

238 lbs

1. Gauge of wire is 'finish size' inclusive of vinyl coating in this instance;

2. Meets ASTM F 668-04, Class 1, thickness of polymer coating between 0.015 - 0.025 inch(0.38 - 0.64mm).

chain link mesh fencing Application:

It's widely used in school playgrounds,so it's well known as Playground fence,Sport fence. Chain link fence is extensively used as fence for school,playground,garden,high-way,railway port,residence,etc.Also can be used for breeding animals.Children's Playgrounds,Playing Fields,Recreational Grounds.
