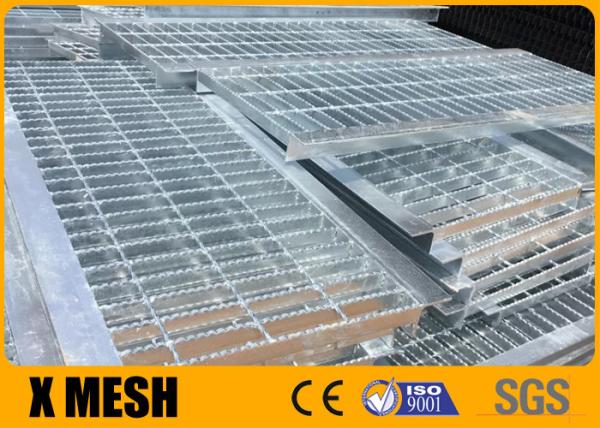

Galvanized Finish Serrated Steel Grating For Civil Engineering
Galvanized Finish Serrated Steel Grating For Civil Engineering
Galvanized Finish Serrated Steel Grating For Civil Engineering
Galvanized Finish Serrated Steel Grating For Civil Engineering
Specifications
Brand Name :
X MESH
Model Number :
X MESH-Welded Steel Grating09
Certification :
ISO9001:2015
Place of Origin :
Hebei P.R. China.
MOQ :
200pcs
Price :
USD20.50-50.50/pc
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
8500pcs/week
Delivery Time :
5-7days

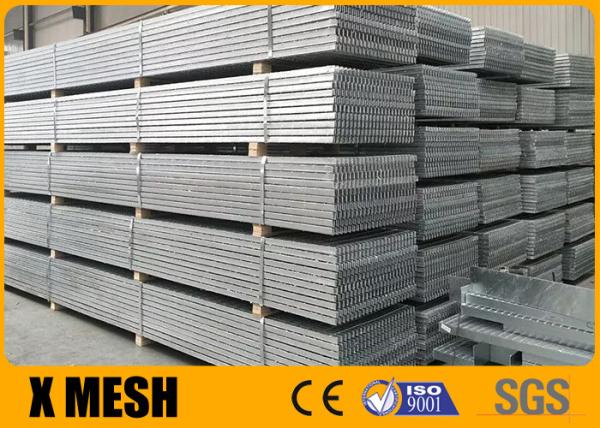

Packaging Details :
Wrapped with plastic film and pallet packing
Name :
Serrated Steel Grating
Material :
ASTM A36 Steel
Standard :
BS729 Standard
Application :
Civil Engineering
Bearing Bar :
25*5mm

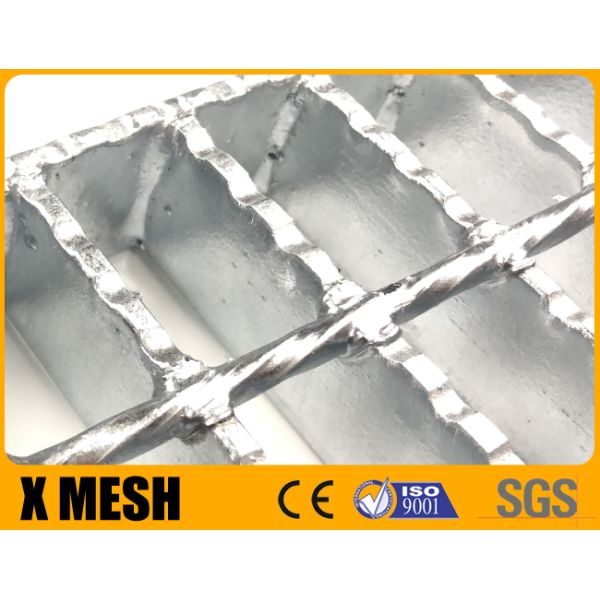

Cross Bar Type :
Round Bar/ Twist Bar/ Steel Bar
Bearing bar Pitch :
20mm/ 30mm/ 40mm
Surface Treatment :
Galvanized Finish

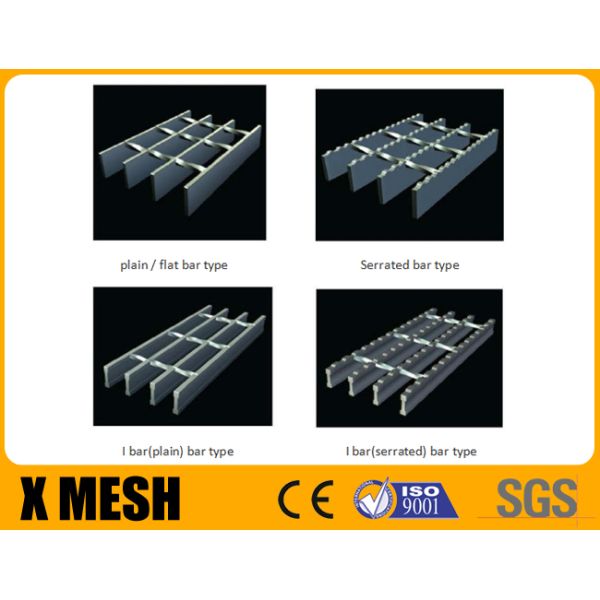

Bearing Bar Type :
Flat Bar Type/ Serrated Bar Type/ I-Bar Type
Anchoring Devices :
Saddle Clips, Countersunk Lands, Weld Lugs, "G" Clips, "J" Clips
Description

BS729 Standard Galvanized Finish Civil Engineering Serrated Steel Grating

Serrated Steel Grating Introduction:

Steel Bar Grating, also known as Welded Steel Bar Grate is extremely strong and durable for all load bearing applications and is primarily used for pedestrian and light vehicle traffic. Steel Bar Grating is available in a variety of bearing bar spacing and thicknesses depending on applications and load requirements. Available in either smooth top or serrated for slip resistance.

Name

Serrated Steel Grating

Material

ASTM A36 Steel

Standard

BS729 Standard

Application

Civil Engineering

Bearing Bar

25*5mm

Cross Bar Type

Round Bar/ Twist Bar/ Steel Bar

Bearing bar Pitch

20mm/ 30mm/ 40mm

Surface Treatment

Galvanized Finish

Bearing Bar Type

Flat Bar Type/ Serrated Bar Type/ I-Bar Type

Anchoring Devices

Saddle Clips, Countersunk Lands, Weld Lugs, "G" Clips, "J" Clips

Serrated Steel Grating Standard:

Steel Grating Standard: China YB/T4001-1998

America ANSI/NAAMM (MBG531-88)

Britain BS4592-1987

Australia AS1657-1992

Steel Standard: China GB700-88 / ASTM (A36) / BS4306 (43A)

Hot Dip Galvanizing Standard: China GB/T13912-92 / ASTM (A123) / BS729

Serrated Steel Grating Specification:

Series No.

Verticle Bar Spacing

Horizontal Bar Spacing

Specification of Supporting Flat Steel (Width X Thickness)

20¡Á3

25¡Á3

32¡Á3

40¡Á3

20¡Á5

25¡Á5

1

30

100

G203/30/100

G253/30/100

G323/30/100

G403/30/100

G205/30/100

G255/30/100

50

G203/30/50

G253/30/50

G323/30/50

G403/30/50

G205/30/50

G255/30/50

2

40

100

G203/40/100

G253/40/100

G323/40/100

G403/40/100

G205/40/100

G255/40/100

50

G203/40/50

G253/40/50

G323/40/50

G403/40/50

G205/40/50

G255/40/50

3

60

50

-

G253/60/50

G253/60/50

G403/60/50

G205/60/50

G255/60/50

Series No.

Verticle Bar Spacing

Horizontal Bar Spacing

Specification of Supporting Flat Steel (Width X Thickness)

32¡Á5

40¡Á5

45¡Á5

50¡Á5

55¡Á5

60¡Á5

1

30

100

G325/30/100

G405/30/100

G455/30/100

G505/30/100

G555/30/100

G605/30/100

50

G325/30/50

G405/30/50

G455/30/50

G505/30/50

G555/30/50

G605/30/50

2

40

100

G325/40/100

G405/40/100

G455/40/100

G505/40/100

G555/40/100

G605/40/100

50

G325/40/50

G405/40/50

G455/40/50

G505/40/50

G555/40/50

G605/40/50

3

60

50

G325/60/50

G405/60/50

G455/60/50

G505/60/50

G555/60/50

G605/60/50

Serrated Steel Grating Applications:

Power plant;

Chemical plant;

Oil Refinery;

Steel plant;

Machinery plant;

Paper-making factory;

Cement plant;

Civil engineering;

Wastewater treatment;

Pharmacy industry;

Food processing.

Serrated Steel Grating Feature: ​

  • Specifications: 19W4, Carbon Steel, Painted Black

  • Applications: Walkways, flooring, ramps, bridge flooring, trench and drainage covers, mezzanines, platforms, stair treads, etc.

  • Workability: Easy to Weld, Cut, Form and Machine

  • Mechanical Properties: Tensile = 58,000 +/-, Yield = 42,000 +/-

  • How is it Measured? bar thickness X bar height, Bearing bars run parallel to each other, the length of the panel.

The products enjoy the features of high strength, light structure, high bearing, convenience for loading and other properties.
