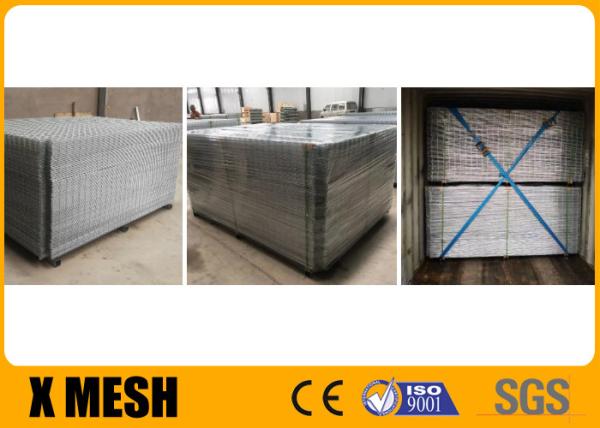

316 Grade Stainless Steel Welded Mesh 5mm Wire Diameter 2.4 X 1.2m Sheet Size
316 Grade Stainless Steel Welded Mesh 5mm Wire Diameter 2.4 X 1.2m Sheet Size
316 Grade Stainless Steel Welded Mesh 5mm Wire Diameter 2.4 X 1.2m Sheet Size
316 Grade Stainless Steel Welded Mesh 5mm Wire Diameter 2.4 X 1.2m Sheet Size
Specifications
Brand Name :
X MESH
Model Number :
X MESH-Stainless Steel Welded Mesh 009
Certification :
ISO9001:2015
Place of Origin :
Hebei P.R. China.
MOQ :
1000m2
Price :
USD1.85-2.35/m2
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
85000m2/week
Delivery Time :
5-7days
Packaging Details :
Wrapped with plastic film and pallet packing
Product Name :
Stainless Steel Welded Mesh
Weight :
12.4kgs
Grade :
316
Wire Diameter :
5mm
Mesh Size :
50 x 50mm
Length :
2400mm
Width :
1200mm
Application :
For Chemical Industrial
Packing :
Pallet/Wooden Case
Type :
Sheet
Description

316 Grade 5mm Wire Diameter 2.4 x 1.2m Sheet Size Stainless Steel Welded Mesh

Stainless Steel Welded Mesh Introduction:

Stainless steel welded mesh is manufactured by the longitudinal and transverse wires being resistance welded together.

We stock stainless mesh in both 304 and 316 grades. All our welded mesh rolls come in 30 metre lengths but we're happy to cut lengths to your exact requirements. We won't force you to purchase more than you need.

Product Name

Stainless Steel Welded Mesh

Weight

12.4kgs

Grade

316

Wire Diameter

5mm

Mesh Size

50 x 50mm

Length

2400mm

Width

1200mm

Application

For Chemical Industrial

Packing

Pallet/Wooden Case

Type

Sheet

Stainless Steel Welded Mesh Specification:

Grade

Length

Width

L/W Spacing

C/W Spacing

L/W Diam

C/W Diam

Weight (kg)

304

2.4m

1.2m

25mm

25mm

2.5mm

2.5mm

9.02

304

2.4m

1.2m

50mm

25mm

3.15mm

3.15mm

10.79

304

2.4m

1.2m

50mm

50mm

3.15mm

3.15mm

7.27

304

2.4m

1.2m

50mm

50mm

4mm

4mm

11.72

304

2.4m

1.2m

50mm

50mm

5mm

5mm

12.4

304

2.4m

1.2m

50mm

75mm

5mm

5mm

15.35

316

2.4m

1.2m

25mm

25mm

2.5mm

2.5mm

9.02

316

2.4m

1.2m

50mm

50mm

3.15mm

3.15mm

7.27

316

2.4m

1.2m

50mm

50mm

4mm

4mm

11.72

316

2.4m

1.2m

50mm

50mm

5mm

5mm

12.4

Stainless Steel Welded Mesh Feature:

✔️ Minimal maintenance

✔️ Strength

✔️ Long term life cycle and performance

✔️ Low environmental impact

Stainless Steel Welded Mesh Application:

Industrial Wire Mesh panels used for various applications such as guards, covers, trailers, cages and fences. Also available in Zinc Aluminium, please enquire. Minimun order quantity applies.

316 Grade Stainless Steel Welded Mesh 5mm Wire Diameter 2.4 X 1.2m Sheet Size

316 Grade Stainless Steel Welded Mesh 5mm Wire Diameter 2.4 X 1.2m Sheet Size

316 Grade Stainless Steel Welded Mesh 5mm Wire Diameter 2.4 X 1.2m Sheet Size

316 Grade Stainless Steel Welded Mesh 5mm Wire Diameter 2.4 X 1.2m Sheet Size

316 Grade Stainless Steel Welded Mesh 5mm Wire Diameter 2.4 X 1.2m Sheet Size
