Hot dipped galvanized military defensive barrier wall for flood control
Hot dipped galvanized military defensive barrier wall for flood control
Hot dipped galvanized military defensive barrier wall for flood control
Hot dipped galvanized military defensive barrier wall for flood control
Hot dipped galvanized military defensive barrier wall for flood control
Hot dipped galvanized military defensive barrier wall for flood control
Hot dipped galvanized military defensive barrier wall for flood control
Hot dipped galvanized military defensive barrier wall for flood control
Hot dipped galvanized military defensive barrier wall for flood control
Hot dipped galvanized military defensive barrier wall for flood control
Hot dipped galvanized military defensive barrier wall for flood control
Hot dipped galvanized military defensive barrier wall for flood control
Hot dipped galvanized military defensive barrier wall for flood control
Hot dipped galvanized military defensive barrier wall for flood control
Specifications
Brand Name :
NEW GABION
Model Number :
XH1688
Certification :
ISO9001, ISO14001
Place of Origin :
CHINA
MOQ :
10 set
Price :
USD 10-100/set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100 SET PER DAY
Packaging Details :
BULK or pallet
Material :
Steel wire
Surface treatment :
Hot dipped galvanized
Installation :
Easy
Enviroment :
Friendly
Advantage :
Anti-corrosion
Package :
Bulk or Pallet
Delivery :
Easy
Size :
Variouse
Customized :
Acceptable
Description

Military defensive barrier wall

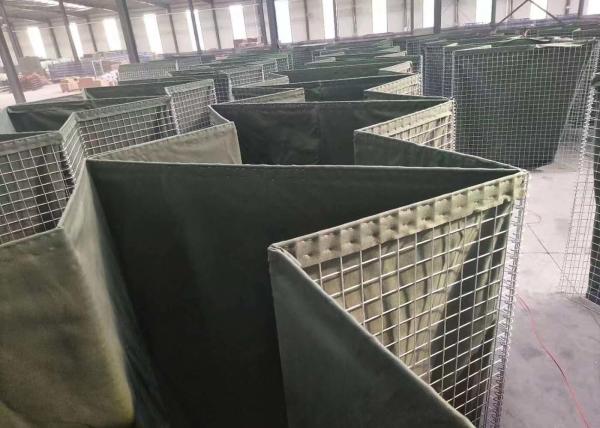

The military defensive barrier is a kind of modern welded gabion for Military fortification and Flood control.

Military defensive barrier is made of a welded steel wire mesh container and heavy duty fabric liner, Military defensive bastion can be used in separate cell or some cells joint together as a wall.

Hot dipped galvanized military defensive barrier wall for flood control

Hot dipped galvanized military defensive barrier wall for flood control

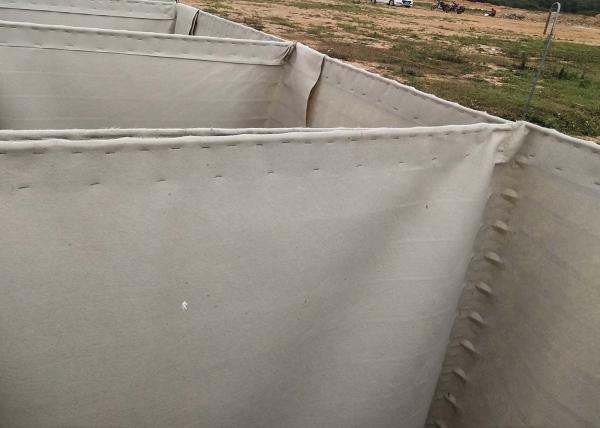

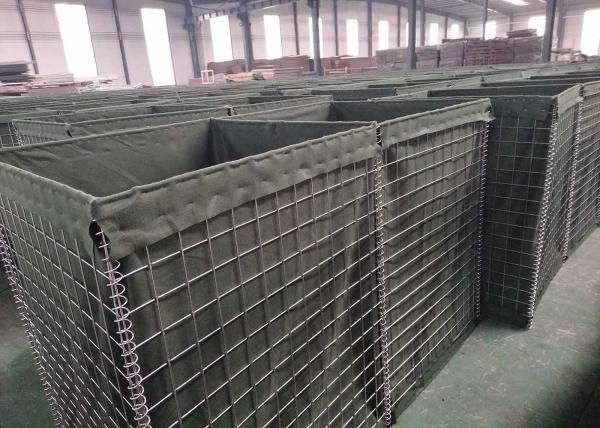

The material of militay defensive bastion wall is galvanized wire or Galfan wire, The wire will be welded as a cage of mesh, and then will be connected together by spiral binding wire to form a cage, which is lined with non-woven fabric.

Military defensive bastion basket can be used separated or several gabion cells can be connected together. The gabion cells are filled with stones or sand, and then assembled and stacked into a retaining wall like structure for use.

Hot dipped galvanized military defensive barrier wall for flood control

There are many size of military defensive barrier, customized is acceptable in our factory, following is the common specification.

Model

 Height(M) Width(M) Length(M) Number of cells
NG-1(Mil 1) 1.37 1.06 1 5+4=9 cells
NG-2(Mil 2) 0.61 0.61 1.21 2 cells
NG-3(Mil 3) 1 1 10 5+5=10 cells
NG-4(Mil 4) 1 1 10 5+5=10 cells
NG-5(Mil 5) 0.61 0.61 3.05 5 cells
NG-6(Mil 6) 1.68 0.61 3.05 5 cells
NG-7(Mil 7) 2.21 2.13 27.74 5+4+4=13 cells
NG-8(Mil 8) 1.37 1.22 10 4+5=9 cells
NG-9(Mil 9) 1 0.76 9.14 6+6=12 cells
NG-10(Mil 10) 2.12 1.52 30.5 5+5+5+5=20 cells

Hot dipped galvanized military defensive barrier wall for flood control

Advantages of Military defense barrier wall

  1. High quality low carbon steel make it Durable structure and transformer prevention
  2. Easy to assemble
  3. Customized any Designs you like

HESCO BARRIERS APPLICATIONS

Flood Control.

Most of People used as the bulwark all over the river, unfold it and filled with sand or earth, instad of sandbags, it is easy to operate and efficacious.

Defence

Most of used for protection, because the bullet can not penetrate it easily, it can prevent explosion, and not easy to destroied.

Hotel Pretection

A lot of Superior Hotel used as the protection wall outside, safety, and beautiful.

  • Hot dipped galvanized military defensive barrier wall for flood control

Hot dipped galvanized military defensive barrier wall for flood control

We can add some concertina wire on the top of defensive barrier wall to enhance the safe.

Hot dipped galvanized military defensive barrier wall for flood control

Package and delivery of defensive barrier

Hot dipped galvanized military defensive barrier wall for flood control
