Military defensive barrier wall hot dipped galvanized welded gabion
Military defensive barrier wall hot dipped galvanized welded gabion
Military defensive barrier wall hot dipped galvanized welded gabion
Military defensive barrier wall hot dipped galvanized welded gabion
Military defensive barrier wall hot dipped galvanized welded gabion
Military defensive barrier wall hot dipped galvanized welded gabion
Military defensive barrier wall hot dipped galvanized welded gabion
Military defensive barrier wall hot dipped galvanized welded gabion
Military defensive barrier wall hot dipped galvanized welded gabion
Military defensive barrier wall hot dipped galvanized welded gabion
Military defensive barrier wall hot dipped galvanized welded gabion
Military defensive barrier wall hot dipped galvanized welded gabion
Military defensive barrier wall hot dipped galvanized welded gabion
Military defensive barrier wall hot dipped galvanized welded gabion
Military defensive barrier wall hot dipped galvanized welded gabion
Military defensive barrier wall hot dipped galvanized welded gabion
Specifications
Brand Name :
NEW GABION
Model Number :
XH1688
Certification :
ISO9001, ISO14001
Place of Origin :
CHINA
MOQ :
10 set
Price :
USD 10-100/set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100 SET PER DAY
Packaging Details :
BULK or pallet
Material :
Steel wire
Surface treatment :
Hot dipped galvanized
Installation :
Easy
Enviroment :
Friendly
Advantage :
Anti-corrosion
Package :
Bulk or Pallet
Delivery :
Easy
Size :
Variouse
Customized :
Acceptable
Description

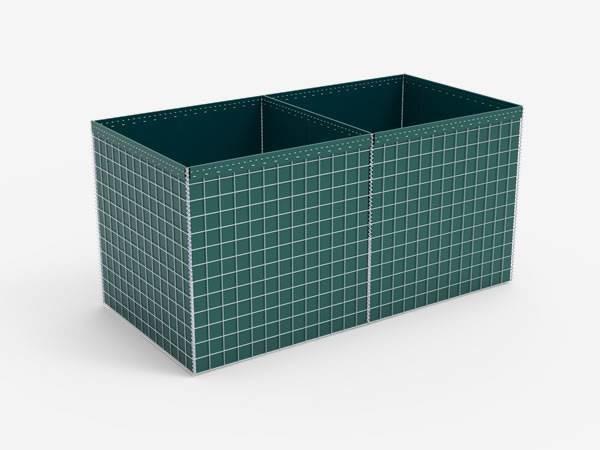

Military defensive barrier wall

The military defensive barrier is a kind of modern welded gabion for Military fortification and Flood control.

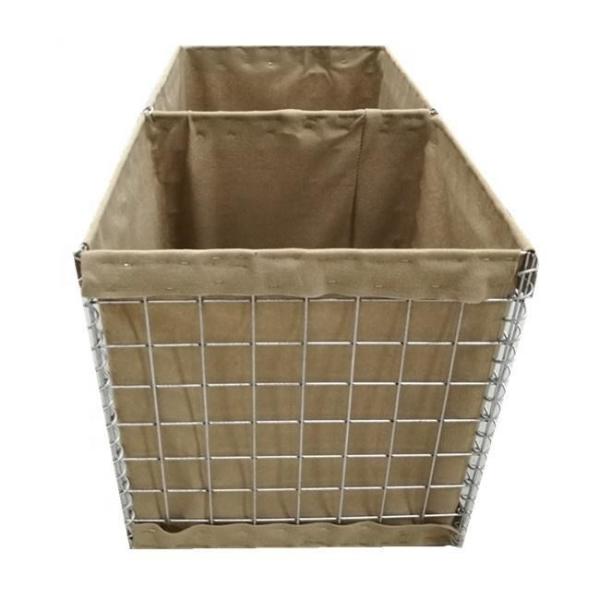

Military defensive barrier is made of a welded steel wire mesh container and heavy duty fabric liner, Military defensive barrier can be used in separate cell or some cells joint together as a wall.

Military defensive barrier wall hot dipped galvanized welded gabion

Military defensive barrier wall hot dipped galvanized welded gabion

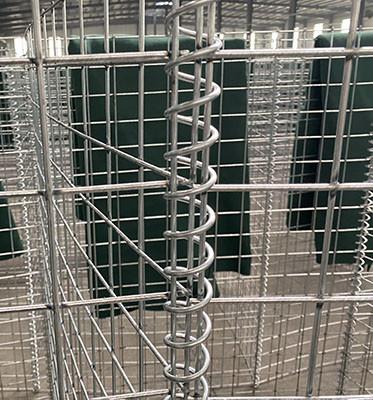

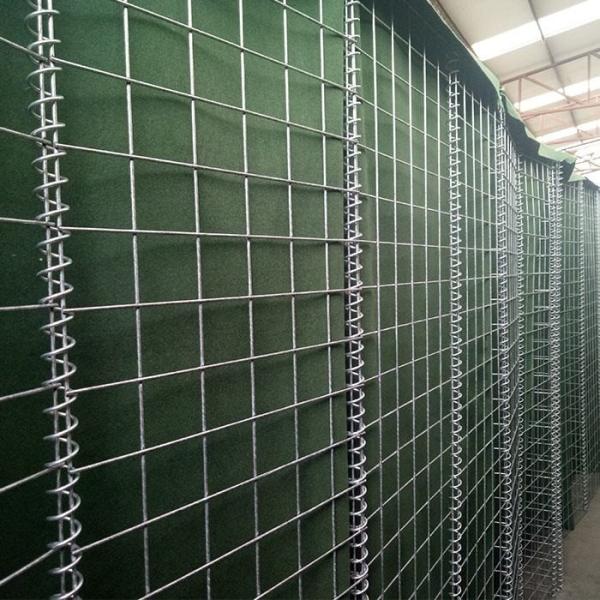

The material of militay defensive barrier wall is galvanized wire or Galfan wire, The wire will be welded as a cage of mesh, and then will be connected together by spiral binding wire to form a cage, which is lined with non-woven fabric.

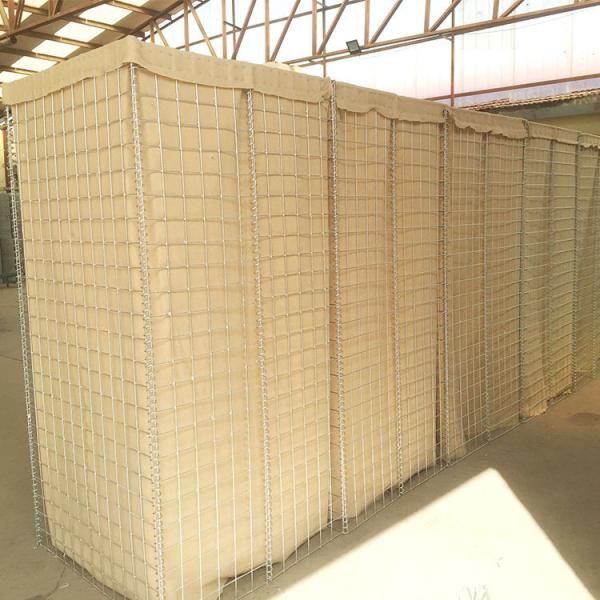

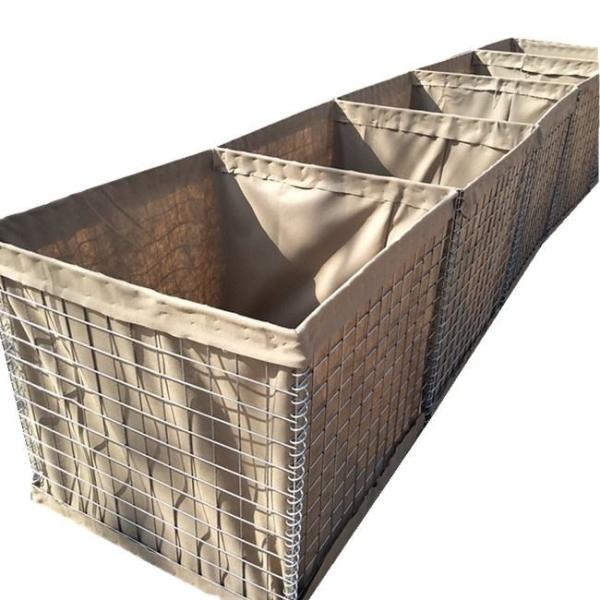

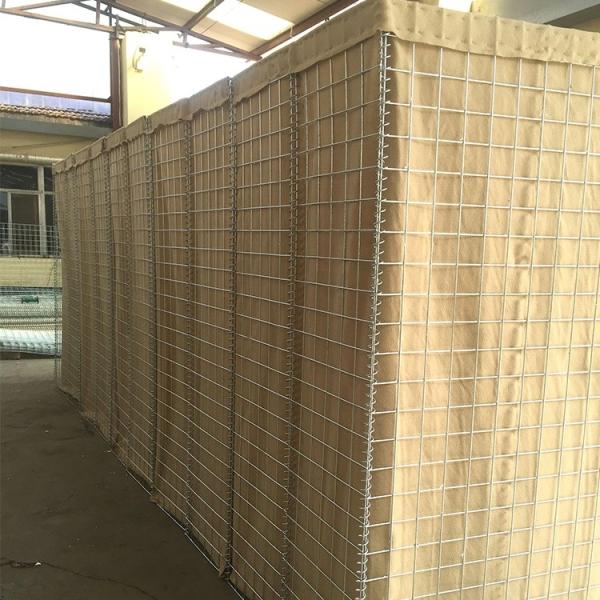

Military defensive barrier basket can be used separated or several gabion cells can be connected together. The gabion cells are filled with stones or sand, and then assembled and stacked into a retaining wall like structure for use.

Military defensive barrier wall hot dipped galvanized welded gabion

There are many size of military defensive barrier, customized is acceptable in our factory, following is the common specification.

Model

 Height(M) Width(M) Length(M) Number of cells
NG-1(Mil 1) 1.37 1.06 1 5+4=9 cells
NG-2(Mil 2) 0.61 0.61 1.21 2 cells
NG-3(Mil 3) 1 1 10 5+5=10 cells
NG-4(Mil 4) 1 1 10 5+5=10 cells
NG-5(Mil 5) 0.61 0.61 3.05 5 cells
NG-6(Mil 6) 1.68 0.61 3.05 5 cells
NG-7(Mil 7) 2.21 2.13 27.74 5+4+4=13 cells
NG-8(Mil 8) 1.37 1.22 10 4+5=9 cells
NG-9(Mil 9) 1 0.76 9.14 6+6=12 cells
NG-10(Mil 10) 2.12 1.52 30.5 5+5+5+5=20 cells

Military defensive barrier wall hot dipped galvanized welded gabion

Advantages of Military defense barrier wall

  • Easy to handle and install
    Defensive Barrier provides the easiest deploy methods -just unfold it and fill it using minimal manpower or commonlyavailable equipment. Previously, sandbag barrier is considered a slow undertaking as a person can only fll about 20sandbags per hour. Yet our Defensive Barrier do ten times the work.
​
  • High strength and impact resistance
  • Once flled with soil, sand or gravel, Defensive Barrier forms a solid and strong barrier with exceptional strength andstructural integrity to protect personnel and equipment from enemy fire. For example.Two feet thick Army Defensive Barrier can be used to stop rifle bullets and shell fragmentsFour feet thick Army Defensive Barrier can prevent most car bombs Five feet thick Army Defensive Barrier is ideal for preventing penetration and explosion fragments from rocketpropelled grenade.

Military defensive barrier wall hot dipped galvanized welded gabion

Military defensive barrier wall hot dipped galvanized welded gabion

We can add some concertina wire on the top of defensive barrier wall to enhance the safe.

Military defensive barrier wall hot dipped galvanized welded gabion

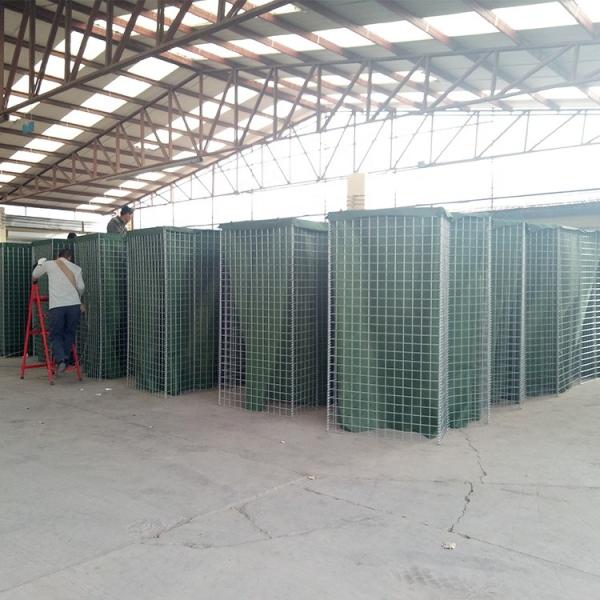

Package and delivery of defensive barrier

Military defensive barrier wall hot dipped galvanized welded gabion
