Military defensive bastion wall

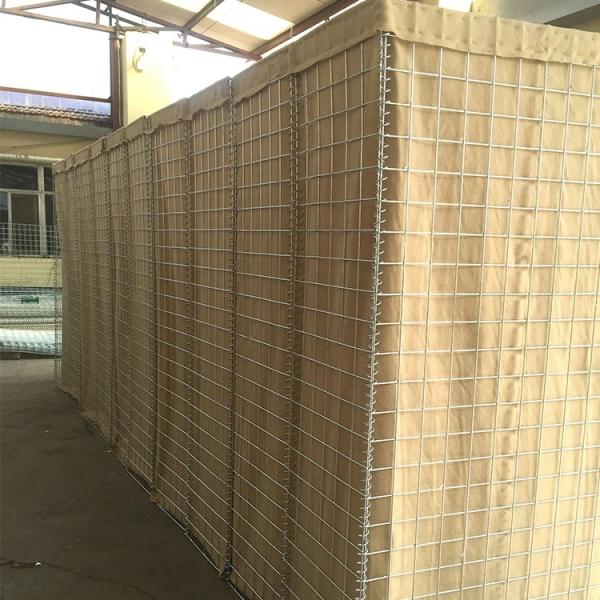

Defensive barrier is a prefabricated,multi-cellular system, made of zinc coated steel welded mesh and lined with non-woven geotextile. Units can be extended and joined using the provided joining pins. It is easy installed with using minimal manpower and commonly available equipment. After extended, it is filled into sand,stone,like a defence wall or bunker,it is widely used for fortification and flood control.

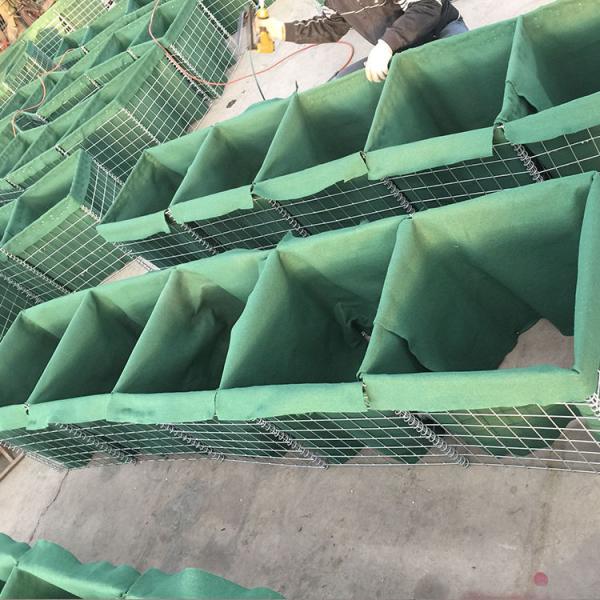

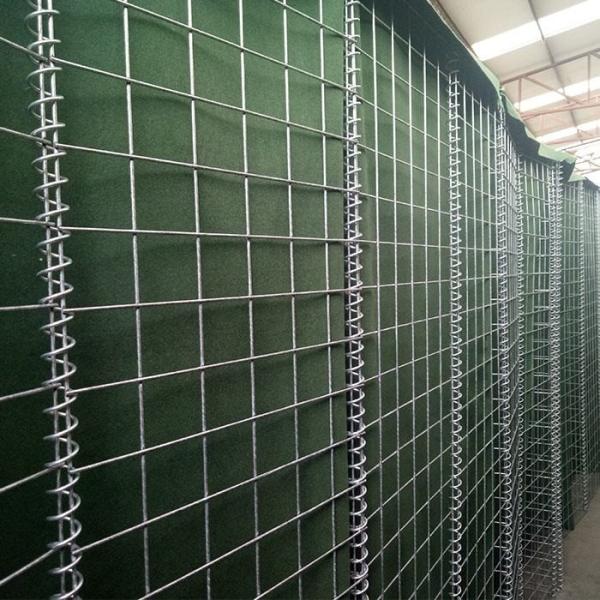

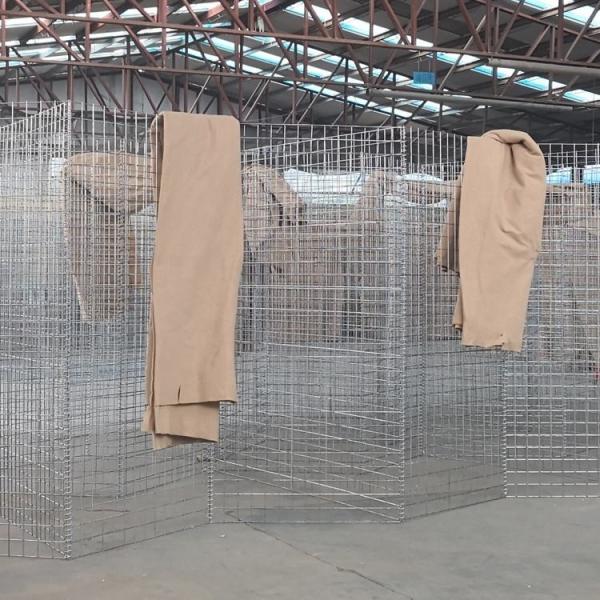

The material of militay defensive bastion wall is galvanized wire or Galfan wire, The wire will be welded as a cage of mesh, and then will be connected together by spiral binding wire to form a cage, which is lined with non-woven fabric.

Military defensive bastion basket can be used separated or several gabion cells can be connected together. The gabion cells are filled with stones or sand, and then assembled and stacked into a retaining wall like structure for use.

Specification of hesco defensive barrier

There are many size of military defensive barrier, customized is acceptable in our factory, following is the common specification.

Material: galvanized wire, galfan coated wire.

Wire diameter: 4 mm - 5 mm.

Joining pins diameter: 4 mm.

Mesh opening: 75mm x 75mm,76.2 x 76.2mm, 80 x 80mm,100 x 100mm.

Geotextile: 2 mm heavy duty non-woven polypropylene.

Military Barrier Panel size: 2.21 x 2.13m, 1.37 x 1.06m, 0.61 x 0.61m, also can be customized.

Advantages of Military defense barrier wall

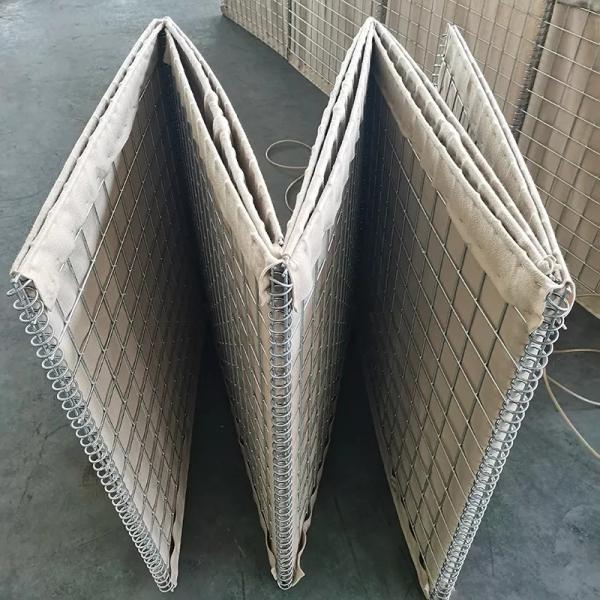

• 1. The Hesco defensive barrier can be folded, which is convenient for transportation

  2. The Hesco gabion is very convenient to use and easy to operate. As long as you open the gabion net, put it on the ground, connect it with a pin, and install sand.

  3. The retaining wall can be quickly built with Hesco gabion, which can not only load stones, but also sand. It can be operated manually or mechanically, such as forklifts, excavators, etc.

  4. The Hesco gabion is very environmentally friendly and can be reused.

  5. The non-woven fabric inside the gabion net has UV protection function.

We can add some concertina wire on the top of defensive barrier wall to enhance the safe.
