80 Mesh 100 Mesh 120 Mesh Stainless Steel Extruder Screen Customized
80 Mesh 100 Mesh 120 Mesh Stainless Steel Extruder Screen Customized
80 Mesh 100 Mesh 120 Mesh Stainless Steel Extruder Screen Customized
80 Mesh 100 Mesh 120 Mesh Stainless Steel Extruder Screen Customized
Specifications
Brand Name :
XR
Model Number :
FS-036
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 Roll
Price :
Be Negotiation
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
30000 Pcs Per Week
Delivery Time :
5-8 Days After Get The Payment
Packaging Details :
Plastic Film And Then Wooden Box
Product Name :
Stainless Steel Extruder Screen 80 Mesh 100 Mesh 120 Mes
Type :
Extruder Screen
Usage :
For Continuous Screen Changers
Material :
Stainless Steel
Product Length :
10 M/roll And Special Orders Are Accepted
Characteristics :
Precise Fitting Filter Elements
Feature :
Corrosion Resistance
Size :
Customized
Description

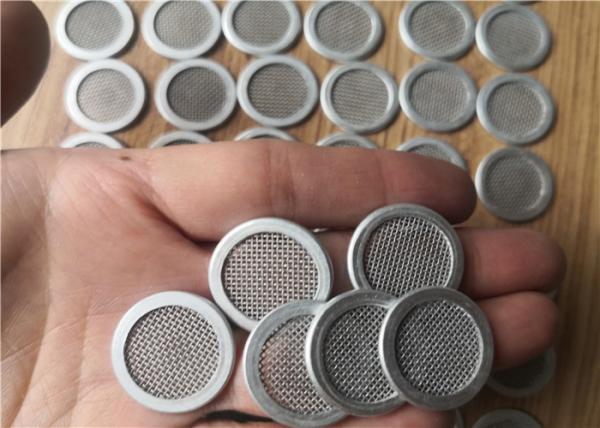

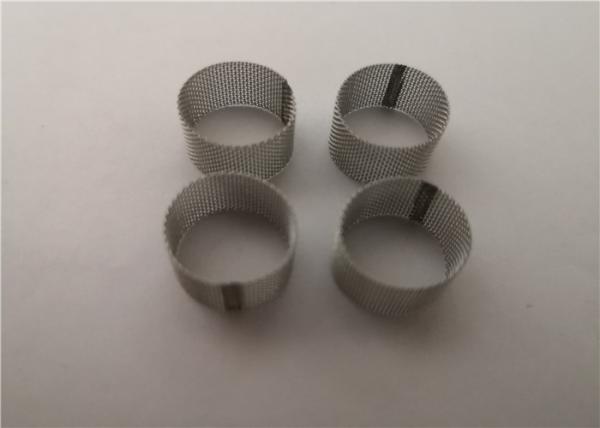

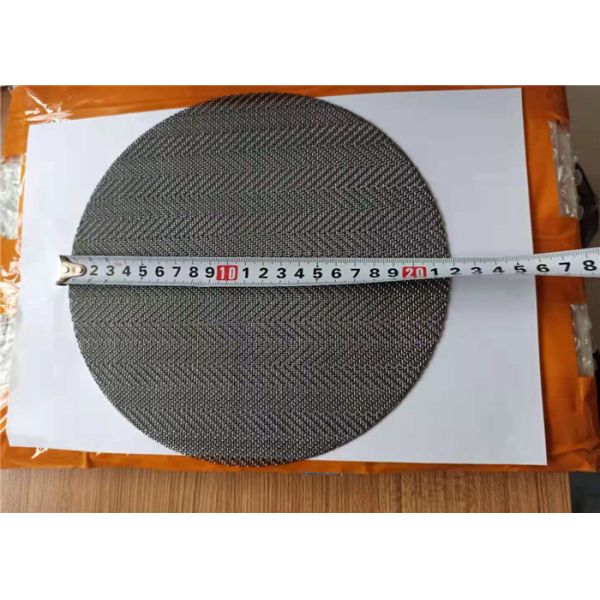

Stainless Steel Extruder Screen 80 Mesh 100 Mesh 120 Mesh Size Could be Customized

Product Name Stainless Steel Extruder Screen 80 Mesh 100 Mesh 120 Mesh
Material Stainless Steel
Mesh Size 80Mesh 100Mesh 120Mesh
Shape Circle,Rectangle,Could be customized
Layer Single or multilayers
Weave Type Plain, dutch & twill

Stainless Steel Extruder Screen Instruction
Code Mesh/Inch Wire Diameter (mm) Aperture (mm) Open Area (%) Weight (kg/m2)
SSES-1 200 × 200 0.05 0.077 60.6 0.24
SSES-2 200 × 200 0.06 0.067 52.7 0.35
SSES-3 250 × 250 0.03 0.072 49.8 0.11
SSES-4 250 × 250 0.04 0.062 36.9 0.2
SSES-5 270 × 270 0.035 0.059 60 0.16
SSES-6 270 × 270 0.04 0.054 57.4 0.21
SSES-7 300 × 300 0.03 0.055 57 0.13
SSES-8 325 × 325 0.035 0.0432 55.3 0.2
SSES-9 400 × 400 0.03 0.0335 52.7 0.18
SSES-10 500 × 500 0.025 0.0258 50.7 0.15
SSES-11 635 × 635 0.02 0.02 55 0.1

Stainless Steel Extruder Screen Benifits

1. Alkali and acid resistance.
2. Super percision.Uniform wire diameter and aperture with extremely low difference.
3. Easy to intall and clean.
4. The details data can be customized,such as wire diameter,aperture,thickness and so on.

Stainless Steel Extruder Screen Features

1. Not deformation
2. High-temperature resistance
3. Corrosion resistance
4. The advantages of a flexible network, has excellent filtering performance
5. High hardness
6. Smooth surface

Extruder Screen Application

  • Plastic and rubber industry.
  • PVC film.
  • Food industry.
  • Chemical industry.

80 Mesh 100 Mesh 120 Mesh Stainless Steel Extruder Screen Customized
