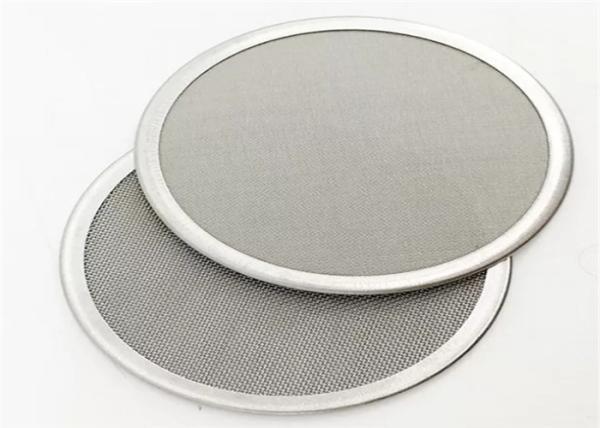

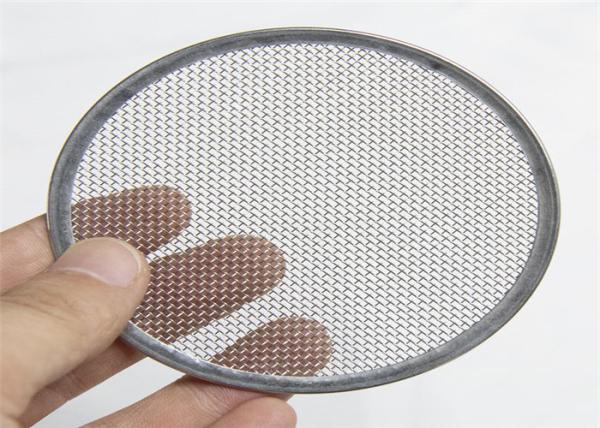

Porous Round Grade 304l Wire Mesh Filter Disc
Porous Round Grade 304l Wire Mesh Filter Disc
Porous Round Grade 304l Wire Mesh Filter Disc
Porous Round Grade 304l Wire Mesh Filter Disc
Specifications
Brand Name :
XR
Model Number :
FS-030
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 Roll
Price :
Be Negotiation
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
30000 Pcs Per Week
Delivery Time :
5-8 Days After Get The Payment
Packaging Details :
Plastic Film And Then Wooden Box
Product Name :
Stainless Steel Filter Screen
Type :
Filter Screen
Key Words :
Continuous Belt Screens
Usage :
For Continuous Screen Changers
Product Length :
10 M/roll And Special Orders Are Accepted
Material :
Stainless Steel
Characteristics :
Precise Fitting Filter Elements
Size :
Customized
Feature :
Corrosion Resistance
Belt Width :
10 Cm, 12 Cm, 15Cm,
Description

304 Stainless Steel Wire Mesh Sheet Porous Round Metal Oil Filter Disc Filter

Stainless Steel Mesh Filter Belt Specification

Popular Sizes of Continuous Belts Filter
Mesh Size (warp/inch × weft/inch) Wire diameter (mm) (warp × weft) The fineness of filtering (micron) Weight (kg/m2) Width (mm) *
48 × 10 0.5 × 0.5 400 3.63 40–210
63 × 18 0.4 × 0.6 220 4.14 40–210
72 × 15 0.45 × 0.55 250 4.78 40–210
100 × 16 0.35 × 0.45 190 3.87 40–210
107 × 20 0.24 × 0.60 210 3.34 40–210
120 × 16 0.35 × 0.45 180 4.49 40–210
132 × 17 0.32 × 0.45 170 4.24 40–210
152 × 24 0.27 × 0.4 160 3.73 40–210
160 × 17 0.27 × 0.45 160 2.02 40–210
170 × 18 0.27 ×0.45 160 4.01 40–210
171 × 46 0.15 × 0.30 130 2.00 40–210
180 × 20 0.27 × 0.45 170 4.29 40–210
200 × 40 0.17 × 0.27 120 2.17 40–210
240 × 40 0.15 × 0.25 70 1.98 40–210
260 × 40 0.15 × 0.27 55 2.19 40–210
290 × 76 0.09 × 0.19 40 1.27 40–210
300 × 40 0.15 × 0.25 50 2.31 40–210
300 × 80 0.15 × 0.2 35 2.49 40–210
Special specifications can be customized upon customers' requirements
* Maximum width is 500 mm.

Stainless Steel Mesh Filter Belt Description

PFM offers a belt or ribbon type stainless steel wire mesh filter screen for plastic extrusion in replacement of conventional extruder screen packs. The woven mesh screen is Reverse Dutch Twill Weave Wire Mesh supplied in belt or ribbon type or band. Woven from quality Stainless steel 304, 304L, 316, 316L, etc stainless steel fine wire. Designed to work with automatic continuous screen changers used on the plastic extruders.

Stainless Steel Mesh Filter Belt Features

  • Smooth surface,
  • High hardness,
  • Network continuously,
  • Not deformation,
  • High-temperature resistance,
  • Corrosion resistance,
  • The advantages of a flexible network, has excellent filtering performance.

Stainless Steel Mesh Filter Belt Application

​

Suitable for Austrian Lenzing equipment and Germany, Japan and other countries of the wire drawing machine, stretch film machine, coating machine filters,
Used in plastic woven bag, plastic film industries, etc,
Widely used in aerospace, petroleum, chemical, chemical fiber, machinery, plastic products, research and plastic melt filter, molding machine belt type filter conveyor industries.

Porous Round Grade 304l Wire Mesh Filter DiscPorous Round Grade 304l Wire Mesh Filter Disc
