70x120mm X Tend Cable Mesh
70x120mm X Tend Cable Mesh
70x120mm X Tend Cable Mesh
70x120mm X Tend Cable Mesh
Specifications
Brand Name :
XR
Model Number :
WRM
Certification :
CE
Place of Origin :
CHINA
MOQ :
5 Square Meters
Price :
Negotiated
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
500 Square Meters Per Week
Delivery Time :
7-10 Days After Get The Payment
Packaging Details :
Package film for each piece,Several pieces packed in 1 carton
Cable Net Diameter :
1.5Mm
Product Name :
Ss304 Ss316 Wire Rope Mesh
Mesh Eye Size :
70Mmx120Mm
Feature :
Hand-Woven
Length :
Customized
Mesh Type :
Ferrule & Knitted Wire Rope Mesh
Shipping :
By Air Or By Express(DHL,TNT,EMS,FedEx)
Material :
SS304, SS316, SS316L
Description

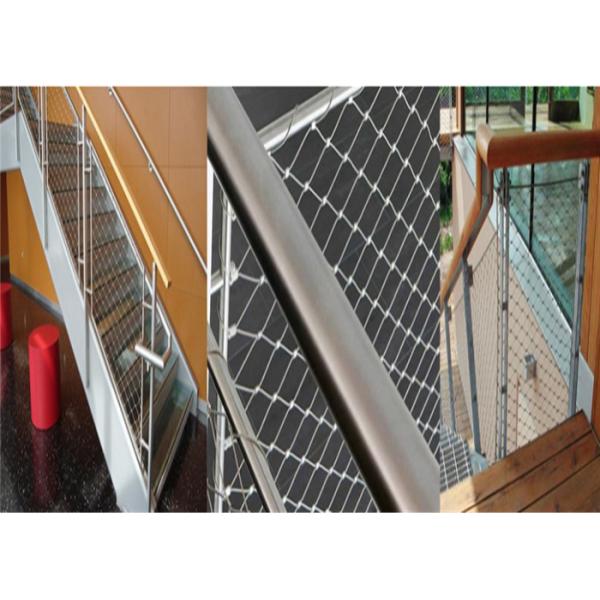

1.5 Mm Thickness 70Mmx120Mm Opening X-Tend Cable Mesh To Suit Balustrade And Handrail Infill

X-Tend Cable Mesh Description

X-tend stainless steel wire rope mesh is custom manufactured to suit your balustrade , railing , architecture or barrier application ;

X-tend cable wire mesh can be applied in either a vertical or horizontal direction,again dependent on the design ;

X-tend wire rope mesh finished in diamond mesh style when it is stretched at 60 degree angle
Material high grade stainless steel 316 cabe wire
Construction 7 x 7
Mesh Eye Size Wide 60 MM x High 104 MM
Mesh Type Ferruled
Mesh Orientation Horizontal , Vertical
Application Balustrade , Railing , Staircase

70x120mm X Tend Cable Mesh

X-Tend Cable Rope Mesh Specification

Wire Rope Mesh Construction Wire Rope Mesh Diameter Wire Rope Mesh Opening
7x19 1/8'' 120x208mm
7x19 1/8'' 100x173mm
7x19 1/8'' 90x156mm
7x7 3/32'' 100x173mm
7x7 3/32'' 90x156mm
7x7 3/32'' 100x173mm
7x7 3/32'' 90x156mm
7x7 5/64'' 80x139mm
7x7 5/64'' 70x121mm
7x7 5/64'' 80x139mm
7x7 5/64'' 70x121mm
7x7 1/16'' 60x104mm
7x7 1/16'' 51x87mm
7x7 1/16'' 70x121mm
7x7 1/16'' 51x87mm
7x7 3/64'' 80x139mm
7x7 3/64'' 70x121mm
7x7 3/64'' 60x104mm
7x7 3/64'' 50x87mm

X-Tend Cable Rope Mesh Application

  1. Building Facade screens,
  2. Green wall systems
  3. Balustrade & Railing
  4. Bird protection netting,
  5. Security platform fence. Isolate fence,Garden fence,
  6. Animal enclosures in zoo

X-Tend Cable Rope Mesh Characteristics

  1. The raw materials are high-quality stainless steel 304, 304L, 316, 316L stainless steel wire rope and stainless steel buckle.

  2. Green and environmentally friendly products

  3. Never rust, fatigue resistance, impact resistance and large breaking force, the overall structure is sturdy and durable, the landscape effect is good, the appearance is luxurious and the form is novel, which is itself a large landscape.

  4. The net surface is flat, light weight, high strength, good flexibility, impact resistance, strong cushioning force, large breaking force, and strong and durable overall structure.

  5. There are no restrictions on design. Designers can design various graphics and structures at will. Meets the requirements of designers and users

  6. Easy installation, can be used on any structure. It will not change color for a long time, it is beautiful and long-lasting, and no maintenance is needed.

  8. 70x120mm X Tend Cable Mesh70x120mm X Tend Cable Mesh
