25x25mm 2.0mm Dia Cable Webnet For Protection
25x25mm 2.0mm Dia Cable Webnet For Protection
25x25mm 2.0mm Dia Cable Webnet For Protection
25x25mm 2.0mm Dia Cable Webnet For Protection
Specifications
Brand Name :
XR
Model Number :
WRM
Certification :
CE
Place of Origin :
CHINA
MOQ :
5 Square Meters
Price :
Negotiated
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
500 Square Meters Per Week
Delivery Time :
7-10 Days After Get The Payment
Packaging Details :
Package film for each piece,Several pieces packed in 1 carton
Product Name :
Wire Rope Mesh Cable Webnet
Cable Net Diameter :
2.0Mm
Material :
SS304, SS316, SS316L
Feature :
Handwoven
Mesh Eye Size :
25x25Mm -100 X100 Mm Or Bigger
Mesh Type :
Ferrule Wire Rope Mesh
Shipping :
By Air Or By Express(DHL,TNT,EMS,FedEx)
Length :
Customized
Description

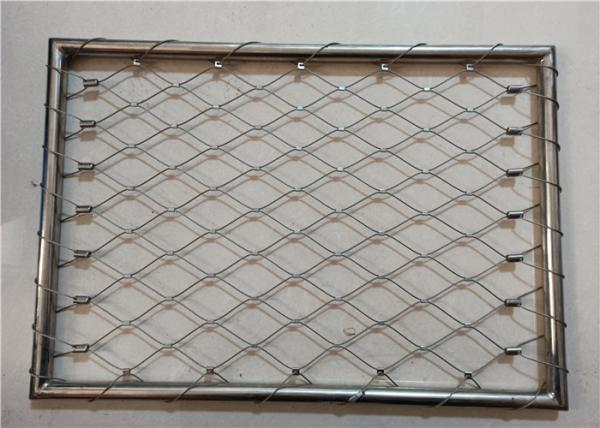

2.0Mm Stainless Steel Wire Rope Mesh Cable Webnet For Protection

Stainless Steel Wire Rope Mesh Cable Webnet For Protection Specification:

Wire diameter : 1.5mm,1.6mm,2.0mm,2.4mm,3.2mm(Customized)

Mesh Opening : 25x25mm,30x30mm,60x60mm,80x80mm,120x120mm(Customized)

Mesh Size : Customized

Applications : Railing or blaustrade mesh,protection mesh,zoo mesh,animal cages,decorative mesh etc.

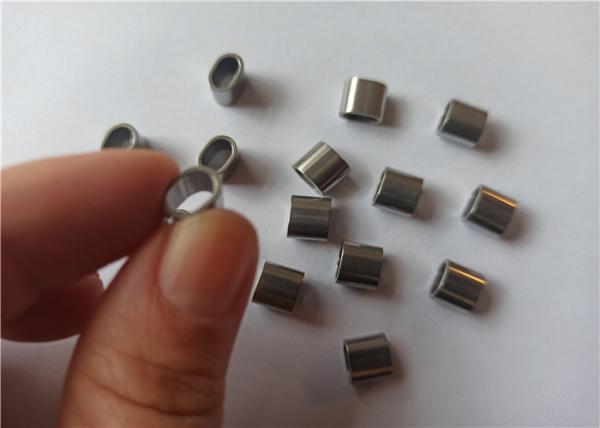

Different Ends Of the stainless steel wire rope mesh:

25x25mm 2.0mm Dia Cable Webnet For Protection

Stainless Steel Wire Rope Mesh Cable Webnet Details

Material Stainless Steel 304 316 316L
Wire Rope Diameter 1.2mm,1.5mm,1.6mm,2.0mm,2.4mm.3.2mm,4.0mm are popular(customized)
Mesh Opeing Size 1-1/2''x1-1/2'', 2''x2'',3''x3'',4''x4'',4.75''x4.75'' are popular(customized)
Wire Rope Mesh Quality Geade A
Usage Safety mesh,architectural mesh,zoo Mesh,Animal Enclosure,decoration mesh etc.
Rope Construction 7x7,7x19,1x19

Stainless Steel Wire Rope Mesh Safety Mesh Available Specifications

Stainless Steel Wire Rope Mesh Safety Protection Mesh
Rope Diameter 1.2mm 1.6mm 2.0mm 2.4mm 3.2mm
Structure 7x7 7x7 7x7 7x7 7x19
Single Wire TS(N/mm2) 1770 1770 1770 1770 1570

Stainless Steel Wire Rope Mesh Cable Webnet Specifications Sheet

Hole Size

(Opening)

1.2MM(3/64)

(7 x 7 )

1.6MM(1/16)

(7 x 7 )

2.0MM(5/64)

(7 x 7 )

2.4MM(3/32)

(7 x 7 )

3.2MM(1/8)

(7 x 19 )
20 x 35mm F-1235
25 x 42mm F-1225 F-1625
30 x 52mm F-1230 F-1630 F-2030
35 x 60mm F-1235 F-1635 F-2035
38 x 66mm F-1238 F-1638 F-2038 F-2438
40 x 69mm F-1240 F-1640 F-2040 F-2440 F-3040
50 x 86mm F-1250 F-1650 F-2050 F-2450 F-3050
60 x 104mm F-1260 F-1660 F-2060 F-2460 F-3060
70 x 120mm F-1270 F-1670 F-2070 F-2470 F-3070
76 x 131mm F-1276 F-1676 F-2076 F-2476 F-3076
80 x 138mm F-1280 F-1680 F-2080 F-2480 F-3080
90 x 154mm F-1290 F-1690 F-2090 F-2490 F-3090
100 x 173mm F-12100 F-16100 F-20100 F-24100 F-30100
120 x 206mm F-12120 F-16120 F-20120 F-24120 F-30120


Material of Cable Webnet : Stainless steel 304,304L,316,306L etc.

SS304 (%) C:≤0.07, Si :≤1.0, Mn :≤2.0, Cr :17.0-19.0, Ni :8.0-11.0, S :≤0.03, P :≤0.035
SS316 (%) C:≤0.08, Si:≤1.00, Mn:≤2.00, P≤:0.035, S:≤0.03, Ni:10.0-14.0, Cr:16.0-18.5
SS316L (%)C:≤0.03, Si:≤1.00, Mn:≤2.00, P:≤0.045, S:≤0.030, Cr:16.0～18.0, Ni:12.0～15.0

Stainless Steel Wire Rope Mesh is custom manufactured to in widths and lengths to suit your architectural application. Finished diamond mesh style when it is stretched at 60 degree angle ; Diagonal and irregular shapes can also be supplied. Mesh can be applied in either a vertical or horizontal direction, again dependent on the balustrade or railing design and the required aesthetics.

Stainless Steel Wire Rope Mesh Safety Protection Characters

1

Building Facade screens,
2

Green wall systems
3

Balustrade & Railing
4

Bird protection netting,
5

Security platform fence. Isolate fence,Garden fence,
6

Animal enclosures in zoo

Stainless Steel Wire Rope Mesh Cable Webnet Benifits

316 "marine grade" stainless steel
Innovative, highly durable product
Black anodised or galvanised finish options
Great prices
Professional, friendly service
Pliable, high strength mesh system
Wide range of sizes available
UV and weather resistant
Fast turnaround

25x25mm 2.0mm Dia Cable Webnet For Protection25x25mm 2.0mm Dia Cable Webnet For Protection
